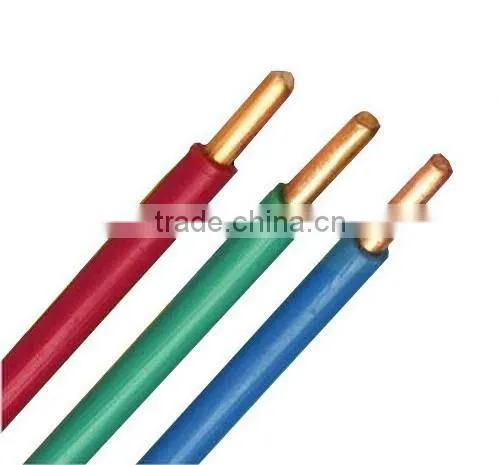

Electric Solid Copper Cable Indoor Installation Solid Cable
US$ 0.5 - 80
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
San Heng
Model Number:
solid cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or as your request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC SINGLE Electric Solid Copper Wire CHINA SUPPLIERUS$ 0.5 - 80MOQ: 1 Kilometer -
25mm2 35mm2 50mm2 70mm2 Rubber Sheath Flexible Welding CableUS$ 0.1 - 10MOQ: 1 Kilometer
-
PVC Insulated PVC Sheath 3 Core CableUS$ 0.1 - 1MOQ: 5 Kilometers
-
PVC Insulated PVC Sheath Flat Cable H05VVH2-RUS$ 0.1 - 1MOQ: 5 Kilometers
-
1.5mm 2.5mm 4mm 6mm 10mm Flexible Cable WireUS$ 1 - 80MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
San Heng
Model Number
solid cable
Type
Insulated
Application
Heating
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Electric solid copper cable indoor installation solid cable
Electrical Wire H05V-K & H07V-K
Characteristics:
| Operating temperature: | +5°C to +70°C on the Conductor |
| Rated voltage: | H05V-K: 300/500 V H07V-K: 450/750 V |
| Max. temperature of short circuit: | 160° C on the conductor 140° C on the conductor / size>300 mm2 |
| Min. bending radius: | Fixed installation: 4x outer diameter |
Specifications Data:
| Section | Max diam. of conductor | Insulation thickness* |
Outer |
Max resistance at 20°C |
Cable weight |
| mm² | mm | mm | mm | ohms/km | kg/km |
H05V-K | |||||
| 0,5 | 0,21 | 0,6 | 2,1 | 39,0 | 9 |
| 0,75 | 0,21 | 0,6 | 2,3 | 26,0 | 12 |
| 1 | 0,21 | 0,6 | 2,5 | 19,5 | 15 |
H07V-K | |||||
| 1,5 | 0,26 | 0,7 | 2,9 | 13,3 | 20 |
| 2,5 | 0,26 | 0,8 | 3,6 | 7,98 | 30 |
| 4 | 0,31 | 0,8 | 4,1 | 4,95 | 45 |
| 6 | 0,31 | 0,8 | 4,7 | 3,30 | 65 |
| 10 | 0,41 | 1,0 | 6,1 | 1,91 | 110 |
| 16 | 0,41 | 1,0 | 7,1 | 1,21 | 160 |
| 25 | 0,41 | 1,2 | 8,7 | 0,780 | 250 |
| 35 | 0,41 | 1,2 | 9,9 | 0,554 | 340 |
| 50 | 0,41 | 1,4 | 11,6 | 0,386 | 480 |
| 70 | 0,51 | 1,4 | 13,3 | 0,272 | 670 |
| 95 | 0,51 | 1,6 | 15,2 | 0,206 | 890 |
| 120 | 0,51 | 1,6 | 17,0 | 0,161 | 1140 |
| 150 | 0,51 | 1,8 | 18,9 | 0,129 | 1410 |
| 185 | 0,51 | 2,0 | 21,0 | 0,106 | 1710 |
| 240 | 0,51 | 2,2 | 23,9 | 0,0801 | 2270 |

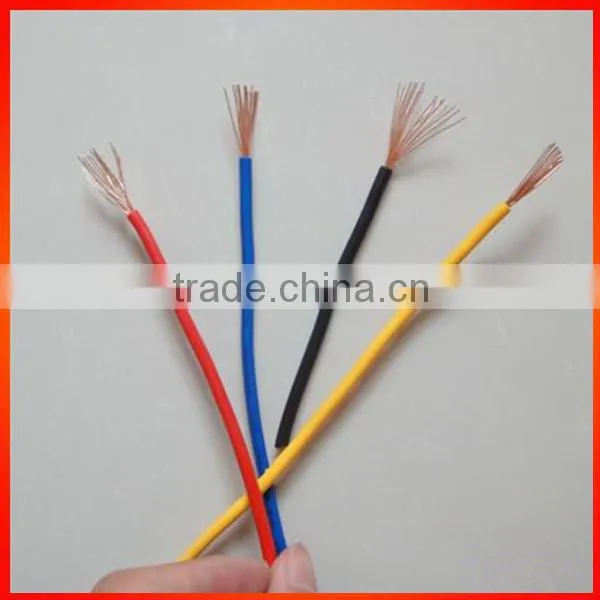

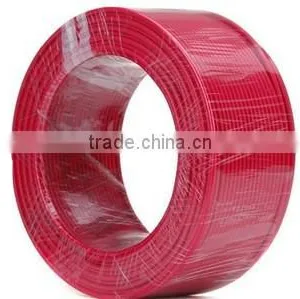

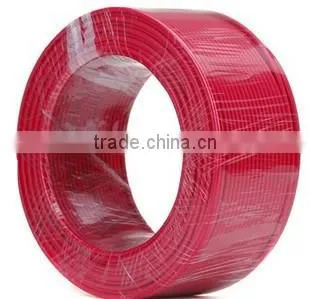

Product pictures
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !
contacts
Dear sir or madam
This is cherry. If you have any problem , please feel free to contact me. Tell us your request ! Let me know your needs ! RIGHT NOW !! ACTION ! please !
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2000
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
