pvc wire roll coil type material building application wire cable

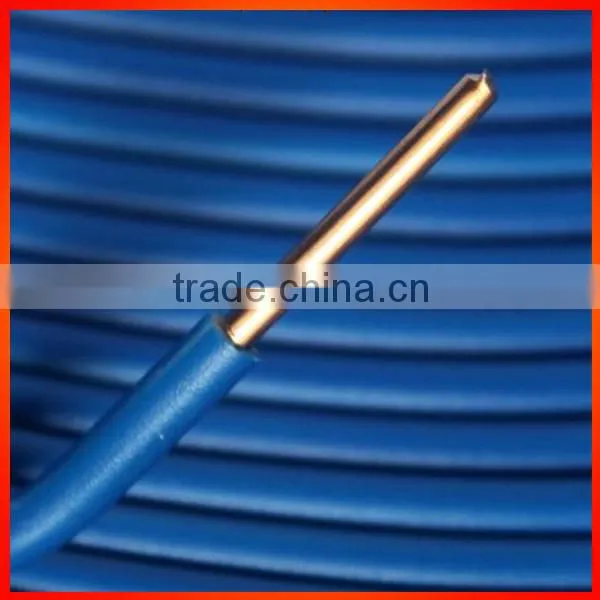

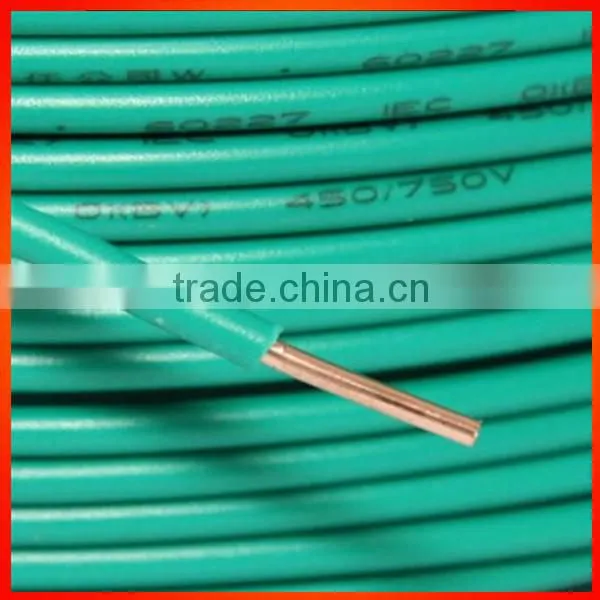

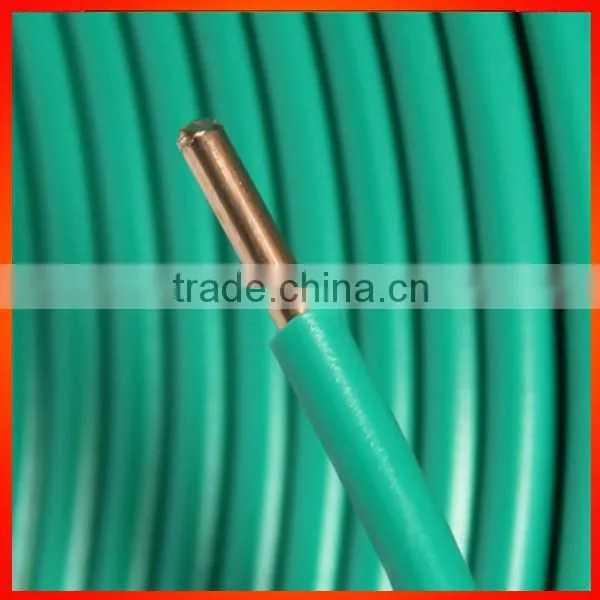

1. Cable is made by single soild copper wire,PVC insulation
2. Conductor: 100% pure copper
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C

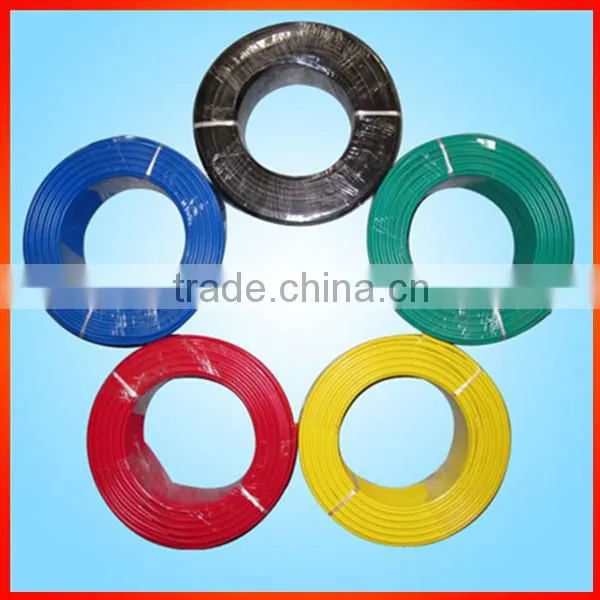

5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house wiring, factory wiring, switching panel
distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date:
single core pvc insulation electrical wire 350/750V | |||
Nominal Section(mm2) |
No.Dia. of Core(mm) |
Max outer diameter(mm) |
Conductor resistance at 20C(≤Ωkm) |
0.5 |
1/0.8 |
2.4 |
36.0 |
0.75(A) |
1/0.97 |
2.6 |
24.5 |
0.75(B) |
7/0.37 |
2.8 |
24.5 |
1(A) |
1/1.13 |
2.8 |
18.1 |
1(B) |
7/0.43 |
3.0 |
18.1 |
BV 450/750V | |||
1.5(A) |
1/1.38 |
3.3 |
- |
1.5(B) |
7/0.52 |
3.5 |
- |
2.5(A) |
1/1.78 |
3.9 |
11.8 |
2.5(B) |
7/0.68 |
4.2 |
11.8 |
4(A) |
1/2.25 |
4.4 |
7.39 |
4(B) |
7/0.85 |
4.8 |
7.39 |
6(A) |
7/0.85 |
4.8 |
4.91 |
6(B) |
7/1.04 |
5.4 |
4.91 |
10 |
7/1.35 |
7.0 |
3.08 |
16 |
7/1.70 |
8.0 |
1.91 |
25 |
27/2.04 |
10.0 |
1.20 |
35 |
27/2.52 |
11.5 |
0.868 |
50 |
19/1.78 |
13.0 |
0.641 |
70 |
19/2.14 |
15.0 |
0.443 |
95 |
19/2.52 |
17.5 |
0.320 |
120 |
37/2.03 |
19.0 |
0.253 |
150 |
37/2.25 |
21.0 |
0.206 |
185 |
37/2.52 |
23.5 |
0.164 |
240 |
61/2.25 |
26.5 |
0.125 |
300 |
61/2.52 |
29.5 |
0.100 |
