Help CenterSINGLE STRAND Electric Solid Copper Wire CHINA Manufacturer
Related Products
-
Energy Wire/Copper/PVC Insulated Electrical Wires 450/750VUS$ 0.34 - 50MOQ: 1000 Meters -
10mm 3 Core Flexible CableUS$ 0.1 - 4.22MOQ: 1 Kilometer
-
BVVB Hot Sale 300/500v Pvc Insulated and Sheathed Electrical Flat WireUS$ 0.1 - 0.45MOQ: 5000 Meters
-
2015 New Product Strand Copper Flexible Pvc Electrical CableUS$ 0.15 - 39MOQ: 1 Kilometer
-
Heating Application and Solid Conductor Type Copper Stranded WireUS$ 0.34 - 50MOQ: 1 Kilometer
Specifications
copper conductor wire wire ALIBABA CHINA manufacturer-Stock available
-Free sample
-100% pure copper
SINGLE ATRAND Electric solid copper wire ALIBABA CHINA manufacturer

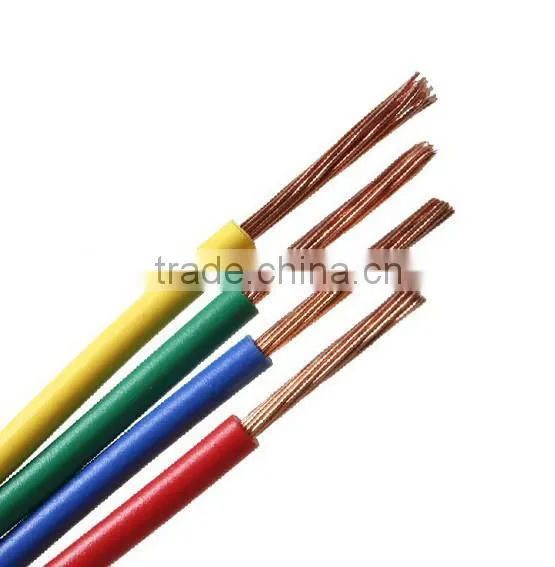

Electrical Wire H05V-K & H07V-K
Characteristics:
| Operating temperature: | +5°C to +70°C on the Conductor |
| Rated voltage: | H05V-K: 300/500 V H07V-K: 450/750 V |
| Max. temperature of short circuit: | 160° C on the conductor 140° C on the conductor / size>300 mm2 |
| Min. bending radius: | Fixed installation: 4x outer diameter |
Specifications Data:
| Section | Max diam. of conductor | Insulation thickness* |
Outer |
Max resistance at 20°C |
Cable weight |
| mm² | mm | mm | mm | ohms/km | kg/km |
H05V-K | |||||
| 0,5 | 0,21 | 0,6 | 2,1 | 39,0 | 9 |
| 0,75 | 0,21 | 0,6 | 2,3 | 26,0 | 12 |
| 1 | 0,21 | 0,6 | 2,5 | 19,5 | 15 |
H07V-K | |||||
| 1,5 | 0,26 | 0,7 | 2,9 | 13,3 | 20 |
| 2,5 | 0,26 | 0,8 | 3,6 | 7,98 | 30 |
| 4 | 0,31 | 0,8 | 4,1 | 4,95 | 45 |
| 6 | 0,31 | 0,8 | 4,7 | 3,30 | 65 |
| 10 | 0,41 | 1,0 | 6,1 | 1,91 | 110 |
| 16 | 0,41 | 1,0 | 7,1 | 1,21 | 160 |
| 25 | 0,41 | 1,2 | 8,7 | 0,780 | 250 |
| 35 | 0,41 | 1,2 | 9,9 | 0,554 | 340 |
| 50 | 0,41 | 1,4 | 11,6 | 0,386 | 480 |
| 70 | 0,51 | 1,4 | 13,3 | 0,272 | 670 |
| 95 | 0,51 | 1,6 | 15,2 | 0,206 | 890 |
| 120 | 0,51 | 1,6 | 17,0 | 0,161 | 1140 |
| 150 | 0,51 | 1,8 | 18,9 | 0,129 | 1410 |
| 185 | 0,51 | 2,0 | 21,0 | 0,106 | 1710 |
| 240 | 0,51 | 2,2 | 23,9 | 0,0801 | 2270 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
Dear sir or madam
This is cherry. If you have any problem , please feel free to contact me. Tell us your request ! Let me know your needs ! RIGHT NOW !! ACTION ! please !
