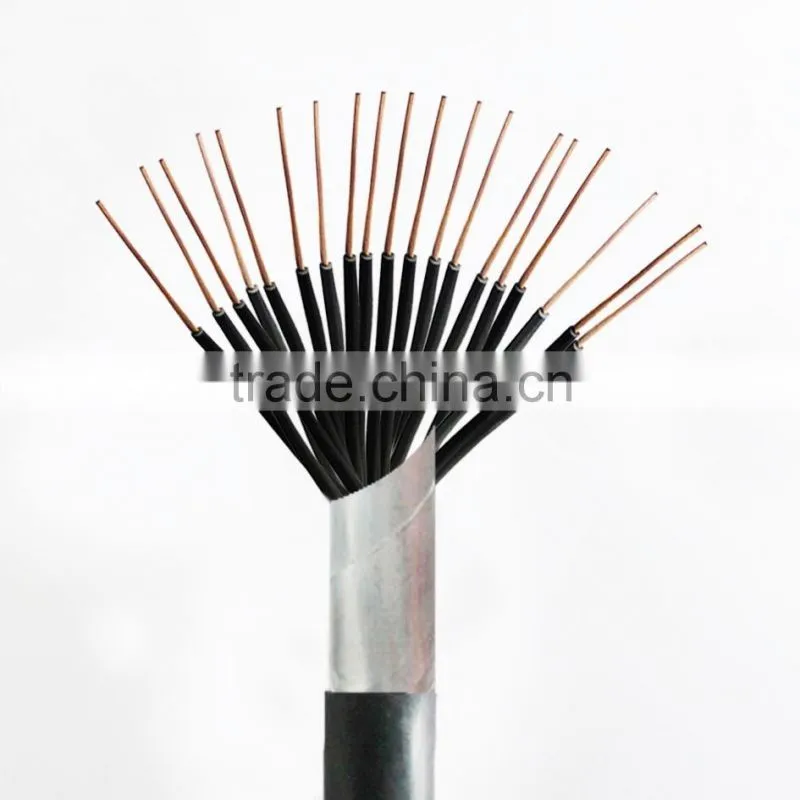

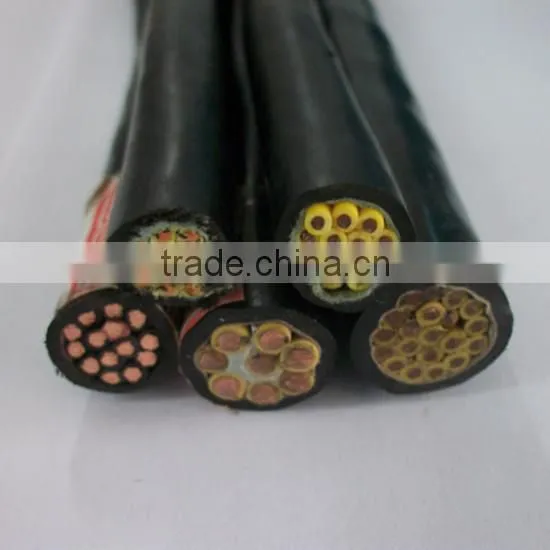

manufacturer pvc material control cable specification
Specifications
1 IEC, ASTM, DIN, BS standard manufacturer pvc material control cable specification
2 ISO,CCC certification
3 Response within 12 hours
4 Free Sample
5 Factory direct sale
Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 70 0C
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0 0C
4. Cores: 2core, 3core, 4core, 5core, 7core, 8core, 10core, 12core, 14core, 16core, 19core, 24core, 27core, 30core, 37core, 44core,48core, 52core, 61core.
5. Minimun bending radius:
Non armored ≥ out diameter of cable 6 times
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
7. nominal section: 0.75mm2, 1.0mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2.
also we supply steel tape armored control cable, braiding screened control cable.

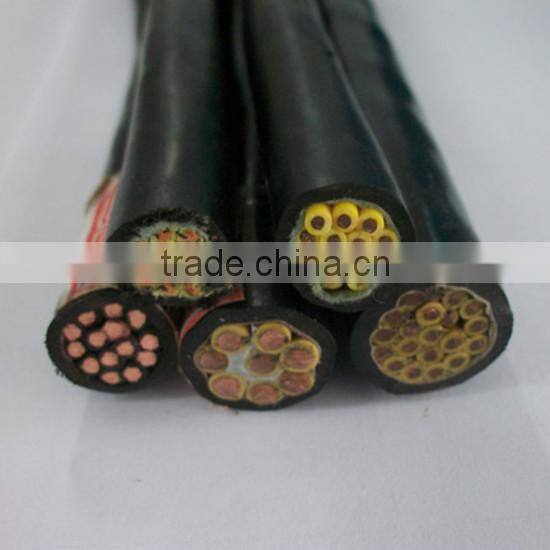

PVC Insulated Control Cable Parameter
Type |
Name |
Section Area(mm2) |
No. of Core |

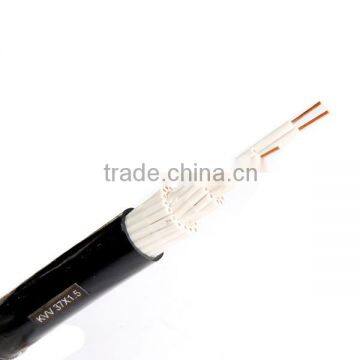

KVV |

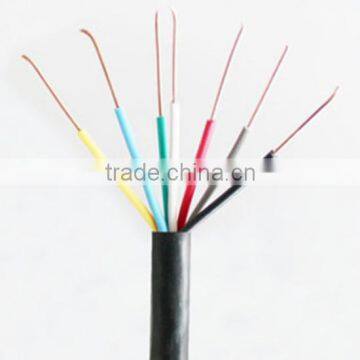

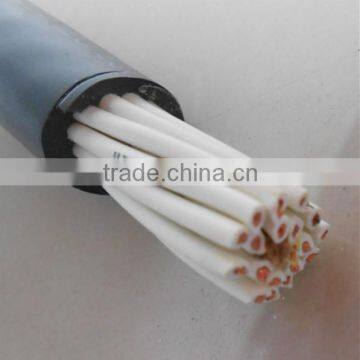

Copper Conductor, PVC Insulated and Sheathed control cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP |

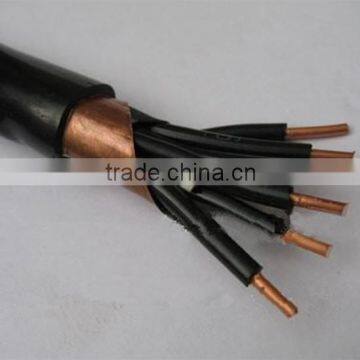

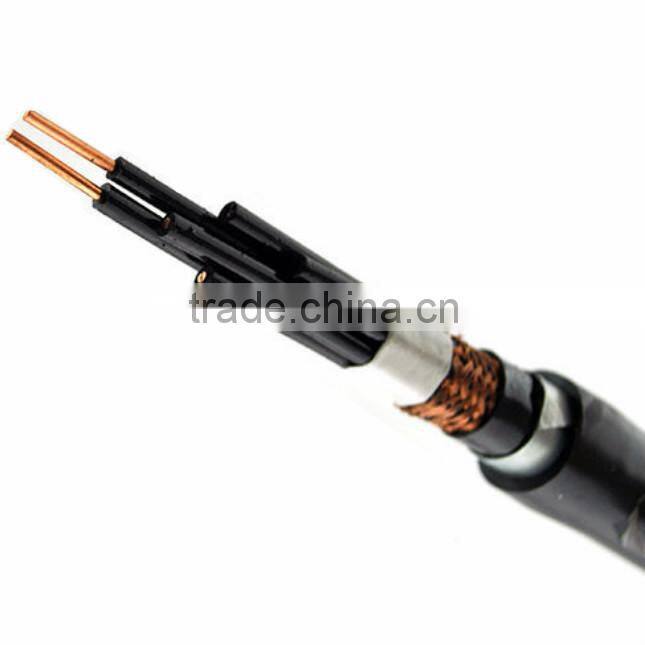

Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP2 |

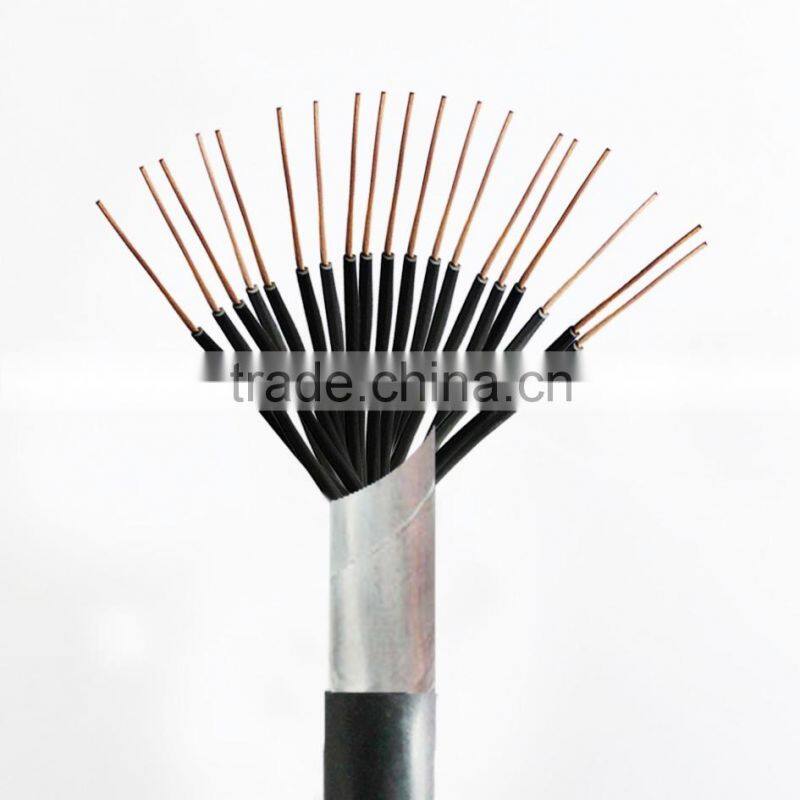

Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVP2-22 |
Copper Conductor, PVC Insulated and S heathed, Copper-tape Screened Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVV22 |
Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVR |
Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
||
KVVRP |
Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable |
0.75 1.0 1.5 2.5 |
2-8 10 12 14 16 19 24 27 30 37 |
4.0 6.0 |
2-8 10 12 14 |
We also produce:
flame-retardant control cable, XLPE insulated control cable, XLPE insulated flame-retardant control cable, low smoke halogen free flame-retardant control cable etc.
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
