Specification

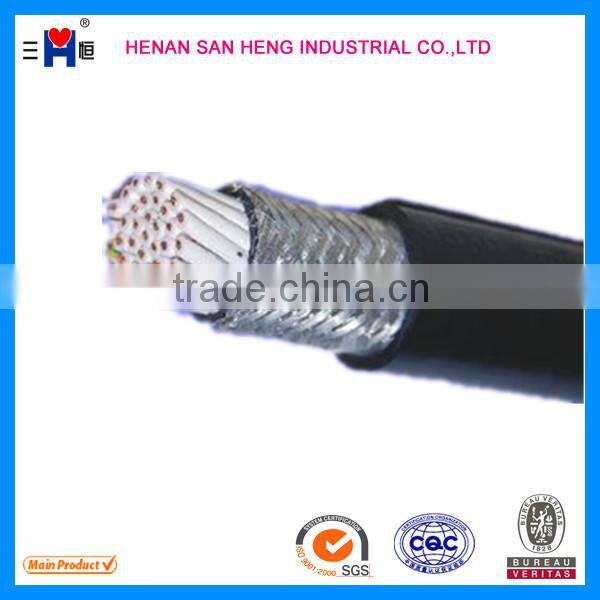

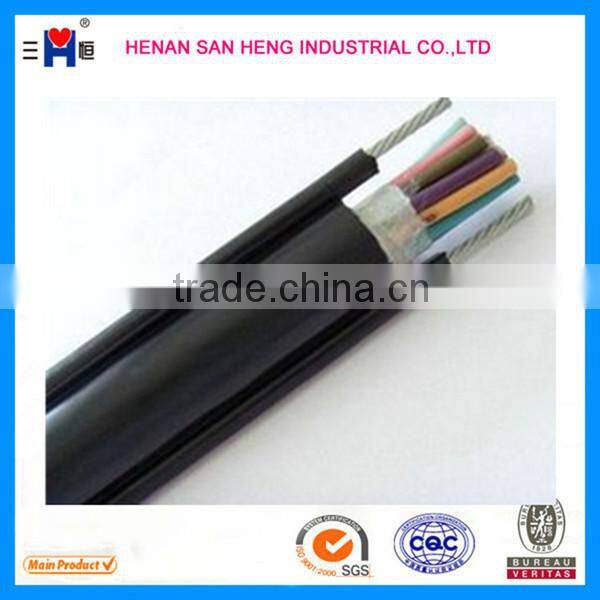

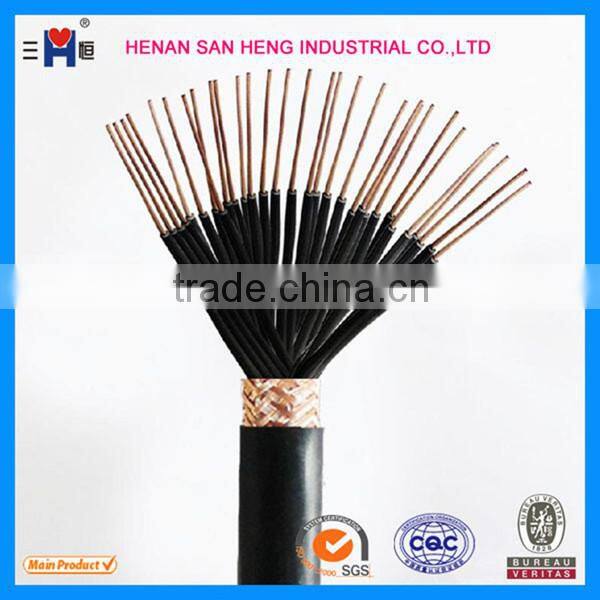

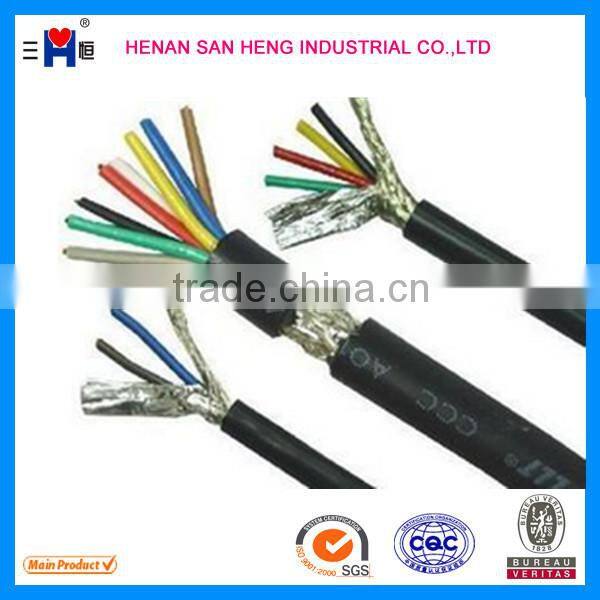

Multicore Copper Conductor flexible control cable KVV
1.Conducter material:Copper
2.Voltage:450/750V
3.Insulated material:XLPE/PVC
Copper conductor PVC insulated control cable introduction
The Multicore Copper Conductor flexible control cable KVV are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
Standard
The Multicore Copper Conductor flexible control cable KVV can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards
Service Conditions
(1) The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2) The temperature for laying the cables cannot be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
Multicore Copper Conductor flexible control cable KVV
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
welcome to inquire Multicore Copper Conductor flexible control cable KVV.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime,and we will give you feedback in 12 hours.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
Dear sir or madam
This is cindy . If you have any problem , please feel free to contact me. Tell us your request ! Let me know your needs ! RIGHT NOW !! ACTION ! please !
