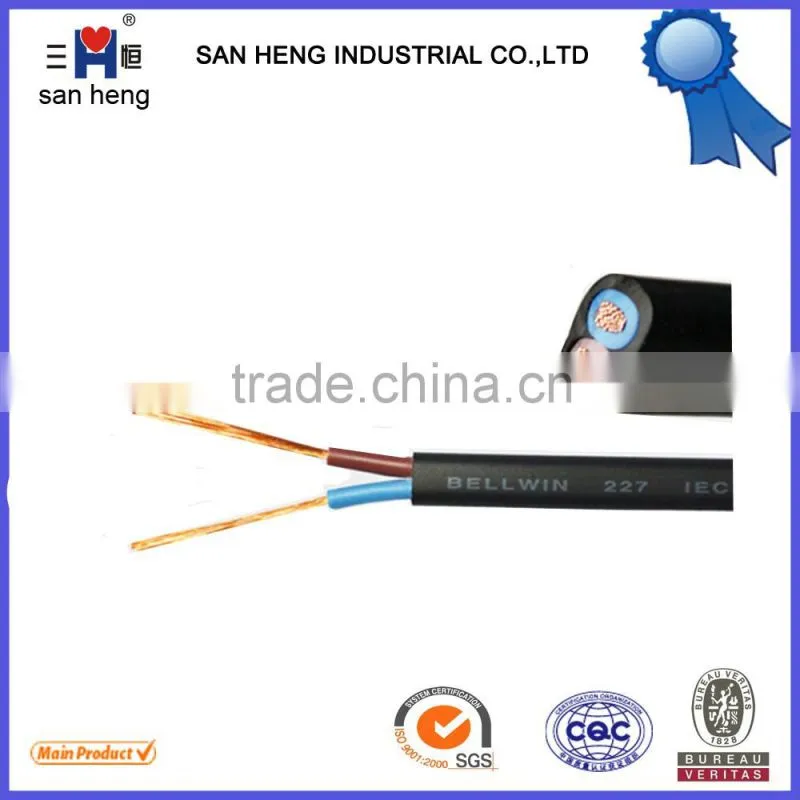

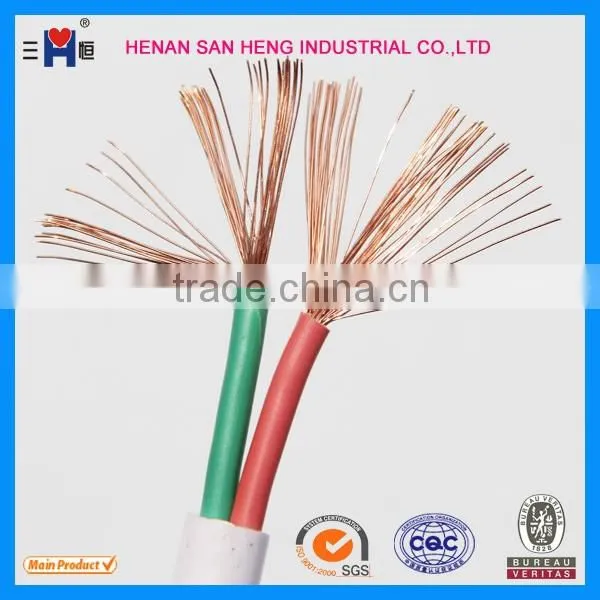

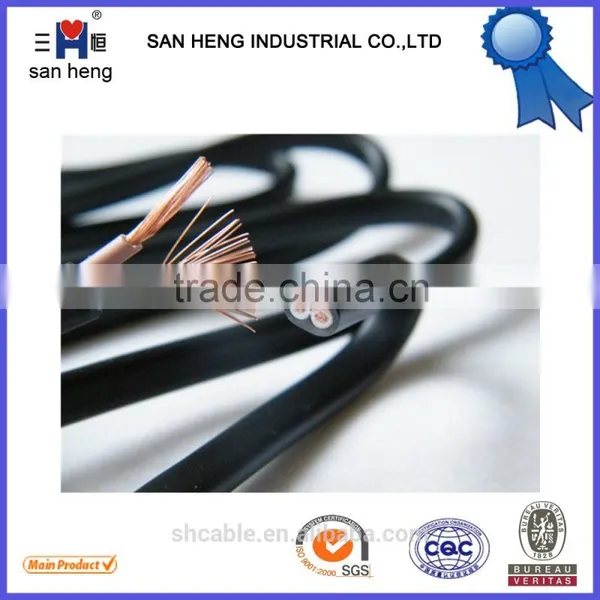

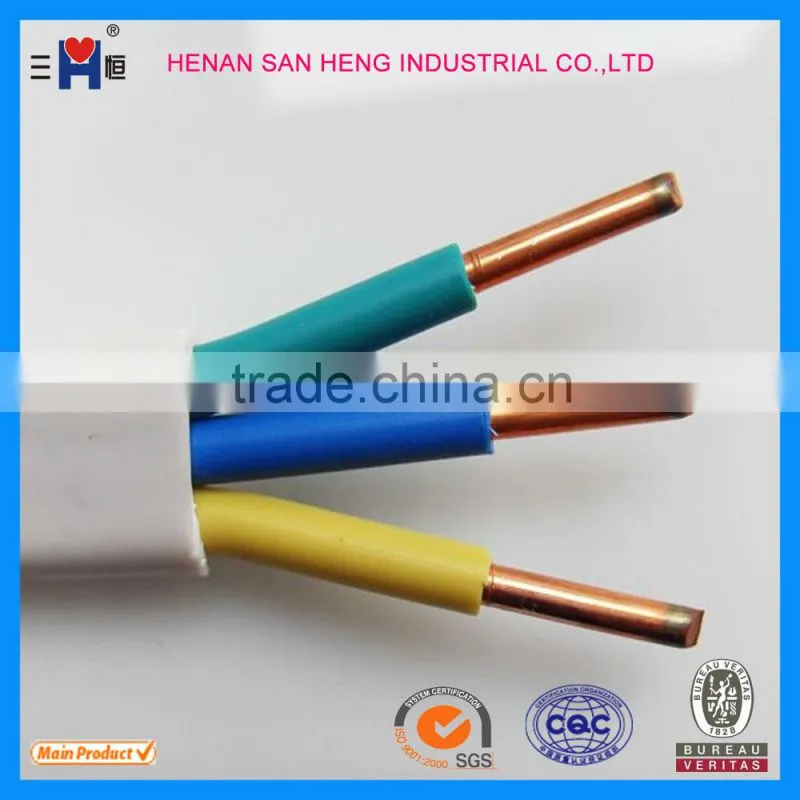

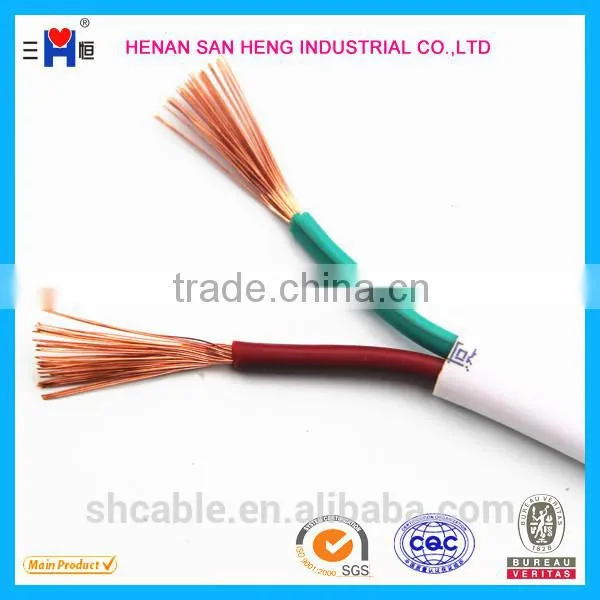

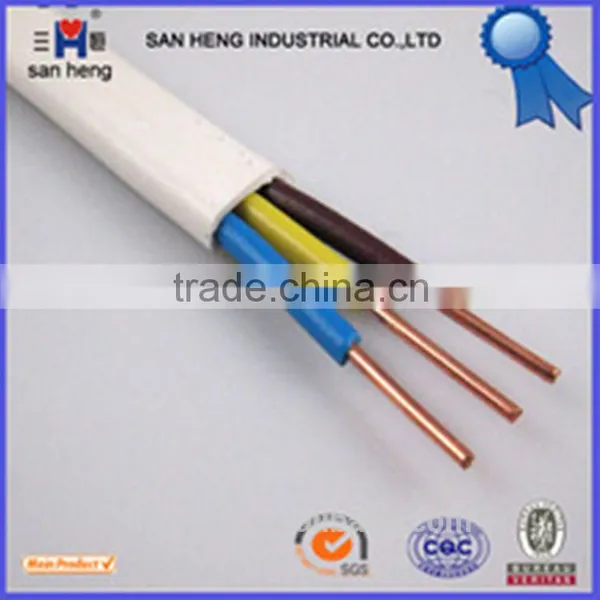

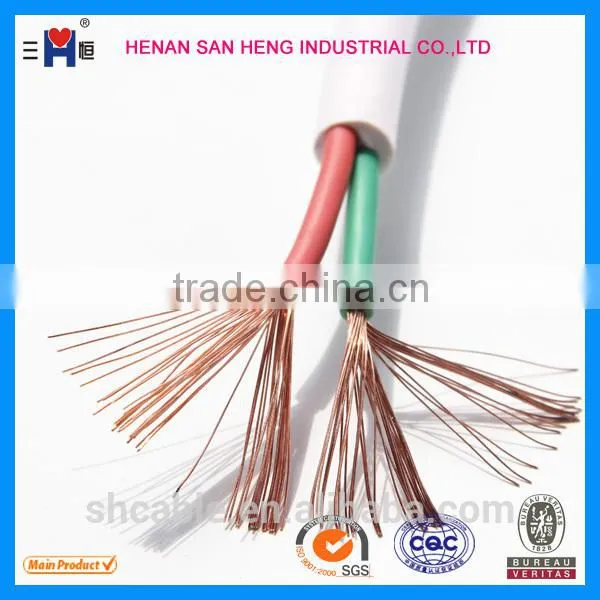

BVVB/RVVB flat PVC insulated electrical housing wire
PVC power wire,
PVC insulated power wire have good quality and the lowest price.If you buy our product ,we can be sure that you cannot be regreted.Usd in electric meter and electrical equipment and automatic device and so on .
core:one-twenty four
Specific Property for Using
1. The long-time permissible working temperature of cable conductive core is not more than 70C.
2. During short circuit(max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5. Light weight, good bending property and easy installation and maintenance.
Technical Requirement
6.type:BV,BLV,BVR,BVV,BLVV,BVVB AND more
If you want to buy other type ,we also can do it as you need.
welcome to communicate with me.
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1. | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !
1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
