Product Details
| Place of Origin: | Henan, China | Brand Name: | San Heng, SANHENG | Model Number: | BV |
| Type: | Insulated | Application: | Other, Construction or house indoor, Heating | Conductor Material: | Other, Copper, Copper,Class 1 plain copper |
| Conductor Type: | Other, Solid, Solid | Insulation Material: | Other, PVC, PVC |
Product Description

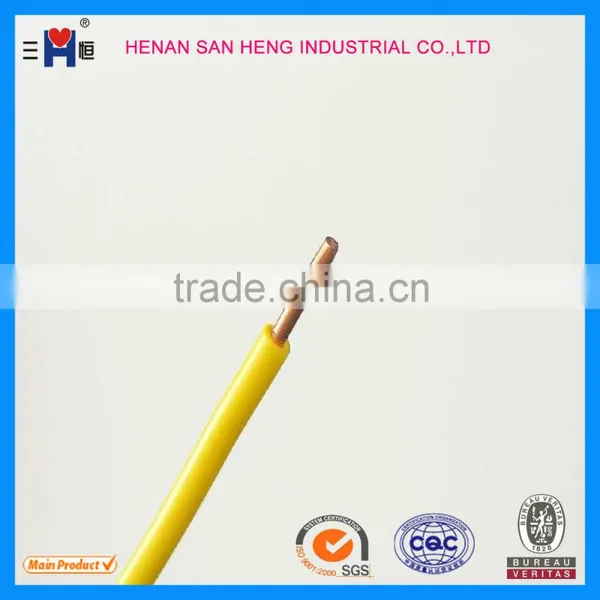

26 awg PVC Insulated Wire electronic wire
PVC insulated Single copper wire
---Application:
low voltage electric wire prices is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
---Conductor:
Class 1 pure annealed copper wire (IEC 60228)
---Conductor
Solid copper wire
---Insulation:
PVC (Polyvinyl chloride polymer)
---Insulation colour:
Red, black, yellow, brown, green and other colours
---Rate of Voltage:
300/500V, 450/750V
---Produts shape:
Circular
---Operating Temperature:
0~70 °C
--- Minimum Bending Radius
Up to 10mm²: 3 x overall diameter
10mm² to 25mm²: 4 x overall diameter
Above 25mm²: 5 x overall diameter
Wire - single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire,PVC insulation
2. Conductor: 100% pure copper
3. Range of application:this product is fit A.C rated voltage 450/750V
4.PVC type TI Ito BS-6746 rated temp7o °C; also available for 105 °C
5.Colour: Red, Yellow, Blue, Black and Yellow Green
6.Application:Includes house wiring, factory wiring, switching panel
distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification,Size and Technical Date:
BV 300/500V | |||
Nominal Section(mm2) | No.Dia. of Core(mm) | Max outer diameter(mm) | Conductor resistance at 20C(≤Ωkm) |
0.5 | 1/0.8 | 2.4 | 36.0 |
0.75(A) | 1/0.97 | 2.6 | 24.5 |
0.75(B) | 7/0.37 | 2.8 | 24.5 |
1(A) | 1/1.13 | 2.8 | 18.1 |
1(B) | 7/0.43 | 3.0 | 18.1 |
BV 450/750V | |||
1.5(A) | 1/1.38 | 3.3 | - |
1.5(B) | 7/0.52 | 3.5 | - |
2.5(A) | 1/1.78 | 3.9 | 11.8 |
2.5(B) | 7/0.68 | 4.2 | 11.8 |
4(A) | 1/2.25 | 4.4 | 7.39 |
4(B) | 7/0.85 | 4.8 | 7.39 |
6(A) | 7/0.85 | 4.8 | 4.91 |
6(B) | 7/1.04 | 5.4 | 4.91 |
10 | 7/1.35 | 7.0 | 3.08 |
16 | 7/1.70 | 8.0 | 1.91 |
25 | 27/2.04 | 10.0 | 1.20 |
35 | 27/2.52 | 11.5 | 0.868 |
50 | 19/1.78 | 13.0 | 0.641 |
70 | 19/2.14 | 15.0 | 0.443 |
95 | 19/2.52 | 17.5 | 0.320 |
120 | 37/2.03 | 19.0 | 0.253 |
150 | 37/2.25 | 21.0 | 0.206 |
185 | 37/2.52 | 23.5 | 0.164 |
240 | 61/2.25 | 26.5 | 0.125 |
300 | 61/2.52 | 29.5 | 0.100 |
High quality, factory price, wholesale, customization, wholehearted service, various specification. Welcome inquiries !
PVC Electric wire
Application
Package:
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!
1.Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
2. Can we represent SANHENG Cable to bid?
A: Please check it with us if we have authorized any other company in your country already.
3. Have you ever supplied cables to our country?
A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
4. According to which standards can SANHENG Cable produce cables?
A: IEC, BS, VDE, NFC, ASTM, etc
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
