Specifications
1.ACSR Conductor2.ACSR_Power Transmission Line and Distribution Line
3.ACSR Conductor(Aluminum Conductor Steel Reinforced)

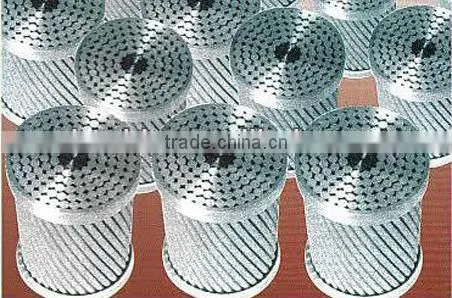

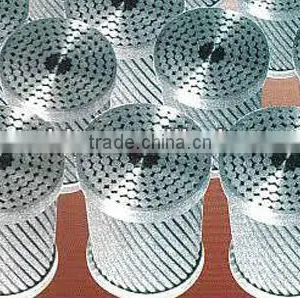

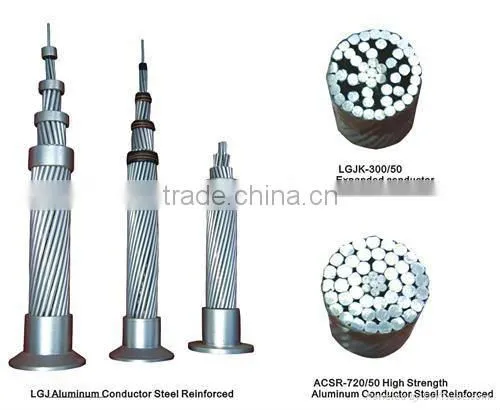

Aluminum conductor steel reinforced (ACSR)

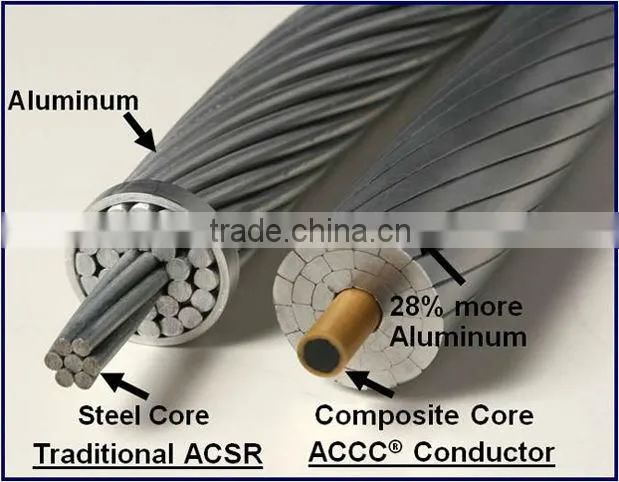

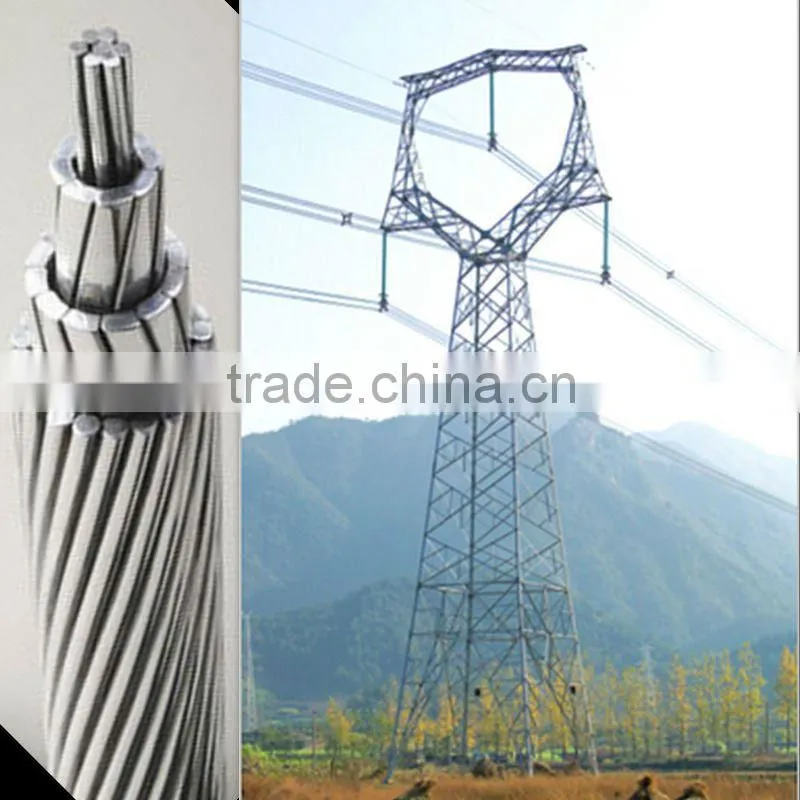

ACSR AAC and AAAC widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
Specification:
(1) aluminium conductors (AAC)
(2) aluminium conductor steel reinforced (ACSR)
(3) i-corrosion type ACSR
(4) l steel conductors
ACSR,AAC,AAAC Aluminum Conductor:
Type:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6) rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
Relative Standard: All Aluminum Conductor (AAC) & Aluminum Conductor Steel Reinforced (ACSR) for ASTM ( AAC, ACCR, AAAC, ACSR )
Installation:
It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.
|
Nominal cross section aluminum/steel ( mm²) |
Structure (no./diameter) ( mm ) |
Out diameter ( mm ) |
D.C.resistor at 20 ( Ω/km ) |
Calculated breakingloadN |
Calculated weight ( kg/km ) |
|
aluminum |
steel |
|||||
|
10/2 16/3 25/4 35/6 |
6/1.50 6/1.85 6/2.32 6/2.72 |
1/1.50 1/1.85 1/1.32 1/2.72 |
4.50 5.55 6.96 8.16 |
2.706 1.779 1.131 0.8230 |
4120 6130 9290 12630 |
42.9 65.2 102.6 141.0 |
|
50/8 50/30 |
6/3.20 12/2.32 |
1/3.20 7/2.32 |
9.60 11.60 |
0.5946 0.5692 |
16870 42620 |
195.1 372.9 |
|
70/10 70/40 |
6/3.80 12/2.72 |
1/3.80 7/2.72 |
11.40 13.60 |
0.4217 0.4141 |
23390 58300 |
275.2 511.3 |
|
95/15 95/20 95/55 |
26/2.15 7/4.16 12/3.20 |
7/1.67 7/1.85 7/3.20 |
13.61 13.87 16.00 |
0.3058 0.3019 0.2992 |
35000 37200 78110 |
380.8 408.6 707.7 |
|
120/7 120/20 120/25 120/70 |
18/2.90 26/2.38 7/4.72 12/3.6 |
1/2.90 7/1.85 7/2.10 7/3.60 |
24.50 15.07 15.74 18.00 |
0.2422 0.2496 0.2345 0.2364 |
27570 41000 47880 98370 |
379.0 466.8 526.6 895.6 |
|
150/8 150/20 150/25 150/35 |
18/3.20 24/2.76 26/2.70 30/2.50 |
1/3.20 7/1.85 7/2.10 7/2.50 |
16.00 16.67 17.10 17.50 |
0.1989 0.1980 0.1939 0.1962 |
32860 46630 54110 65020 |
461.4 549.4 601.0 676.2 |
185/10 |
18/3.60 |
1/3.60 |
18.00 |
0.1572 |
40880 |
584.0 |
...
