Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)

Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)

Name: Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)
Brand: SAN HENG
SKU: 109624461

Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard) thumbnail-1

Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard) photo-1

US$ 0.001 - 20 MOQ: 2000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

SAN HENG

Model Number:

ABC

Contact Supplier Request Quote Chat Now

Henan Sanheng Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name SAN HENG

Model Number ABC

Insulation Material Other, XLPE/ PE / PVC

Type Low Voltage

Application Overhead

Conductor Material Aluminum

Specifications

Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)
ISO manufacturer
FREE SAMPLES
Factory Price

Overhead Power Cable_0.6/1kV Aerial Bunched Cable (ABC) (British/IEC Standard)

ISO manufacturer
FREE SAMPLES
Factory Price

Specifications

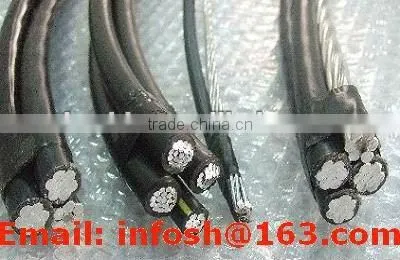

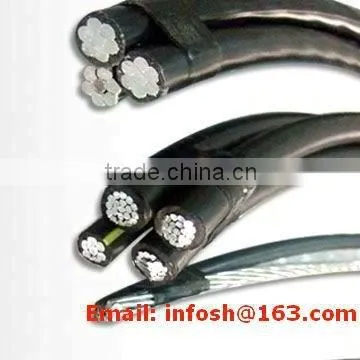

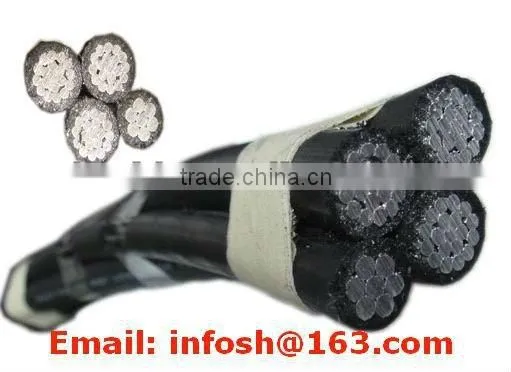

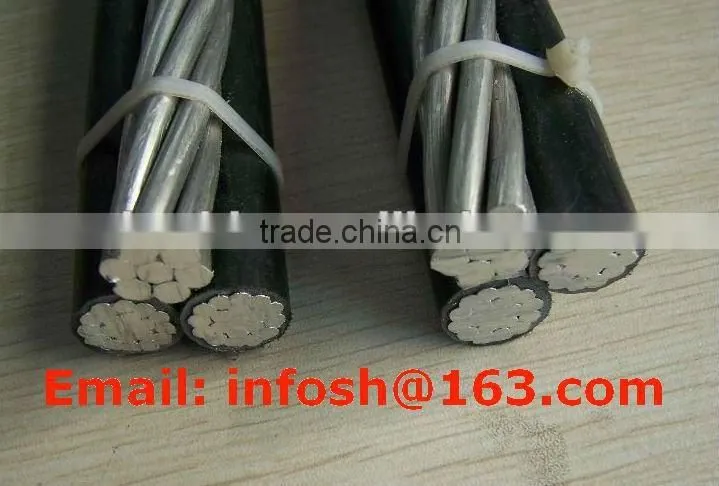

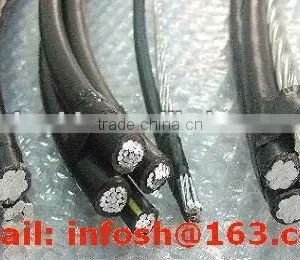

ABC aerial bundle cable withAluminium stranded conductor(compacted or non- compacted), AAAC or ACSR messenger core.

Aluminium stranded conductor(compacted or non- compacted), AAAC messenger core(or ACSR messenger core), XLPE(or HDPE) insulated, Twisted (or Parallel)power cable

The product is a new type of aerial cable for power transmitting, It is extensively used in overhead power transmission line, It improves the safety and reliance of electrified wire netting.

SPEC mm2	conductor structure					Approx.
	Phase	Neutral(Bare ACSR)		insulation	insulation	Overall	Approx.	packing
	(Compacted AL)	Aluminium	Steel	material	Thickness	Diameter	Weight	Meters Per
	(No./mm)	(No./mm)	(No./mm)		(mm)	(mm)	(kg/km)	Drum
1x16+1x16	7/1.72	6/1.72	1/1.72	XLPE	1.2	12.5	121.9	250-4000m
1x25+1x25	7/2.15	6/2.15	1/2.15		1.2	14.9	182.2	250-4000m
1x35+1x35	7/2.54	6/2.54	1/2.54		1.4	17.5	254.7	250-3500m
1x50+1x50	7/2.92	6/2.92	1/2.92		1.4	20.1	333.9	250-3000m
1x70+1x70	19/2.15	12/2.15	17/2.15		1.4	23.6	382.2	250-3000m
1x95+1x95	19/2.54	12/5.24	17/5.24		1.6	27.6	528.2	250-3000m
2x16+1x16	7/1.72	6/1.72	1/1.72	(HDPE)	1.2	14.2	187.6	250-4000m
2x25+1x25	7/2.15	6/2.15	1/2.15		1.2	16.7	273.8	250-3500m
2x35+1x35	7/2.54	6/2.54	1/2.54		1.4	19.7	386.9	250-3500m
2x50+1x50	7/2.92	6/2.92	1/2.92		1.4	22.5	506	250-3000m
2x70+1x70	19/2.15	12/2.15	7/2.15		1.4	26.1	617.2	250-3000m
2x95+1x95	19/2.54	12/5.24	7/5.24		1.6	30.5	850.9	250-3000m
3x16+1x16	7/1.72	6/1.72	1/1.72		1.2	16.3	253.3	250-3500m
3x25+1x25	7/2.15	6/2.15	1/2.15		1.2	19.1	371.9	250-3500m
3x35+1x35	7/2.54	6/2.54	1/2.54		1.4	22.5	519.1	250-3000m
3x50+1x50	7/2.92	6/2.92	1/2.92		1.4	25.7	678.1	250-3000m
3x70+1x70	19/2.15	12/2.15	7/2.15		1.4	29.7	1024.3	250-3000m
2x95+1x95	19/2.54	12/2.54	7/2.54		1.6	34.6	1413.7	250-3000m

If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,I will send our best quotation to you.

This series includes:

* ABC cable,
* All aluminum conductors (AAC)
* All aluminum alloy conductors (AAAC)
* Aluminum conductor steel reinforced (ACSR)
* Anti-corrosion type ACSR
* All steel conductors
