Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Enamelled Copper Wire for Speaker Malaysia

Enamelled Copper Wire for Speaker Malaysia

Name: Enamelled Copper Wire for Speaker Malaysia
Brand: san heng
SKU: 109624155
Availability: InStock

Enamelled Copper Wire for Speaker Malaysia thumbnail-1

Enamelled Copper Wire for Speaker Malaysia photo-1

US$ 0.01 - 0.05 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

san heng

Model Number:

ecca

Contact Supplier Request Quote Chat Now

Henan Sanheng Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name san heng

Model Number ecca

Type Bare

Application Other

Conductor Material Other

Conductor Type Solid

Insulation Material Other, bare

Specifications

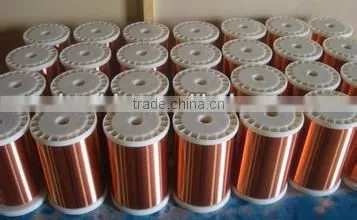

enamelled copper wire for speaker malaysia
1)Size: 0.10~6.00mm
2)Themal Class : 130/155/180/200/220
3)Certification:SGS,UL,

enamelled copper wire for speaker malaysia

We are factory/manufacturer ,many years professional experience in manufacturing enameled copper wire, give us a chance, and we will return you beyond your imagination .

our advantages

1)Size: 0.025~4.5 mm
2)Themal Class : 130/155/180/200/220

3)Certification: SGS,UL,ISO9001,Reach,RoHS ( UL File NO: E345303)

4)Insulation: UEW,PEW,EIW,EI/AIW,PE/AIW

5)Standard: GB / IEC / NEMA / JIS

6)Packing: Plastic Spools

Product Details of enameled copper wire :

Product Name	Temperature Index	Diameter Range	Standard	Product Characteristics	Application Field
Polyester enameled copper round wire	155 /180 °C	0.10-3.5mm	GB IEC NEMA JIS	This product provides excellent flexibility,adhesion and anti-scrape resistance.	Suitable for magnetic coils,all kinds of motor winding coils,etc.(Except the oil-immersed transformer)

Polyurethane enameled copper round wire	130 /155 /180 °C	0.10-3.5mm	GB IEC NEMA JIS	This product provides good heat resistance,solderability,dyeing,excellent pinhole resistance and high-frequency resistance characteristics.	Suitable for electric components,instrumentation winding,transformers,telecommunication equipments,motors,etc.
Polyester(imide)/polyamide-imide enameled copper round wire	200 /220 °C	0.10-3.5mm	GB IEC NEMA JIS	This product provides good heat resistance,high cut through,solvent resistance,radiation resistance,cold resistance,freon resistance.	Suitable for oil-immersed transformers,dry-type transformers,high-temperature transformers,refrigeration compressor motors,sealed motor,explosion-proof motors,electric tools motors,magnetic coils,and high-power motors,etc.

Polyester/Nylon(polyamide) enameled copper round wire	155 /180 °C	0.10-3.5mm	GB IEC NEMA JIS	This product provides excellent flexibility,adhesion and anti-scrape resistance,low coefficient of friction,etc.	Suitable for magnetic coils,all kinds of motor winding coils,etc.(Except the oil-immersed transformer)

TI 180 Polyester-imide enameled copper round wire	180 °C	0.10-3.5mm	GB IEC NEMA JIS	This product provides high cut through,excellent heat shock and high heat resistance characteristics.	Suitable for oil-immersed transformers,dry-type transformers,explosion-proof motors,electric tools,electromagnetic coils,motors,etc
