Specifications
1. Steel Wire Armoured Cable2. Conductor:Aluminium or Copper
3. Voltage:0.6kV~1kV~35kV Armored Cable
4. OEM Is Welcomed

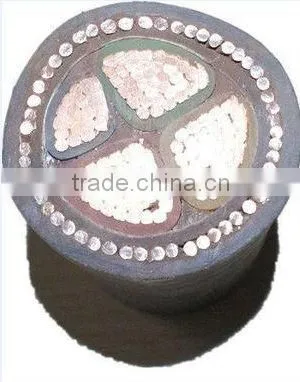

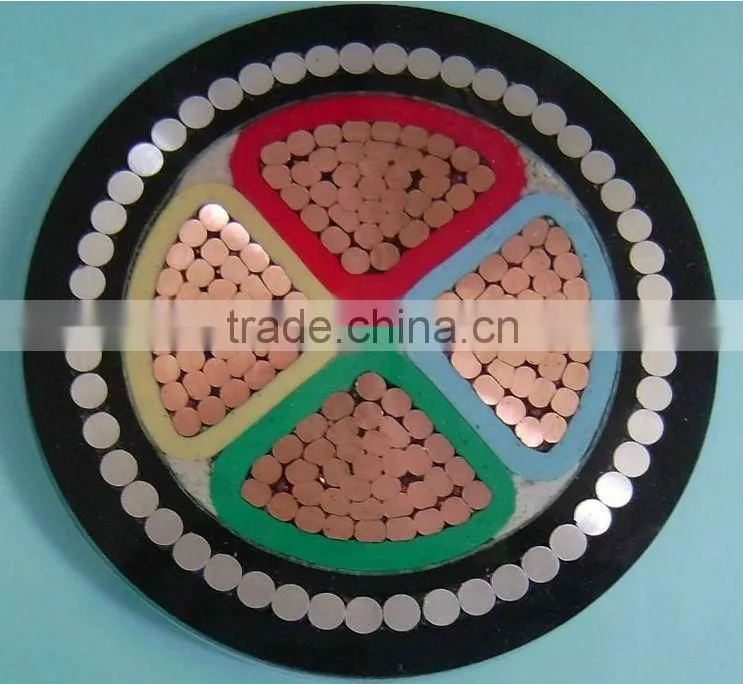

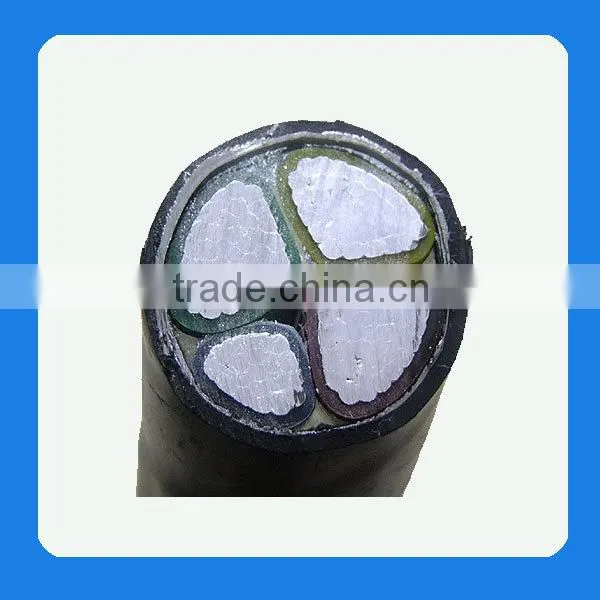

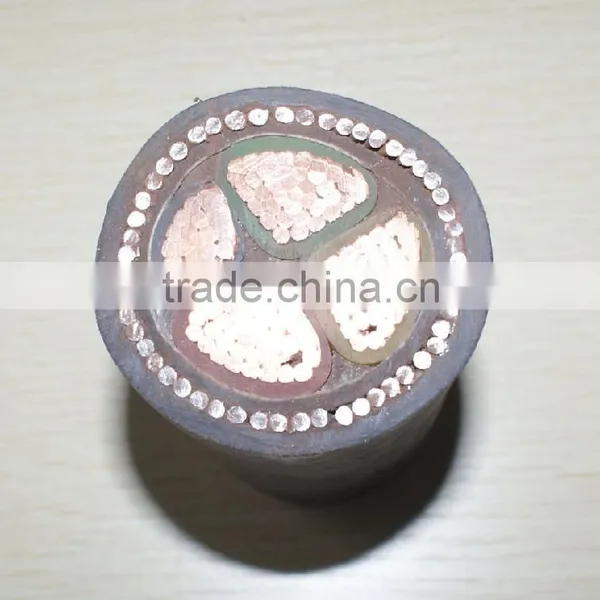

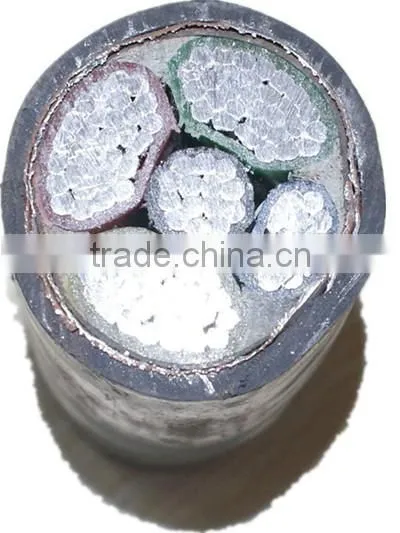

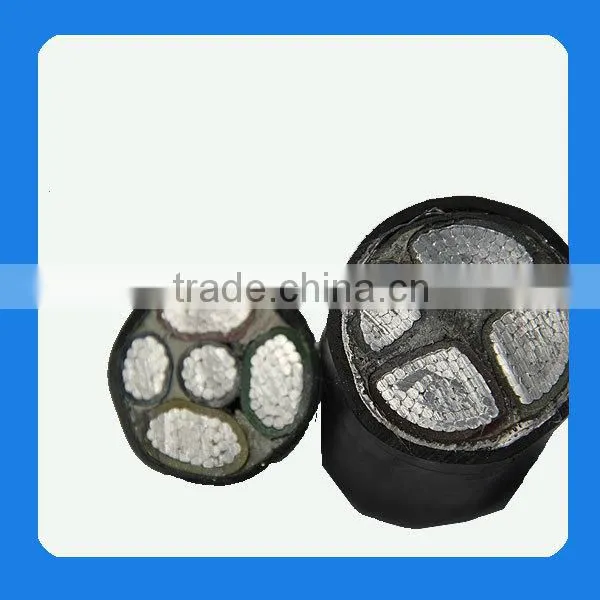

0.6/1KV 4 Core CU/ XLPE Insulated Steel Wire Armoured Power Cable
Underground SWA Armoured Cable
PVC Cable:
Cu(Al)/PVC/PVC Cable
Cu(AL)/PVC/SWA/PVC Cable
Cu(AL)/PVC/AWA/PVC Cable
Cu(Al)/PVC/STA/PVC Cable
XLPE Cable:
Cu(Al)/XLPE/PVC Cable
Cu(AL)/XLPE/SWA/PVC Cable
Cu(AL)/XLPE/AWA/PVC Cable
Cu(Al)/XLPE/STA/PVC Cable Cable
Standard: BS5467:1997 with Amendment 1,IEC60502
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath: Polyvinyl chloride (PVC)
Voltage rating: 0.6/1kV,3.6/6kV;6/10KV;8.7/15KV;12/20KV;18/20KV;19/33KV;21/35KV;26/35KV
Model and Specification
TYPE |
Description |
Application |
|
Cu core |
Al Core |
||
YJV |
YJLV |
Cu or Al conductor XLPE insulated PVC sheathed power cable |
Installed in indoor/outdoor tunnel. cable trench or buried in loose soil. Single core cable is not allowed to be installed in magnetic conduit |
YJY |
YJLY |
Cu or Al conductor XLPE insulated PE sheathed power cable |
|
YJV22 |
YJLV22 |
Cu or Al conductor sheathed power cable XLPE insulated steel tape armoured PVC sheathed power cable |
Installed outdoors or buried. the cable may endure external mechanical force |
YJV23 |
YJLV23 |
Cu or Al conductor XLPE insulated steel tape armoured PVC sheathed power cable |
/ |
YJV32 |
YJLV32 |
Cu or Al conductor XLPE insulated fine steel wire armoured PVC sheathed power cable |
Installed in shaft ,water or where with high drop in elevation .the cable may endure external mechanical force and certain pulling force |
YJV33 |
YJLV33 |
Cu or Al conductor XLPE insulated armoured PE sheathed power cable |
/ |
YJV42 |
YJLV42 |
Cu or Al conductor XLPE insulated armoured PVC sheathed power cable |
Installed in shaft, undersea or where with high drop in elevation. the cable my endure high pressure and pulling force |
YJV43 |
YJLV43 |
Cu or Al conductor XLPE insulated thick steel wire armoured PE sheathed power cable |
|
4.Type and size
Type |
Nominal cross-sectional area |
|||||
Single-core |
2-core |
3-core |
4-core |
5-core |
||
|
YJV ZR-YJV |
YJLV ZR-YJLV |
1.5-800 |
1.5-300 |
1.5-300 |
1.5-300 |
1.5-300 |
|
YJV22 ZR-YJV22 |
YJLV22 ZR-YJLV22 |
10-800 |
4-300 |
4-300 |
4-300 |
4-300 |
|
YJV32 ZR-YJV32 |
YJLV32 ZR-YJLV32 |
10-800 |
4-300 |
4-300 |
4-300 |
4-300 |
5, We also supply the following cables:
1)Electrical wire and installation cable;
2)Control cable with screen, shielding or other feature;
3)1kv-110kv Power cable Armored or Non-armored(PVC, XLPE insulated);
4)Telecommunication cable incl.data cable and telephone cable;
5)Rubber cable for welding, ship or other purpose;
6)Bare conductor and aerial bundle cable, ACSR, AAC, ABC etc
6, PACKING:
BY WOODEN DRUM
