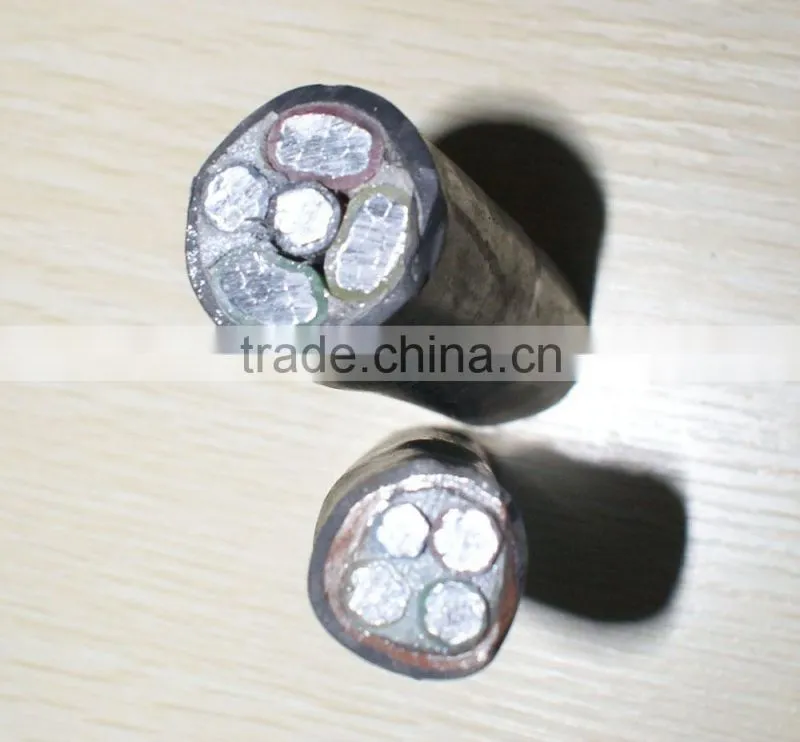

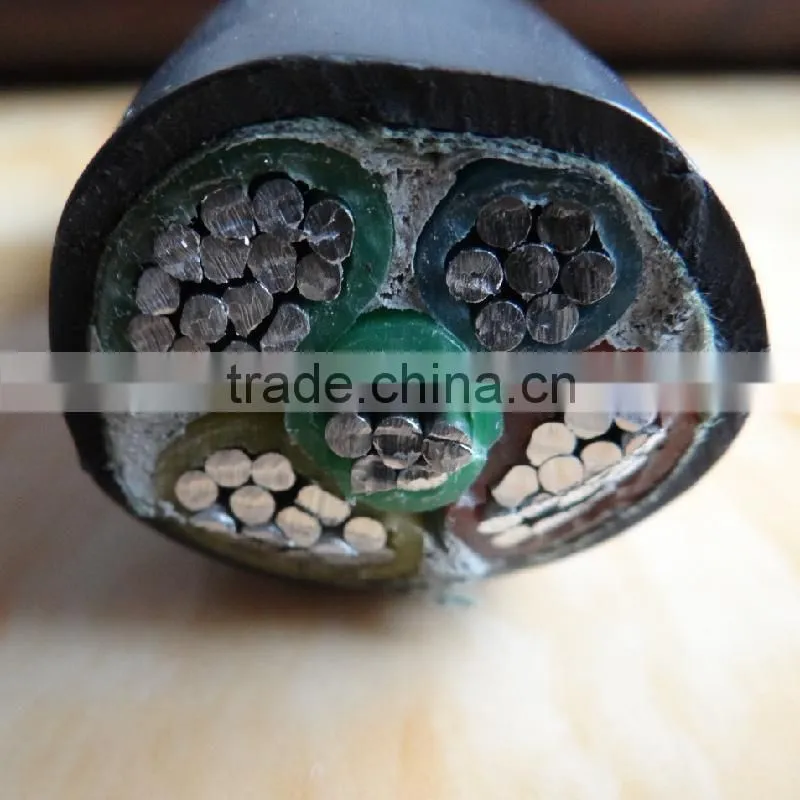

0.6/1kv Copper/Aluminum conductor XLPE insulation Steel wire armoured PVC Sheath Power cable
- 500 Kilometer / Kilometers per Month
- SHANGHAI
- T/T
-
Mooring rope cable
-
Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
-
The difference between different types of automotive cables and selection advice
-
China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
-
IEC62196-2 mode 3 16A single-phase electric vehicle charging process
-
Automotive high-voltage cables with protection class IP67 characteristics
Product Details
| Place of Origin: | Henan, China | Brand Name: | SANHENG, sanheng | Model Number: | YJV33, Power Cable |
| Insulation Material: | Other, XLPE, XLPE | Type: | Other, Medium Voltage, Low Voltage | Application: | Other, Construction, industrial |
| Conductor Material: | Other, Copper, Copper or Aluminum | Jacket: | Other, PVC, PVC |
Product Description
Specifications
1. Copper Armoured Cable2. Conductor:Aluminium or Copper
3. Voltage:0.6kV~1kV~35kV Armored Cable
4. OEM Is Welcom
0.6/1kv Copper/Aluminum conductor XLPE insulation Steel wire armoured PVC Sheath Power cable
1, Cu or Al conductor SWA / STA Armoured Cable
PVC Cable:
Cu(Al)/PVC/PVC Cable
Cu(AL)/PVC/SWA/PVC Cable
Cu(AL)/PVC/AWA/PVC Cable
Cu(Al)/PVC/STA/PVC Cable
2, XLPE Cable:
Cu(Al)/XLPE/PVC Cable
Cu(AL)/XLPE/SWA/PVC Cable
Cu(AL)/XLPE/AWA/PVC Cable
Cu(Al)/XLPE/STA/PVC Cable Cable
Standard: BS5467:1997 with Amendment 1,IEC60502
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath: Polyvinyl chloride (PVC)
Voltage rating: 0.6/1kV,3.6/6kV;6/10KV;8.7/15KV;12/20KV;18/20KV;19/33KV;21/35KV;26/35KV
3, Model and Specification
TYPE | Description | Application | |
Cu core | Al Core | ||
YJV | YJLV | Cu or Al conductor XLPE insulated PVC sheathed power cable | Installed in indoor/outdoor tunnel. cable trench or buried in loose soil. Single core cable is not allowed to be installed in magnetic conduit |
YJY | YJLY | Cu or Al conductor XLPE insulated PE sheathed power cable | |
YJV22 | YJLV22 | Cu or Al conductor sheathed power cable XLPE insulated steel tape armoured PVC sheathed power cable | Installed outdoors or buried. the cable may endure external mechanical force |
YJV23 | YJLV23 | Cu or Al conductor XLPE insulated steel tape armoured PVC sheathed power cable | / |
YJV32 | YJLV32 | Cu or Al conductor XLPE insulated fine steel wire armoured PVC sheathed power cable | Installed in shaft ,water or where with high drop in elevation .the cable may endure external mechanical force and certain pulling force |
YJV33 | YJLV33 | Cu or Al conductor XLPE insulated armoured PE sheathed power cable | / |
YJV42 | YJLV42 | Cu or Al conductor XLPE insulated armoured PVC sheathed power cable | Installed in shaft, undersea or where with high drop in elevation. the cable my endure high pressure and pulling force |
YJV43 | YJLV43 | Cu or Al conductor XLPE insulated thick steel wire armoured PE sheathed power cable | |
4, Type and size
Type | Nominal cross-sectional area | |||||
Single-core | 2-core | 3-core | 4-core | 5-core | ||
YJV ZR-YJV | YJLV ZR-YJLV | 1.5-800 | 1.5-300 | 1.5-300 | 1.5-300 | 1.5-300 |
YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | 10-800 | 4-300 | 4-300 | 4-300 | 4-300 |
5, We also supply the following cables:
1)Electrical wire and installation cable;
2)Control cable with screen, shielding or other feature;
3)1kv-110kv Power cable Armored or Non-armored(PVC, XLPE insulated);
4)Telecommunication cable incl.data cable and telephone cable;
5)Rubber cable for welding, ship or other purpose;
6)Bare conductor and aerial bundle cable, ACSR, AAC, ABC etc
6, PACKING:
BY WOODEN DRUM
