Specifications
High quality 5 core Copper conductor Steel Tape Armoured Power CableCopper conductor
XLPE Insulation PVC Sheath

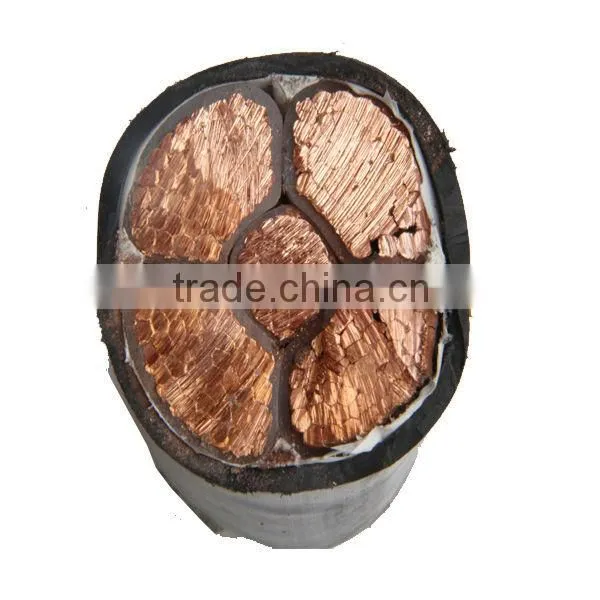

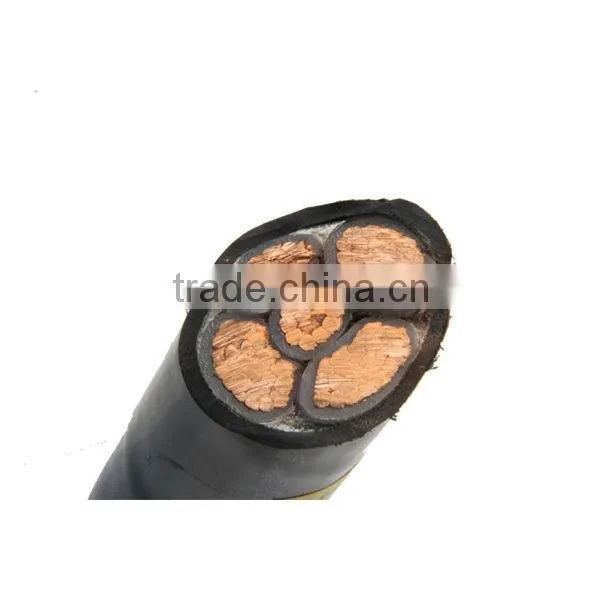

High quality 5 core Copper conductor Steel Tape Armoured Power Cable
Intorduction
For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermo-plastic PE is transformed into thermosetting XLPE. After cr·oss-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.
Standard
The products can be produced accoring to the standard IEC60502, the factory can also design and manufacture special XLPE cable according to the other stansards required by the customers.
Application
For laying indoor ,tunnel ,channel and underground .Unable to bear external mechanical force, but bear the traction force during laid.
Using Features
They not only have excellent electric ,mechanical properties, but also have poweful resistance against chemical corrosion, heataging and envirment stress.Their structures are simple. The permission maximum operating temperature is 90°C.It is convenient for using, and they can be laid with no restriction of different elevation.
Type,designation and application
Type |
Designation |
Application |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
Suitable for indoor, channels, conduits. Unable to bear mechanical stress. |
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
|
YJV22 |
YJLV22 |
XLPE insulated steel-tape armored PVC sheathed power cable |
Suitable for under ground, can bear mechanical stress, but can not endure large pulling force. |
YJV23 |
YJLV23 |
XLPE insulated steel-tape armored PE sheathed power cable |
|
YJV32 |
YJLV32 |
XLPE insulated fine steel-wire armored PVC sheathed power cable |
Can be installed in vertical well, and bear large mechanical pulling force. |
YJV42 |
YJLV42 |
XLPE insulated steel-wire armored PVC sheathed power cable |
|
YJV33 |
YJLV33 |
XLPE insulated fine steel-wire armored PE sheathed power cable |
|
YJV43 |
YJLV43 |
XLPE insulated steel-wire armored PE sheathed power cable |
|
