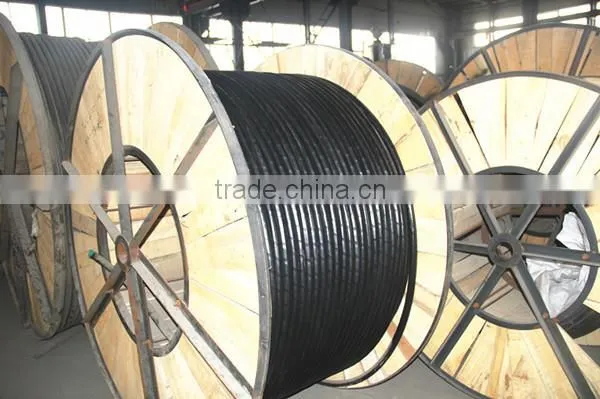

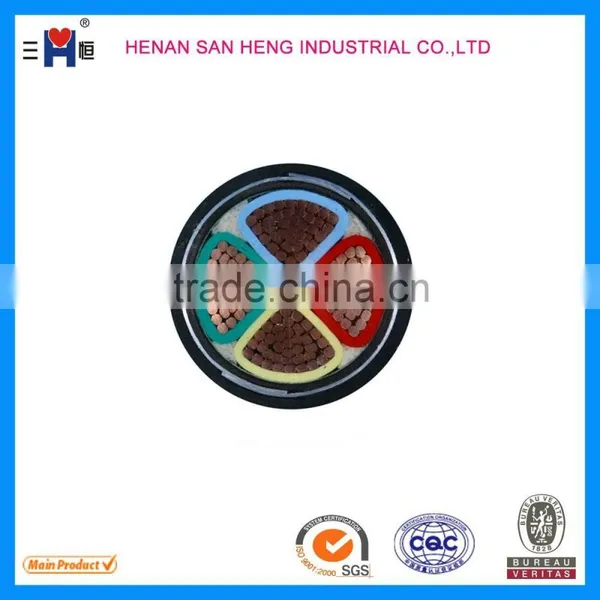

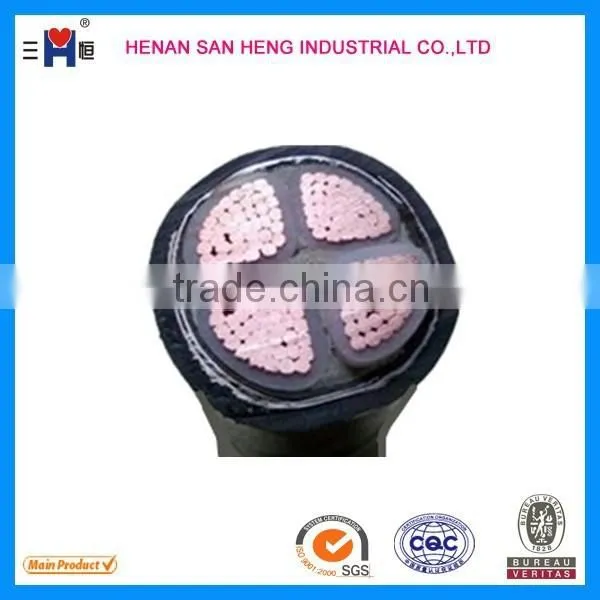

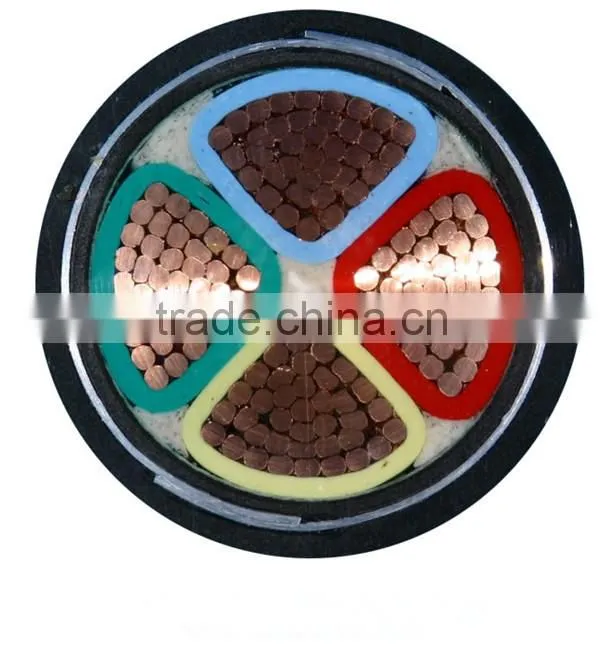

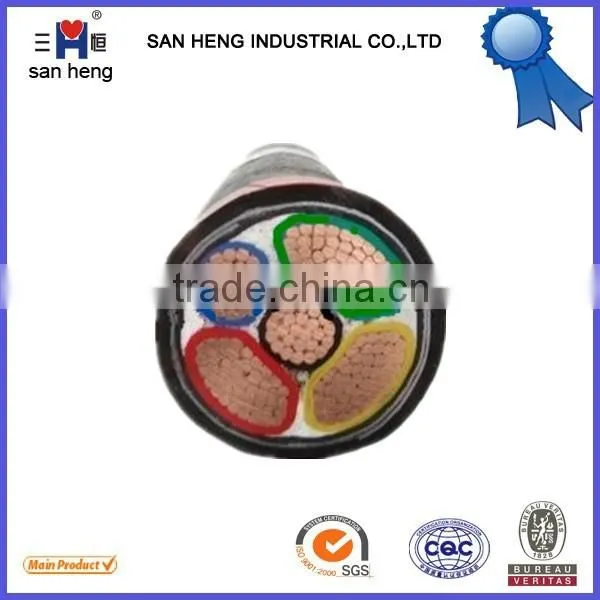

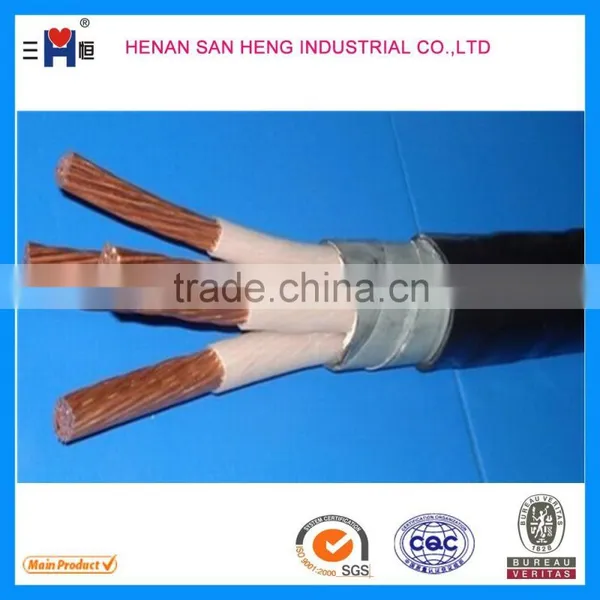

Steel tape armoured cable xlpe insulated pvc sheath power cable
Product description:
0.6/1kV XLPE Insulated 4x120mm2 Cable Without Armored applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.For outdoor and indoor installation in damp and wet locations,laid directly in the ground(when well protect in ducts,in trenches and in steel support brackets.)
1.U0/U: 0.6/1kV
2.Standard: IEC60502, BS7889,GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 1/2 bare copper solid or stranded
5.Insulation: XLPE
6. Sheath: PVC
7. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
8. Cross section area: 1.5~630mm
9.Packing:Wooden drum or as requirement
10.Certification : ISO9001/ISO14001 /OHSAS18001/CCC/CE/CB
11.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
12.Armoured: Steel type armoured( STA)
Technical data:
Four cores:
| cross section mm2 | insulated thickness mm | sheath thickness mm | outer diameter mm | testing voltage kv | current loading capacity | |
| in the air | to be laid underground | |||||
| 1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
| 2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
| 4 | 0.7 | 1.5 | 12.8 | 3.5 | 37 | 44 |
| 6 | 0.7 | 1.5 | 14 | 3.5 | 46 | 54 |
| 10 | 0.7 | 1.5 | 15.9 | 3.5 | 63 | 73 |
| 16 | 0.7 | 2 | 19.1 | 3.5 | 84 | 94 |
| 25 | 0.9 | 2 | 22.7 | 3.5 | 109 | 120 |
| 35 | 0.9 | 2 | 25.4 | 3.5 | 132 | 144 |
| 50 | 1 | 2 | 29 | 3.5 | 159 | 169 |
| 70 | 1.1 | 2 | 32.9 | 3.5 | 195 | 205 |
| 95 | 1.1 | 2.5 | 37.7 | 3.5 | 237 | 245 |
| 120 | 1.2 | 2.5 | 41.6 | 3.5 | 273 | 278 |
| 150 | 1.4 | 3 | 47.6 | 3.5 | 310 | 309 |
| 185 | 1.6 | 3 | 50.6 | 3.5 | 355 | 347 |
| 240 | 1.7 | 3 | 56.4 | 3.5 | 416 | 399 |
| 300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
| 400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
As customers request
1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
Quality First ! Customer First ! Service First !
Our products have been repeatedly tested by National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision & Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.
