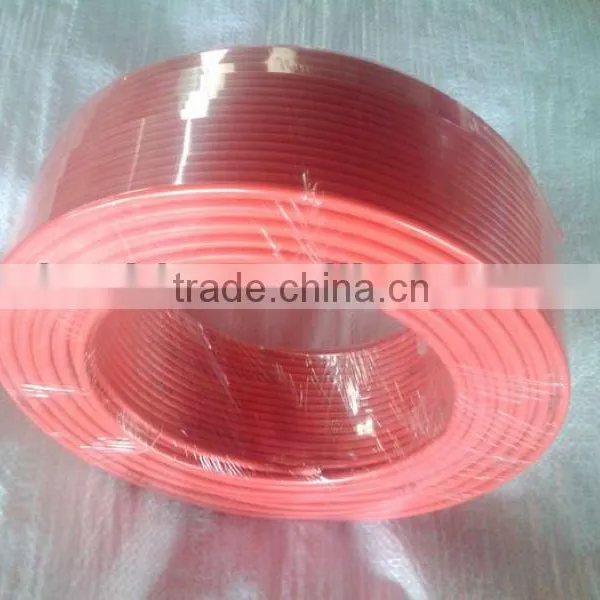

Building Wire: PVC Insulated Copper/aluminum Electrical Wires

Name: Building Wire: PVC Insulated Copper/aluminum Electrical Wires
Brand: San Heng
SKU: 109621469

US$ 0.01 - 0.1 MOQ: 1 Kilometer

Key Specifications

Place of Origin:

Henan, China

Brand Name:

San Heng

Model Number:

BLV

Henan Sanheng Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port or as your request

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name San Heng

Model Number BLV

Type Insulated

Application Other, Construction or Building

Conductor Material Aluminum

Conductor Type Solid

Insulation Material PVC

Specifications

-Variety size, national standard
-Rated voltage: 450/750V
-Prompt delivery, quality assured
-Manufacture more than 20 years

1. Electrical wire are used indoors,aluminum conductor and PVC insulation

2.We can also supply the copper conductor and PVC insulation electrical wire

3. Range of application:this product is fit A.C rated voltage450/750V

4. If you have any problem about the electrical cable and wire,please feel free to connected with me !

5.Specification,Size and Tchnical Date:

BLV 450/750V
Nominal Section(mm2)	No.Dia. of Core(mm)	Max outer diameter(mm)	Conductor resistance at 20C(≤Ωkm)
1.5(A)	1/1.38	3.3	12.1
1.5(B)	7/0.52	3.5	12.1
2.5(A)	1/1.78	3.9	11.8
2.5(B)	7/0.68	4.2	11.8
4(A)	1/2.25	4.4	7.39
4(B)	7/0.85	4.8	7.39
6(A)	7/0.85	4.8	4.91
6(B)	7/1.04	5.4	4.91
10	7/1.35	7.0	3.08
16	7/1.70	8.0	1.91
25	27/2.04	10.0	1.20
35	27/2.52	11.5	0.868
50	19/1.78	13.0	0.641
70	19/2.14	15.0	0.443
95	19/2.52	17.5	0.320
120	37/2.03	19.0	0.253
150	37/2.25	21.0	0.206
185	37/2.52	23.5	0.164
240	61/2.25	26.5	0.125
300	61/2.52	29.5	0.100
