Product Details
| Place of Origin: | Henan, China | Brand Name: | Sanheng | Model Number: | buried cable |
| Insulation Material: | PVC | Type: | Low Voltage | Application: | Underground |
| Conductor Material: | Aluminum | Jacket: | PVC |
Product Description

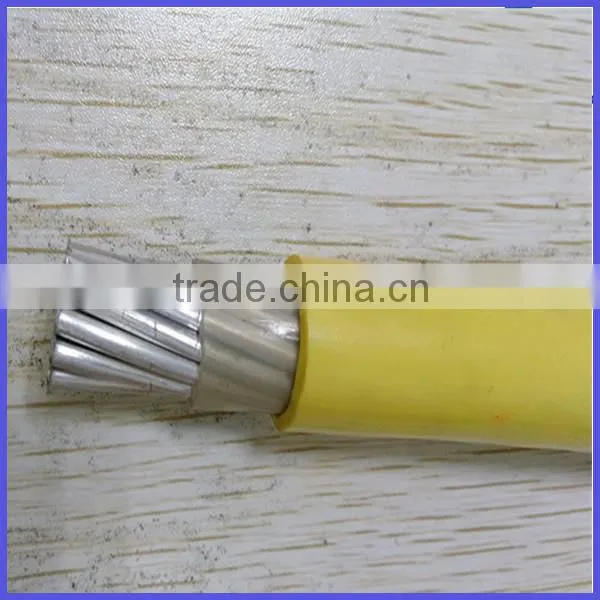

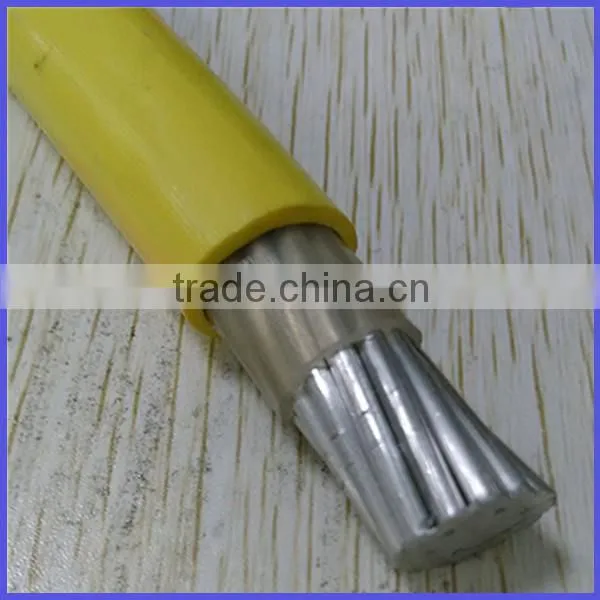

cold resistant buried cable underground buried laying cable aluminum conductor buried cable
1.Reference standard: JB/T2171-1999
2.Application:suitable for fixed distribution lines and electrical facilities for agricultural using able to be buried underground for A/C rated Voltage 450/750V and below.
3.Product characteristics: Max continuous working temperature of conductor should not exceeds 70 oC. Surrouding temperature of laying should not be less than 0 oC.
4.Specification Size and Technical Data:
Nominal cross section | 0.5-50 mm² |
Core number | 2-10 Core |
The max.outer diameter | 1-36 mm |
5.Model and descriptions:
Model | Description |
NLYV | Agricultural buried underground, aluminum core,PE insulated PVC sheathed wire. |
NLYV-H | Agricultural buried underground, cold resistant, aluminum core, PE insulated , PVC sheathed wire. |
NLYY | Agricultural buried underground, aluminum core, PE insulated, black PVC sheathed wire. |
NLVV | Agricultural buried underground, aluminum core, PVC insulated, PVC sheathed wire. |
6.Specification
Cross-section (mm²) |
No.dia/core (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Conductor resistance at 20 oC |
4 | 1/2.25 | 0.8 | 1.2 | 7.39 |
6 | 1/2.76 | 0.8 | 1.2 | 4.91 |
10 | 7/1.35 | 1.0 | 1.4 | 3.08 |
16 | 7/1.70 | 1.0 | 1.4 | 1.91 |
25 | 7/2.14 | 1.2 | 1.4 | 1.20 |
35 | 7/2.52 | 1.2 | 1.6 | 0.868 |
50 | 19/1.78 | 1.4 | 1.6 | 0.641 |
70 | 19/2.14 | 1.4 | 1.6 | 0.443 |
95 | 19/2.52 | 1.6 | 2.0 | 0.320 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
