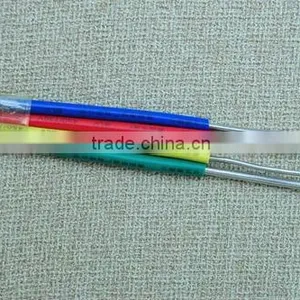

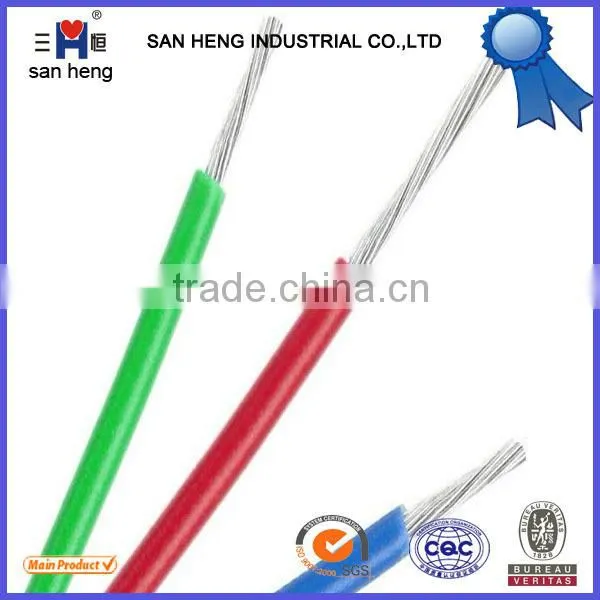

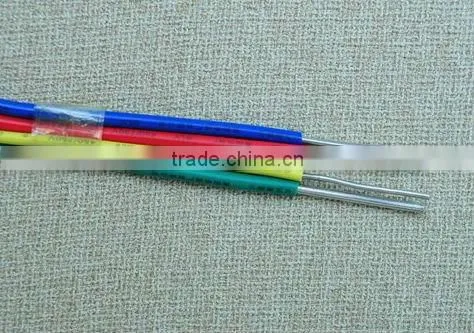

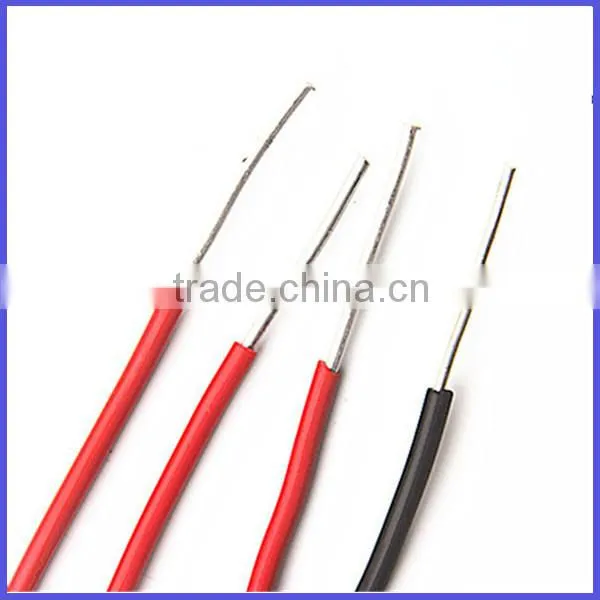

Help CenterSolid/Stranded Core Aluminium Conductor PVC Insulated Electric Wire (BLV)
Related Products
-
ABC Xlpe Aluminum Abc Cable Twisting Cable in DubaiUS$ 0.1 - 0.45MOQ: 5000 Meters -
YJLV,YJV Online Shop China 4 Core Aluminum Armoured Power CableUS$ 0.1 - 2.3MOQ: 5000 Meters
-
Pvc Insulate Stranded Cable Aluminum Stranded CableUS$ 0.5 - 80MOQ: 5 Kilometers
-
Flexible Aluminum Core PVC Insulated Aluminum WireUS$ 0.05 - 30MOQ: 1000 Meters
-
Flexible PVC Coated Aluminum Electrical CableUS$ 0.05 - 30MOQ: 1000 Meters
Aluminum conductor single core cable
1. The Cable is made complying with the national standed and have pass the CCC (China Compulsory Certification) which contains the recondition of national security certificate (CCEE),imports of safety and quality licensing system (CCIB),China Certification Electromagnetic Compatibility (EMC).
2. This BVV PVC insulated cable is suitable for electronic and underground fiels, at the same time, it has high quality and belongs to ROHS compliant products and 100% inspected before shipment.
3. This PVC insulated cable applies to electrical Appliances, instrument and telecom device with rated vlotage up to and including 450/750V.
4. Permissible continuous working temempertaure of cable conductor should not be less than -15 to 70 °c
5. Model and Name:
Type |
Description |
Cores |
Nominal cross-section (mm²) |
BV |
Copper conductor PVC insulated cable |
1 |
0.75-300 |
BLV |
Al conductor PVC insulated cable |
1 |
2.5-300 |
BVR |
Copper conductor PVC insulated flexible cable |
1 |
0.75-300 |
BVV |
Copper conductor PVC insulated PVC sheathed round cable |
1-5 |
0.75-300 |
BLVV |
Al conductor PVC insulated PVC sheathed round cable |
1 |
10-300 |
6. Technical Parameter:
Nominal cross section of conductor(mm²) |
Conductor No. |
|
Nominal thickness of sheath(mm) |
Max. DC conductor resistance at(Ω/KM) |
||
Copper core |
Tinned copper core |
Aluminum core |
||||
0.75 |
1 |
0.6 |
0.8 |
24.5 |
24.8 |
|
1.0 |
1 |
0.6 |
0.8 |
18.1 |
18.2 |
|
1.5 |
1 |
0.7 |
0.8 |
12.1 |
12.2 |
|
1.5 |
7 |
0.7 |
0.8 |
12.1 |
12.2 |
|
2.5 |
1 |
0.8 |
0.8 |
7.41 |
7.56 |
12.1 |
2.5 |
7 |
0.8 |
0.8 |
7.41 |
7.56 |
|
4 |
1 |
0.8 |
0.9 |
4.61 |
4.70 |
7.41 |
4 |
7 |
0.8 |
0.9 |
4.61 |
4.70 |
|
6 |
1 |
0.8 |
0.9 |
3.08 |
3.11 |
4.61 |
6 |
7 |
0.8 |
0.9 |
3.08 |
3.11 |
|
10 |
7 |
1.0 |
0.9 |
1.83 |
1.84 |
3.08 |
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
