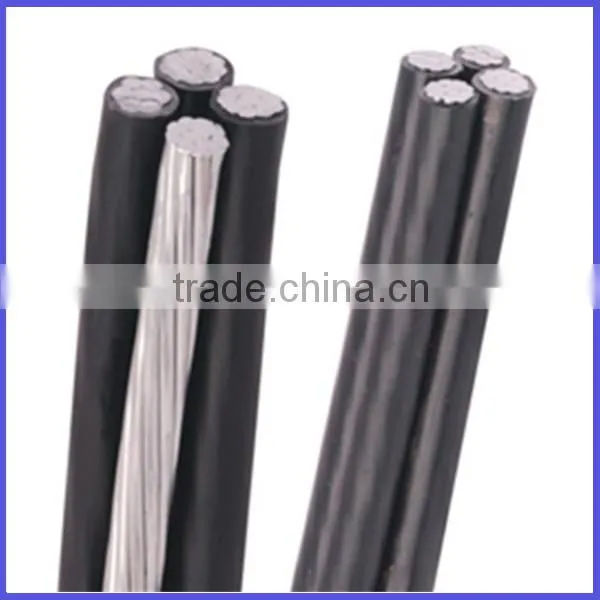

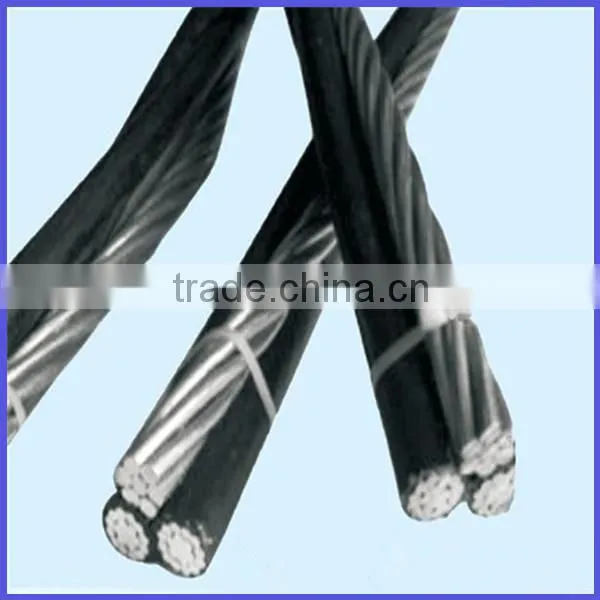

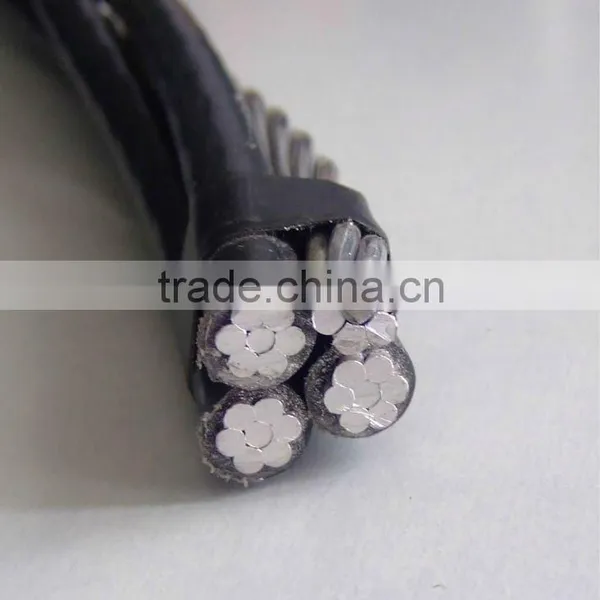

JKV overhead application and insulated type wire
Product Details:
Insulation Material :PVC or XLPE
Application: Overhead
Conductor Material :copper or aluminum
Place of Origin: Henan, China
Brand Name: Sanheng
Model Number: ABC, JKLYJ, JKLV
Our overhead insulated cable have formed a system, such as single core, two-core, three core and four core. There are conductors of aluminium, aluminium alloy or aluminium steel-reinforced. We can manufacture the overhead insulated cable not only in accordance with China`s standard GB12527-90 but also the other standards and special requiement by the custormers.

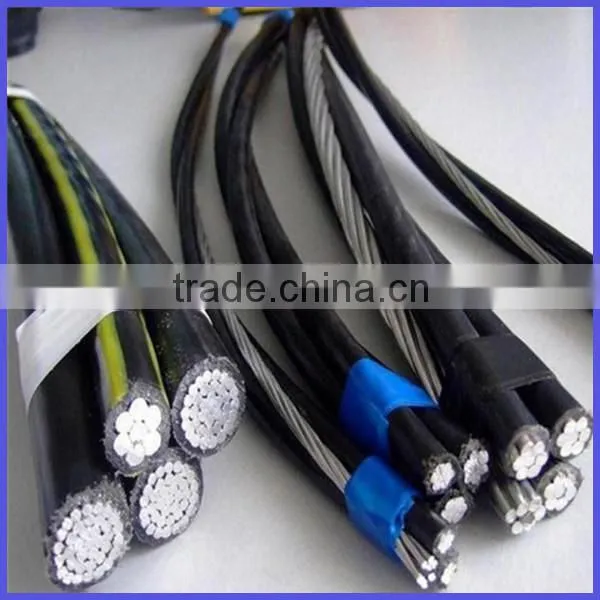

JKV overhead application and insulated type wire
Nominal cross-section area (mm2) |
Conductor structure |
Insulation material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx.weight (kg/km) |
Packing meters per drum |
||
Phase (Compacted AL) |
Neutral(bare ACSR) |
|||||||
(No./mm) |
Aluminum (No./mm) |
Steel (No./mm) |
||||||
1x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
pvc |
1.2 |
12.5 |
121.9 |
250-4000m |
1x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
14.9 |
182.2 |
250-4000 |
1x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
17.5 |
254.7 |
250-3500m |
1x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
23.6 |
382.2 |
250-3000m |
1x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
27.6 |
528.2 |
250-3000m |
2x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
|
1.2 |
14.2 |
187.6 |
250-4000m |
2x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
16.7 |
273.8 |
250-3500m |
2x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
19.7 |
386.9 |
250-3500m |
2x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
26.1 |
617.2 |
250-3000m |
2x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
30.5 |
850.9 |
250-3500m |
3x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
29.7 |
1024.3 |
250-3000m |
3x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
34.6 |
||

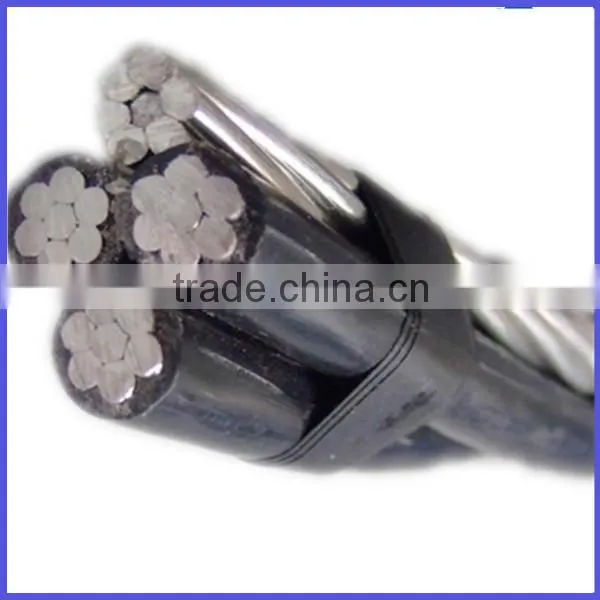

JKV overhead application and insulated type wire
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.

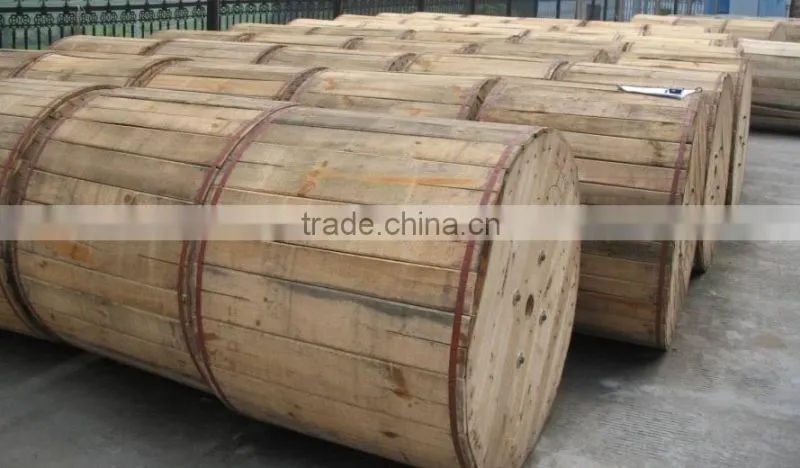

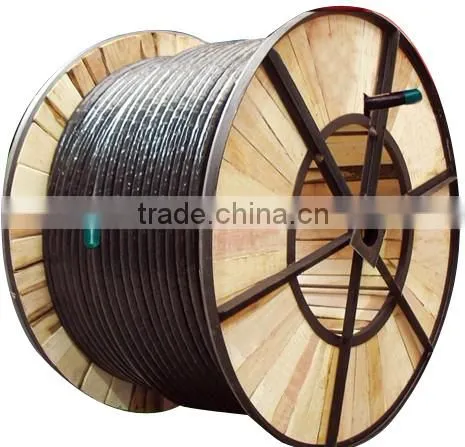

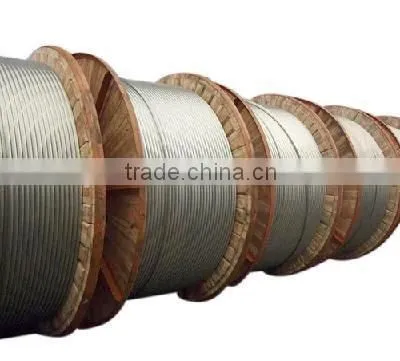

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
