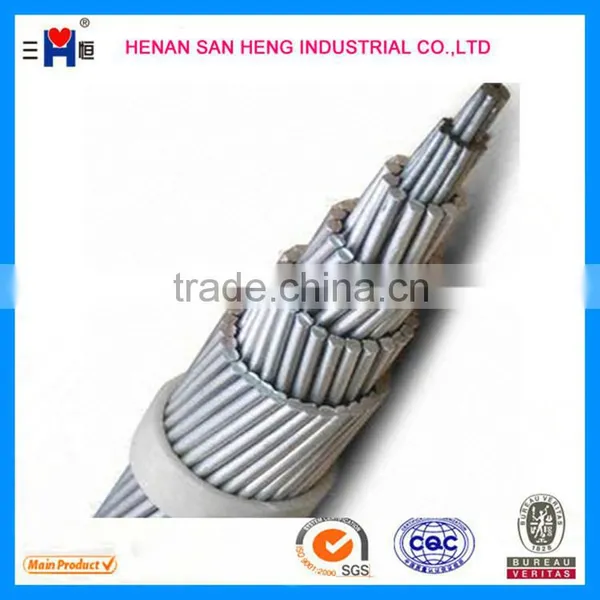

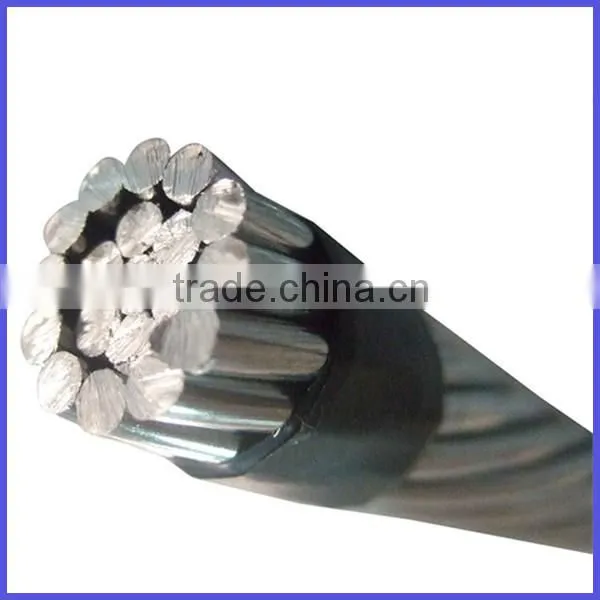

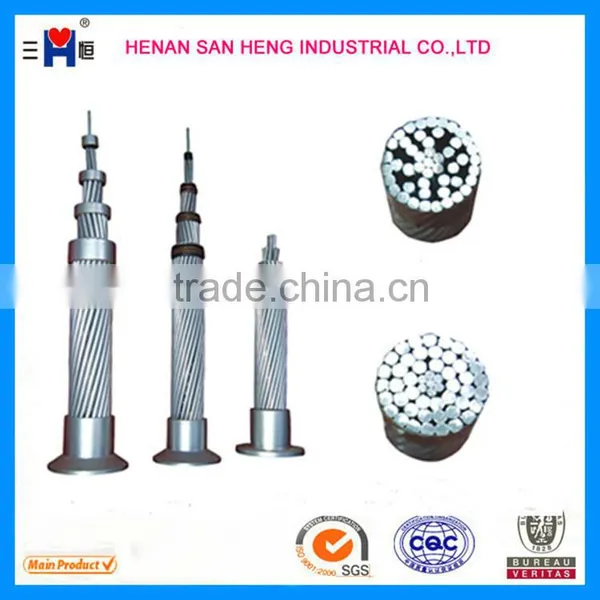

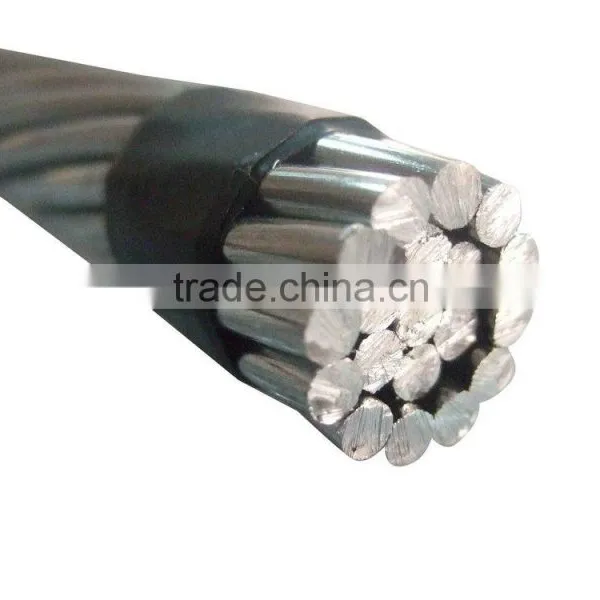

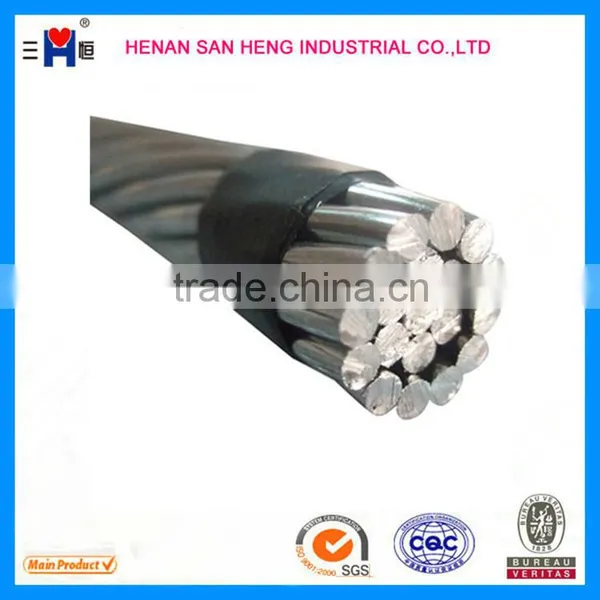

ACSR aluminum wire price
Constructure:

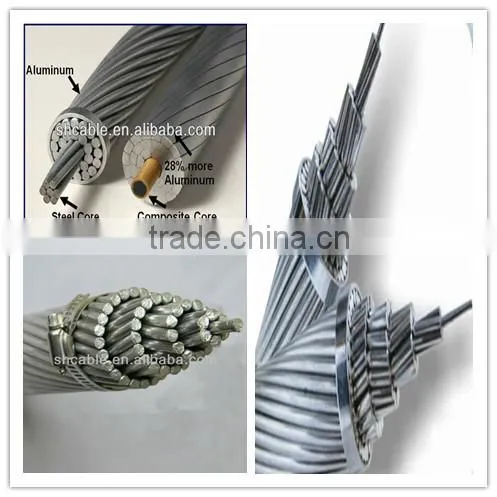

ACSR aluminum wire price , concentrically stranded with steel core. Core wire for ACSR is available with class A, B, or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
Application:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Standards:
All the products of ACSR aluminum wire price can perfectly meet requests of different standards. we can design and manufacture special cables according to the required standards of customers, such as: GB, IEC, BS, ASTM, JIS, DIN CRS.
ACSR aluminum wire price specification:
|
Nominal cross section aluminum/steel ( mm²) |
Structure (no./diameter) ( mm ) |
Out diameter ( mm ) |
D.C.resistor at 20 ( Ω/km ) |
Calculated breakingloadN |
Calculated weight ( kg/km ) |
|
aluminum |
steel |
|||||
|
10/2 16/3 25/4 35/6 |
6/1.50 6/1.85 6/2.32 6/2.72 |
1/1.50 1/1.85 1/1.32 1/2.72 |
4.50 5.55 6.96 8.16 |
2.706 1.779 1.131 0.8230 |
4120 6130 9290 12630 |
42.9 65.2 102.6 141.0 |
|
50/8 50/30 |
6/3.20 12/2.32 |
1/3.20 7/2.32 |
9.60 11.60 |
0.5946 0.5692 |
16870 42620 |
195.1 372.9 |
|
70/10 70/40 |
6/3.80 12/2.72 |
1/3.80 7/2.72 |
11.40 13.60 |
0.4217 0.4141 |
23390 58300 |
275.2 511.3 |
|
95/15 95/20 95/55 |
26/2.15 7/4.16 12/3.20 |
7/1.67 7/1.85 7/3.20 |
13.61 13.87 16.00 |
0.3058 0.3019 0.2992 |
35000 37200 78110 |
380.8 408.6 707.7 |
|
120/7 120/20 120/25 120/70 |
18/2.90 26/2.38 7/4.72 12/3.6 |
1/2.90 7/1.85 7/2.10 7/3.60 |
24.50 15.07 15.74 18.00 |
0.2422 0.2496 0.2345 0.2364 |
27570 41000 47880 98370 |
379.0 466.8 526.6 895.6 |
|
150/8 150/20 150/25 150/35 |
18/3.20 24/2.76 26/2.70 30/2.50 |
1/3.20 7/1.85 7/2.10 7/2.50 |
16.00 16.67 17.10 17.50 |
0.1989 0.1980 0.1939 0.1962 |
32860 46630 54110 65020 |
461.4 549.4 601.0 676.2 |
185/10 |
18/3.60 |
1/3.60 |
18.00 |
0.1572 |
40880 |
584.0 |
ACSR aluminum wire price
Application of the ACSR aluminum wire price .

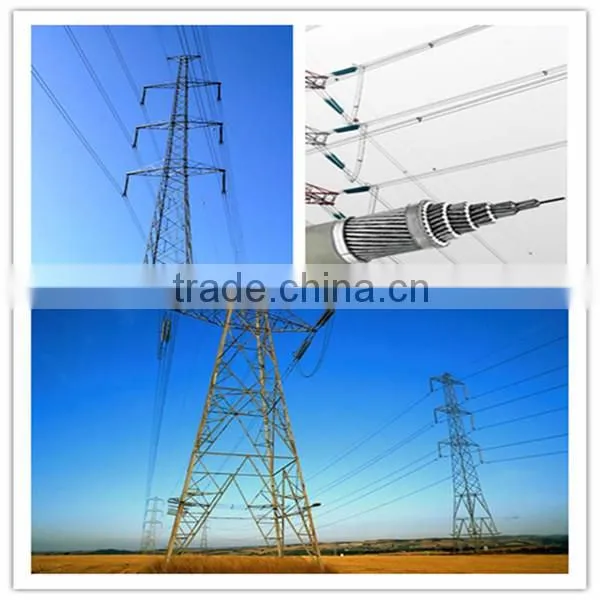

ACSR aluminum wire price have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And ACSR conductor bare conductor also suitable for laying across rivers valleys and the places where special geographical features exist.
The ACSR aluminum wire price production can be arranged according to customers requirements for material standard,etc.
welcome to inquire the ACSR aluminum wire price.
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.

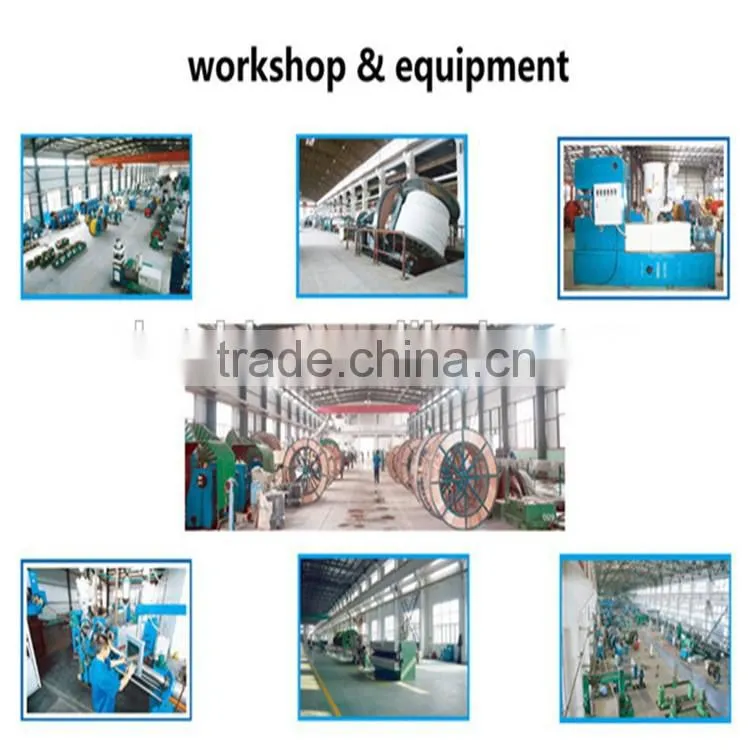

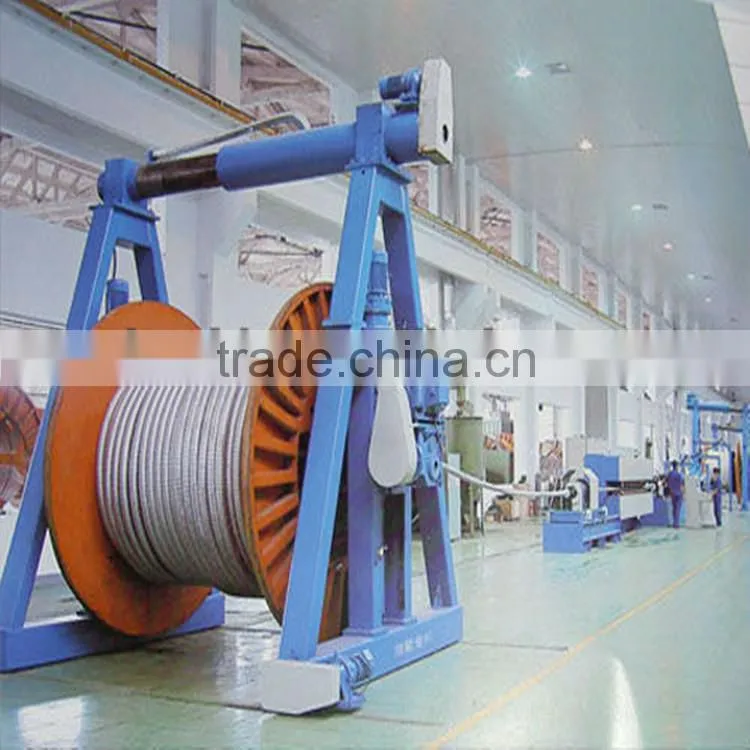

The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, firstclass technicians, Elite team, high quality workers.
ACSR aluminum wire price packing
1 You inquiry replied in hours.
2 Your label design in the requirement ready in 2 days.
3 Conductors 100% inspected in accordance with Standard.
4 Products remake or refund guarantee due to quality issue.
5 Prompt shipment ,cargoes loading photos sent to you by e—mail.
6 Fast ,responsible and sincere after—sale service.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
