Fiber Splice Protection Sleeves:
Fiber optic heat shrink

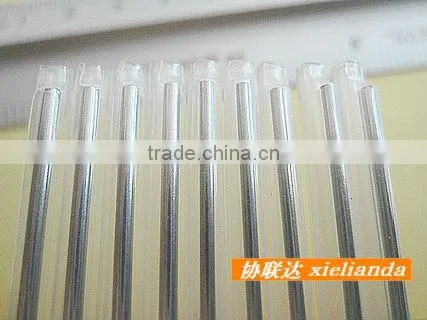

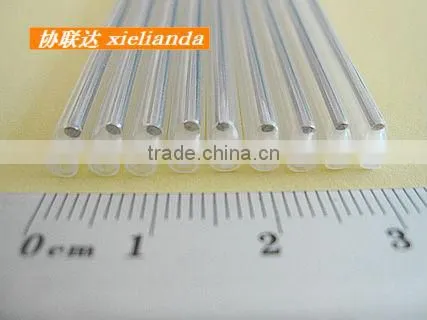

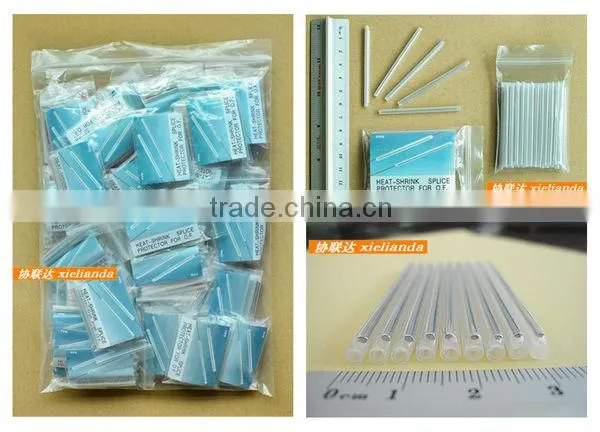

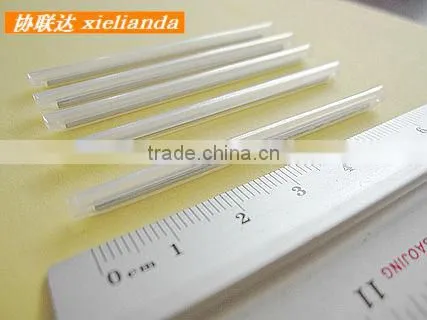

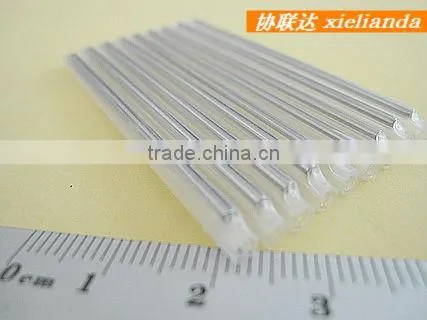

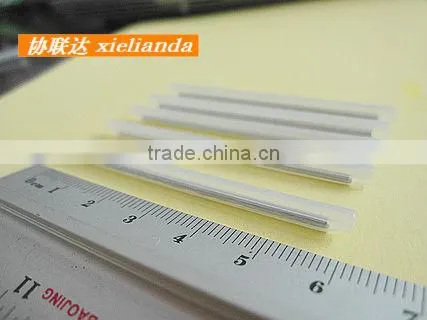

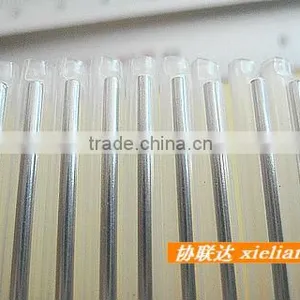

A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiberoptical splices.
Features:
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment
Operating temperature :-45 °C to + 100 °C
Minimun fully recovery temperature : 120 °C
Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.
1. consist of cross-linked polyolefin, hot fusion tubing and stainless reinforved steel rod .
2. keep optical transmission performance of optical fiber.
3. Provide safe protection to optical fiber splicing.
4. Easily use and avoid any damage to the optical fiber during installation.
5. Sealing structure provides good performance to the splicing in the environment with temperature and humidity

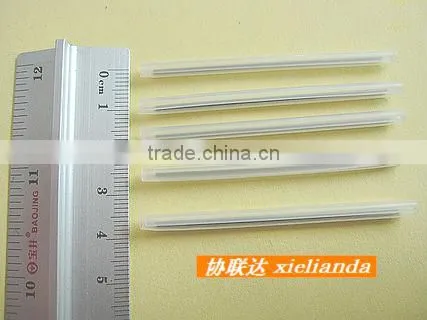

Product data:(Size:Diameter*length Unit:mm)
| NO. | Order Ref.Number. | Heat Shrinkable tube | Fusion tube | Steel Rod(strength) |
| 1 | XLD6030155515 | 3.0*60 | 1.5*60 | 1.5*55 |
| 2 | XLD5030154515 | 3.0*50 | 1.5*50 | 1.5*45 |
| 3 | XLD4530154015 | 3.0*45 | 1.5*45 | 1.5*40 |
| 4 | XLD4030153515 | 3.0*40 | 1.5*40 | 1.5*35 |
| 5 | XLD6025125515 | 2.5*60 | 1.5*60 | 1.2*55 |
| 6 | XLD5025124515 | 2.5*50 | 1.5*50 | 1.2*45 |
| 7 | XLD4525124015 | 2.5*45 | 1.5*45 | 1.2*40 |
| 8 | XLD4025123515 | 2.5*40 | 1.5*40 | 1.2*35 |
| 9 | XLD6025105515 | 2.5*60 | 1.5*60 | 1.0*55 |
| 10 | XLD5025104515 | 2.5*50 | 1.5*50 | 1.0*45 |
| 11 | XLD4525104015 | 2.5*45 | 1.5*45 | 1.0*40 |
| 12 | XLD4025103515 | 2.5*40 | 1.5*40 | 1.0*35 |
Technical Data
| Properties | Test Method | Typical Data |
| Tensile Strength | ASTM D2671 | ≥18 MPa |
| Ultimate Elongation | ASTM D2671 | 700% |
| Dielectric Strength | IEC 243 | 20 KV/mm |
| Dielectric Constant | IEC 243 | 2.5max |
| Longitudinal Change | ASTM D2671 | 0±5% |
| Density | ISO R1183D | 0.94 g/cm3 |
......
Know more update messages, please link: https://img13.fr-trading.com

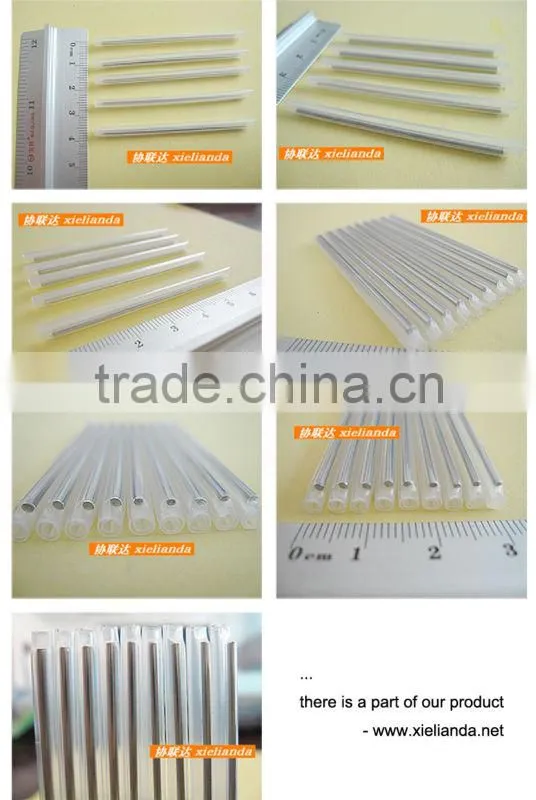

there is a part of our product, if you search similar products please contact with us, we will reply you timely and friendly, and you also can visit our factory. -- xielianda
