Automatic Paper Cake Tray Forming Machine
- Ningbo
- T/T Money Gram
You May Like
-
Paper Cake Tray Making Machine
-
Automatic China Paper Tray Making Machine, China Top and Special Manufacture in Ruian City
-
China Paper Cake Tray Machine, a Special Manufacture in Ruian City
-
Cheap Paper Cake Tray Machine, China Top and Special Manufacture in Ruian City
-
Automatic Paper Cake Tray Machine in India , Speed :300---1200pcs/min
-
Automatic Paper Cake Cup Machine , Speed :300---1200pcs/min,china Special Manufacture
Product Details
| Condition | New | Product Type | Paper Plate Machine | |
| Processing Type | Other, paper forming | Place of Origin | Zhejiang, China | |
| Brand Name | Bonjo | Model Number | BJ-CTA | |
| Voltage | 220V or 380V | Power(W) | 3kw | |
| Dimension(L*W*H) | 1580x1480x1600mm | Weight | 500kgs | |
| Certification | CE | Warranty | 25days | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic Paper cake tray forming machine1.Raw materia:15-80gsm anti-oil paper2. 20-40 beat/minute
3.Total power:220V 50HZ
4
Item: Automatic Paper cake tray forming machine
Model:BJ-CTA
1. machine description
Model BJ-CTA Full Automatic Paper Cake Tray Forming Machine is a self-innovating equipment after assimilating the technology from Italy, it is a first-class equipment at home and abroad with the advantages of simple structure , easy operation, fast production efficiency and reliable performance.
It has the advanced technology such as pneumatic manipulator-collect controlling paper, auto separating paper, mold punching-forming by heat, trays discharging etc.
Easy exchanging molds to make different sizes paper trays and aluminium foil trays.
It is a ideal equipment of making paper cake trays,paper food trays, paper cake cups, paper food dishes, cake plates, cake dishes and containers etc.
2.main technical data
Main technical data | ||
1. | Paper size | Φ50--Φ120 mm (open paper) (mold exchangeable) |
2. | Raw material | 15---80gsm Anti-oil paper(Greaseproof paper), aluminium foil paper or other |
3. | Produce Speed | 20--40 beat/minute, 15--35 pcs/beat ,it is decided by paper thickness |
4. | Total power | 220V 50Hz ,3 kw or 380V 50HZ, 3kw |
5. | weight | 500 KG |
6. | Overall size | 1580×1480×1600 mm |
7. | Air supply | Air pressure 0.6MPa ,air out-put : 0.3 m3/minute |
8. | Need to buy An air compression | |

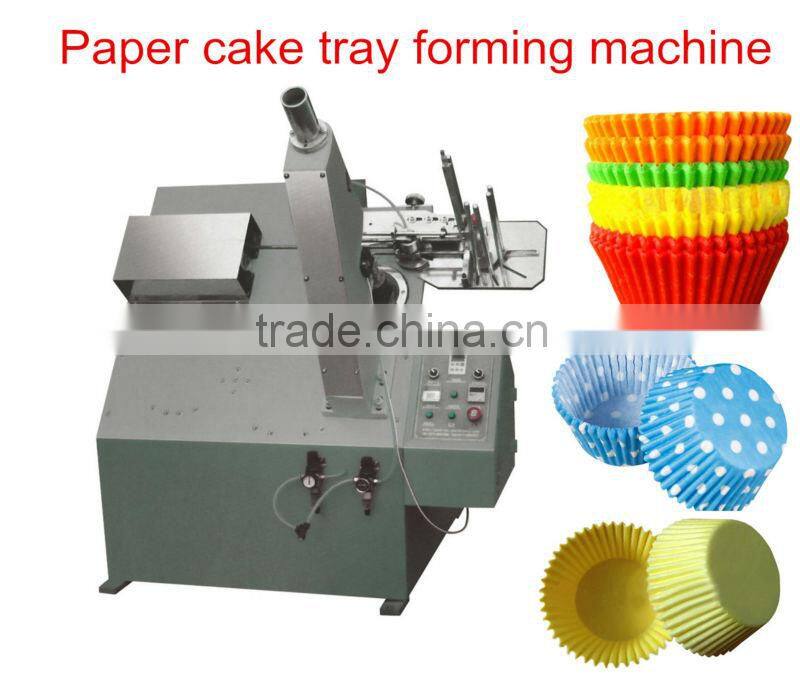

Picture of machine:

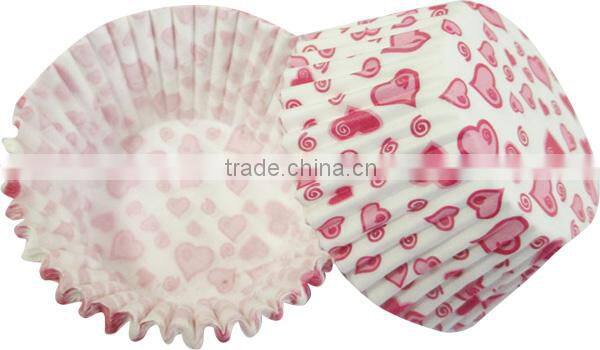

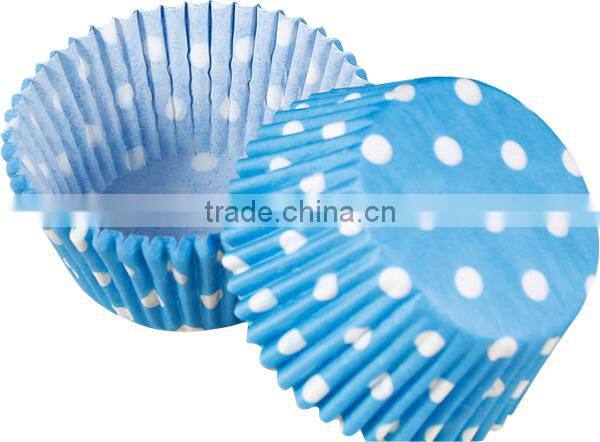

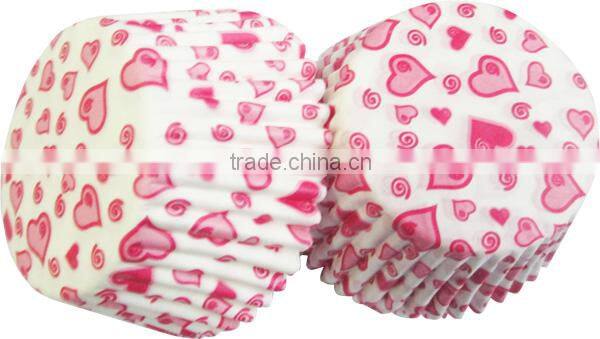

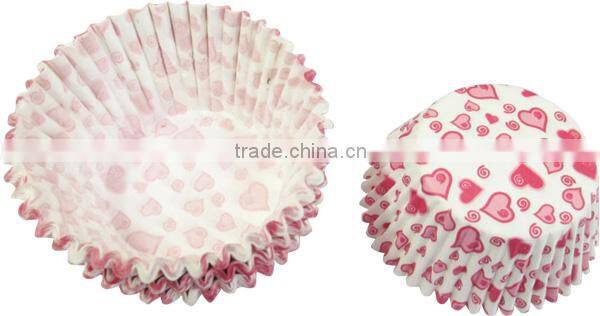

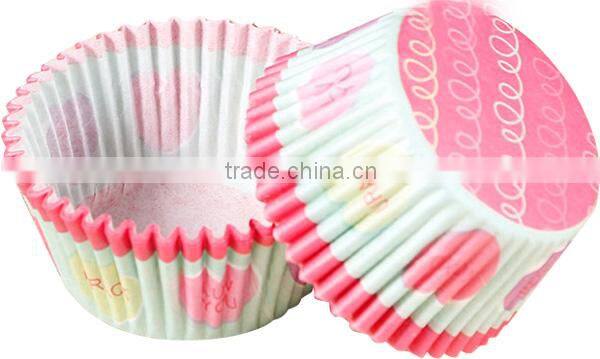

Samples as follows:
Packing:
Shipping:
