Specifications
1.Devulcanizer2.Atmospheric pressure and high temperature
3.Heating method:electromagnetic/heat conducting oil;
4.Safety
Introduction

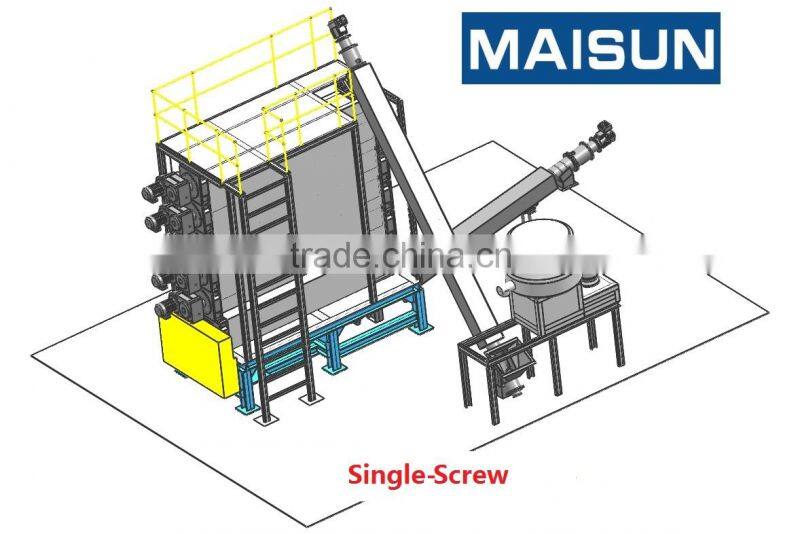

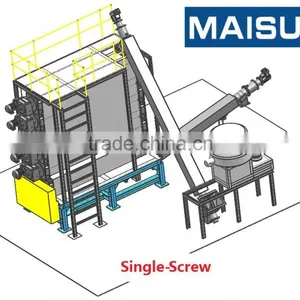

MSR Devulcanizer adds the softener to waste vulcanized rubber powder and activation, at atmospheric pressure under the condition of high temperature, makes the part of the S = C, S = S disconnected to achieve the purpose of the plasticization. Main components: the main heating system, automatic control system, cooling system and batching system,etc.
Tire Rubber Powder manufacturing Process
Characteristic
1. Environmental protection and energy saving: no waste water, waste gas, using circulating water cooling. Plasticizing powder
consumption per ton of 100-170KW;
2. Safety: atmospheric pressure conditions of production, the operator feeding on the ground;
3. Easy operation: PLC control, man-machine interface operation;
4. Each module has a real-time measurement value of feeding, discharging, water temperature into the PLC control system;
5. Each module individually sets temperature, temperature error within ± 1 °C;
6.Using electromagnetic heating;
7.Products do not stick on conveyer, no need to clean up, with production while cleaning function;
8.Process parameters of memory function, memory function formula, etc;
9.Easy installation and maintenance, safe and reliable and remote maintenance.
Technical Data
| Model | MS RS08 |
| Production Capacity(kg/h) | 300-450 |
| Heating Method | Electromagnetic |
| Install Power(KW) | 135 |
| Dimensions(mm) | 9500x4000x6500 |
| weight(kg) | 12500 |
| product range | truck cover tyre; butyl; EPDM |
