Specifications
Biodegradable kraft food tray making machine1.speed :60--160pcs/min
2. over rall size 2950x1320x1500mm
3.with CE

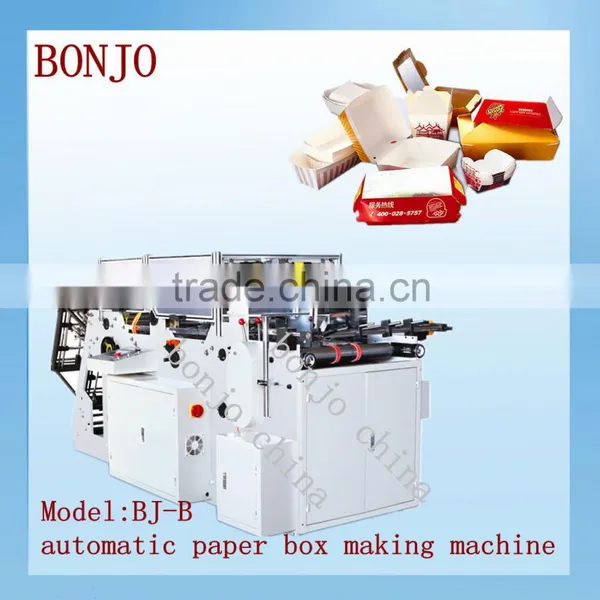

Biodegradable kraft food tray making machine
1.machine description
It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.
with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
2.Technical specifications:
Produce speed |
60—160pcs/min (different paper box shapes, the speed is different ) |
Raw material |
200—600gsm card board /ivory paper/ corrugated paper thickness :1.5mm |
Carton size |
Box length: L 100-450mm and angle: 5° -40° |
Packing size |
3600x1400x1700 mm |
Total power |
380v,50hz, 4.5kw |
The paper box made by this machine can be used in packing of KFC and Mcdonald s or other food
3. Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.
4. products samples
5. key parts(sell points )
1).Electrical components we use international famous brands such as japan omron, French Schneider, Germany Siemens , delta etc import parts. And we use PLC programmable control and touch screen interface
2). Device for feeding Water-based adhesive (glue)
high efficiency and high precision to feeding glue and the sealing edge of the carton can be adjustable , its device design reasonable ,compact form and running steadily ,easy and convenience to clean .
3).Finished Carton outing device
Full automatic carton outing device(feeding ,collection ,stacking), and fixing with counting,convenient for packing and save of labors
4).Photoelectric failure-detecting system is available, if there is no papers or paper feeding blocking , the machine will stop automaticly by itself, so, it can reduce the cost consume ,and increase more safety performance
6. shippment and delivery
delivery time : 30 days shippment after received your deposits.
packing with wooden case
7.GUARANTEE :
one year .during this period ,any parts damaged caused by machineself, the seller will repair/send the spare parts for free. after one year,the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
8. installation and training
if customer request, we will send our technician to install and train operation, but all costs should be covered by buyer.( including getting visa,2-way air tickets,food .hotel.local traffic ,translator ,salary usd100/day ) .
