corrugated carton box make machine

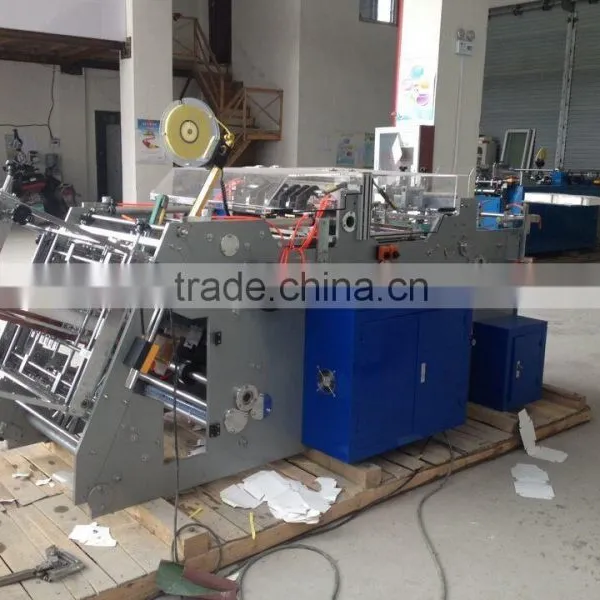

1.machine description
It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.
with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
2.Technical specifications:
Produce speed |
60—160pcs/min (different paper box shapes, the speed is different ) |
Raw material |
200—600gsm card board /ivory paper/ corrugated paper thickness :1.5mm |
Carton size |
Box length: L 100-450mm and angle: 5° -40° |
Packing size |
3600x1400x1700 mm |
Total power |
380v,50hz, 4.5kw |
3. Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.

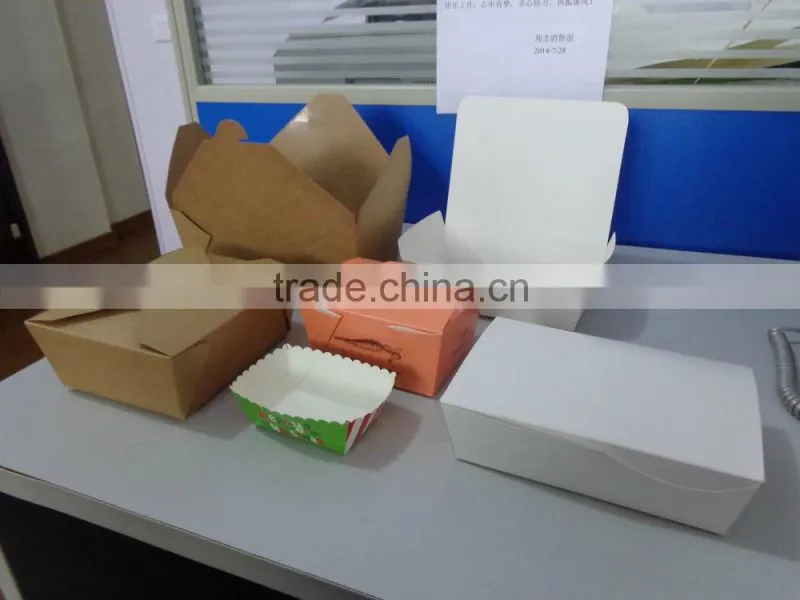

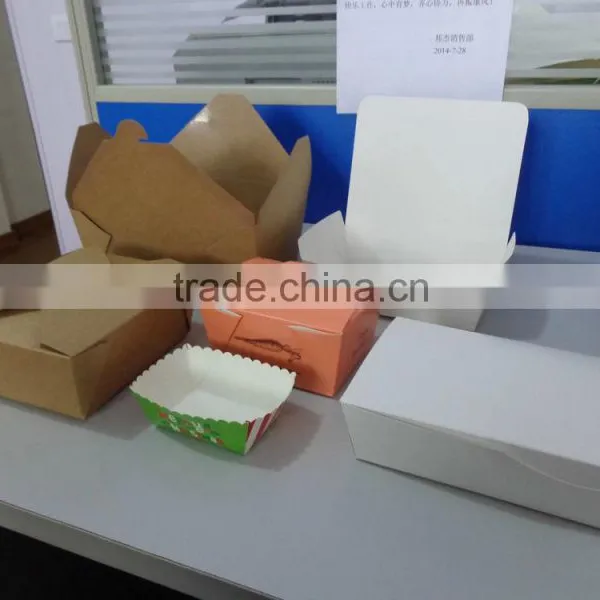

4. products samples

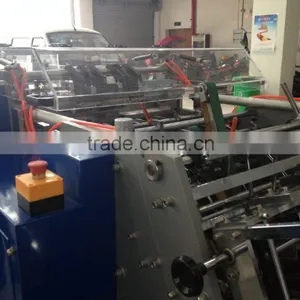

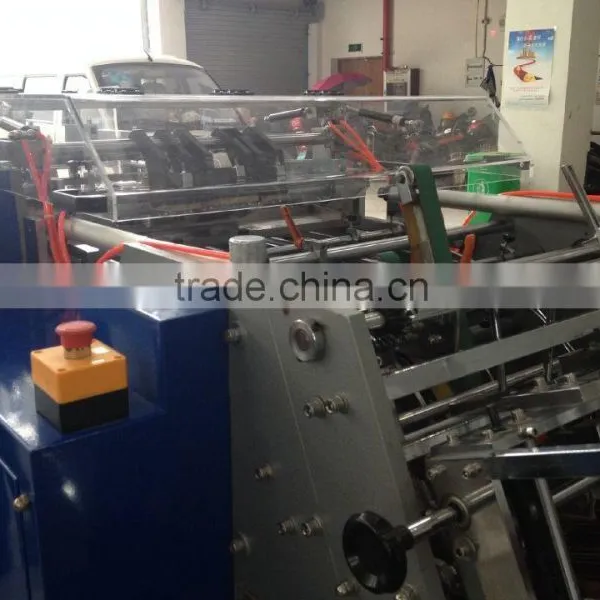

5. key parts(sell points )
1).Electrical components we use international famous brands such as japan omron, French Schneider, Germany Siemens , delta etc import parts. And we use PLC programmable control and touch screen interface
2). Device for feeding Water-based adhesive (glue)
high efficiency and high precision to feeding glue and the sealing edge of the carton can be adjustable , its device design reasonable ,compact form and running steadily,easy and convenience to clean .

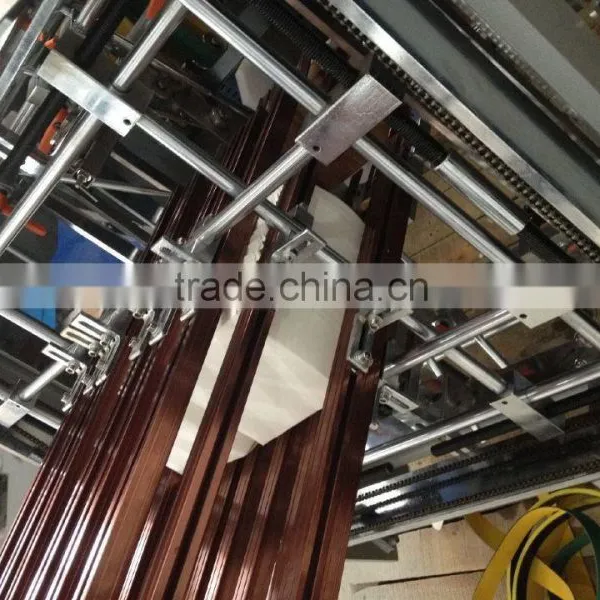

3).Finished Carton outing device
Full automatic carton outing device(feeding ,collection ,stacking), and fixing with counting,convenient for packing and save of labors
4).Photoelectric failure-detecting system is available, if there is no papers or paper feeding blocking , the machine will stop automaticly by itself, so, it can reduce the cost consume ,and increase more safety performance

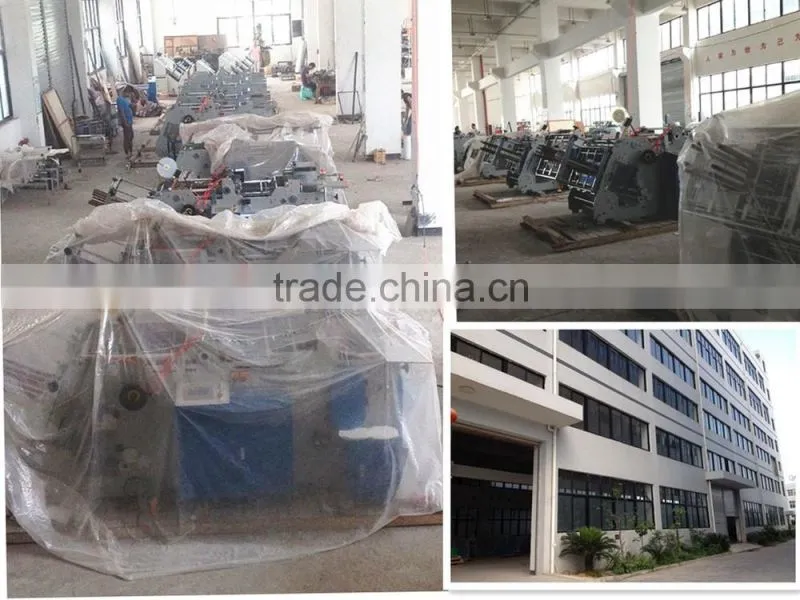

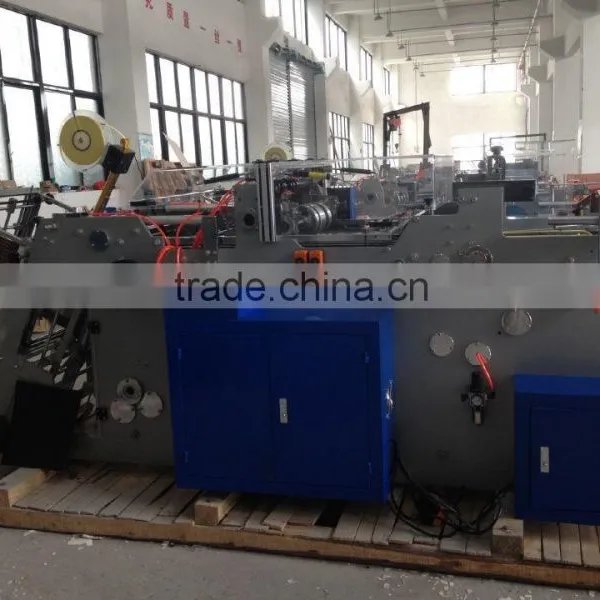

6. working shops photos
7.main questions answered :

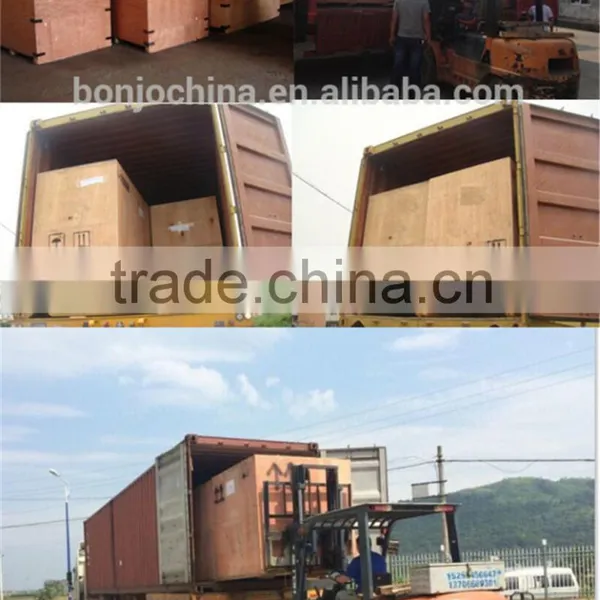

Q1. what is the Packing way of the machine?
answer : usual , With wooden cases packing or iron tray packing
Q2. whatis the machine delivery time ?
answer : As usual, 25--30 days shippment after received your deposits.
Q3. how about the machine Guarantee?
answer : One year. During this period, any parts damaged caused by machineself, the seller will repair/send the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.
Q4. what about the machine Installation and training ?
answer : If customer request, we will send our technician to install and train operation, but all costs should be covered by buyer. ( including getting visa, 2-way air tickets, food. Hotel. Local traffic, translator, salarys ).
Q5.what is the terms of payment ?
answer : by 100%T/T , 30% of deposits should be paid in advanced , then 70% of balance should be paid before shippment . or IL/C at sight , both are ok .
Q6. what about the whole produce line for box making?
answer : the whole produce line include the printing machine , die cutting machine , box forming machine , boxes packing machine , any interested ,welcome to ask me freely
