Specifications
High Speed carton Box erecting Machine1.speed :60--160pcs/min
2. over rall size 2950x1320x1500mm
3.Material: 200-600g/m2

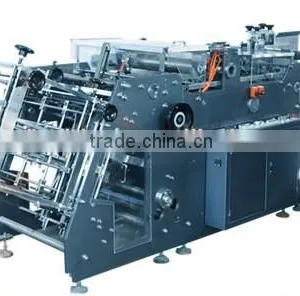

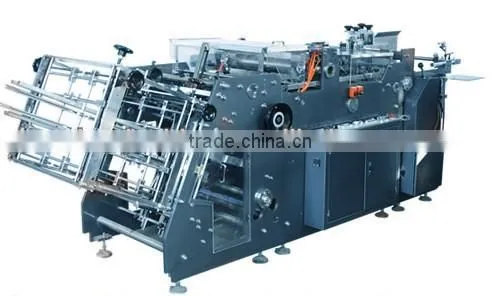

High Speed carton Box erecting Machine
1.machine description
It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.
with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
2.Technical specifications:
1. Box length L 100-450mm and angle: 5° -40°
Box width B 100-580/385mm and cardboard weight: 200G/M2-600g/ m2
Edge height H 15-200mm and corrugated paper thickness: 1.5mm
Covering area L800 (1.2M × 4M) L1000/2 (1.5M × 4 M)
Packaging dimensions
(1) Length: 2.95M Width: 1.32M Height: 1.50M
(2) Length: 1.25M Width: 1.10M Height: 0.85M
Weight L800 (approx 2 tons). L1000/2 (approx 2.5 tons)

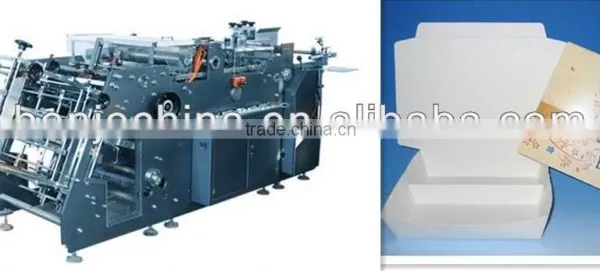

Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald. S or other
Erecting Machine(single head) Hamburger Press printing machine

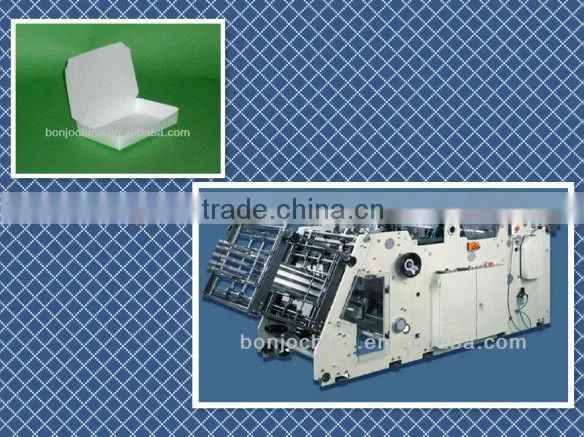

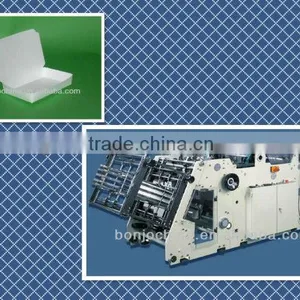

Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald s or other food
3. Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.

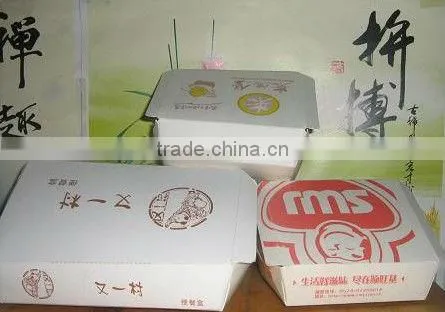

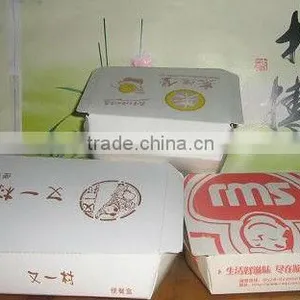

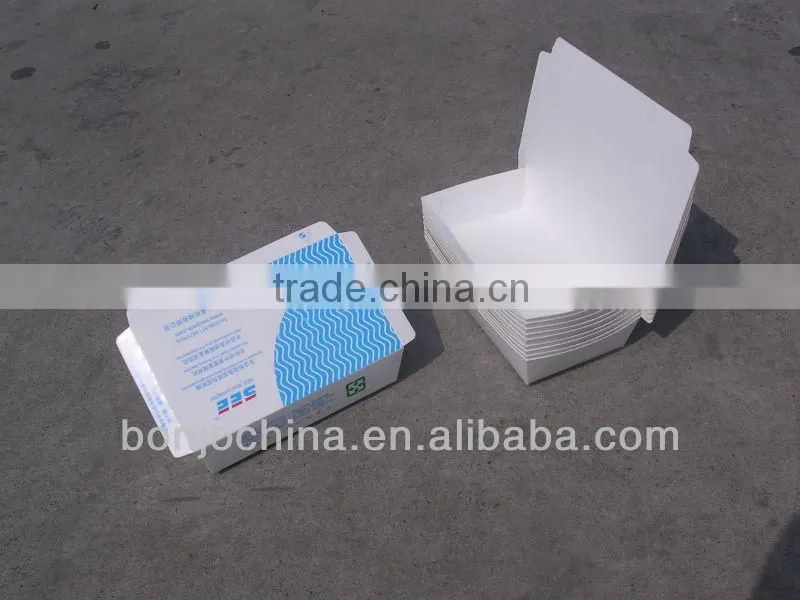

4. products samples
5. shippment and delivery
