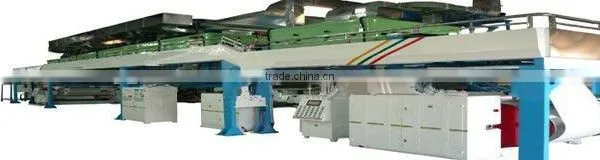

Jet Printing Materials Coating Line

Specifications

Features:

1. The dryer uses the stainless steel as endophragm. The max. temperature control is up to 200°C. Using multistage controlling system, which can accuracy control each section of dryer according to technical requirements.

2. The tensile strength is controlled fully automatic.; using the frequency conversion velocity modulation system or the digital direct-current velocity modulation system. Multi-spot synchronization controller is used to ensure the machine synchronously operated.

3. EPC is adopted so as to ensure that the edges of finished product are orderly and smooth.

4. Joining automatically during winding and unwinding process; non-stop production.

5. The multi-purpose combined coating types result in high accuracy and super stable coating.

Main Technical Parameters:

Max. Coating Width : 1600mm

Max. Unwinding Diameter : 1000mm

Max. Rewinding Diamter : 1000mm

Total Power : 70kw

Dryer Length : 4m (adjustable)

Machine Speed : 0-80m/min

Heating Type : Steam/Hotblast/Thermal Oil/Electrical, etc
