TPU Sole Injection Molding Machine JL-208-4S
Special Feature |
Mold Carrier Unit
1. Mold thickness automatically compensated hydraulic clamping system.
2. Three position (0°-90°) mold rotating head, providing multi mode production capability for single color and two color unit soles.
3. Unique rotating head positioning mechanism, providing precise and fast mold positioning.
4. Upper and bottom molds ejector units for easy, fast and distortion free sole removal.
5. Automatic sliding unit for flexible and easy sole collection and for easy insertion parts placement.
6. Separate blowing system on three faces rotating head and bottom mold plate, providing easy soles and sprue removal.
7. Suitable for molding TPU in multi-color unit soles by injection system.

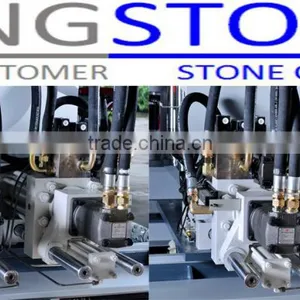

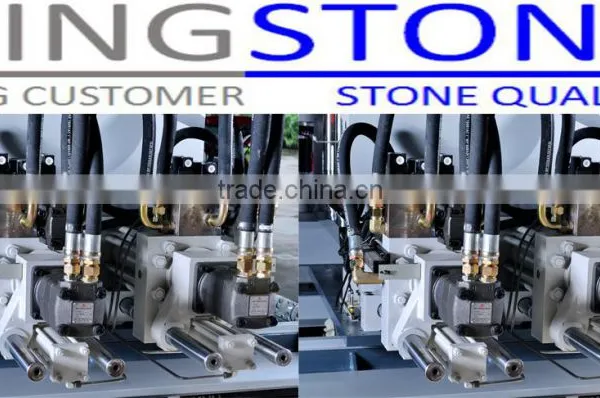

Feeding Unit
1. Electric motor driven injection point height adjustment system, suitable for different size of molds.
2. Adjustment or injection point with horizontal leveling, no material heap at channel or extruders.
3. Precise barrel temperature control with P.I.D. control system.
4. It is easy and fast for material changing with less waste.

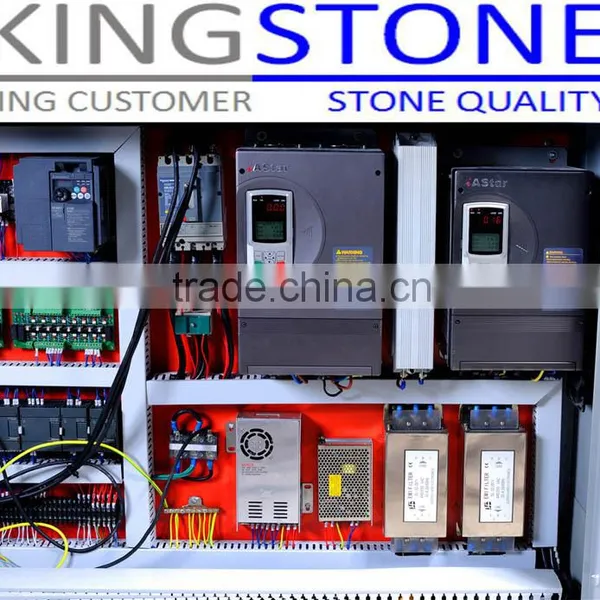

Electric Control System
1. With self diagnosis analysis system, current status of machine operation can be monitored to insure smoothly production.
2. Providing with work file records, processing parameters for different molds can be saved with individual files,
production is more efficient.
Specifications | |||||||
Machine model |

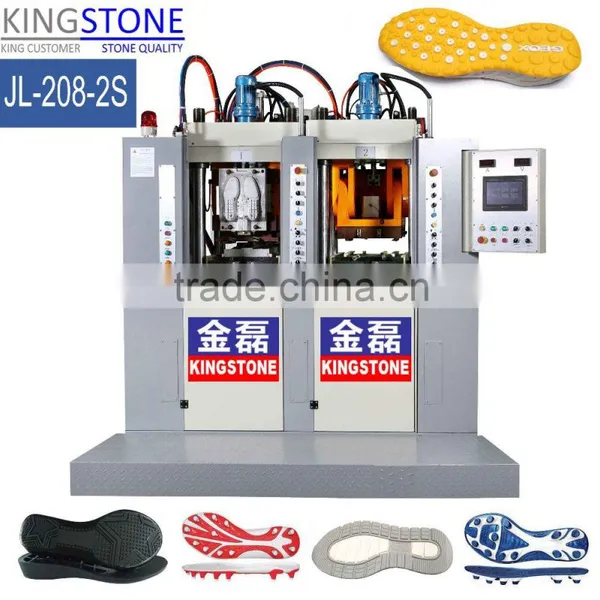

JL-208-2S |
JL-208-3S |
JL-208-4S |
JL-208-6S |
|||
Mould-clamping Unit | |||||||
Work station |
|
2 |
3 |
4 |
6 |
||
Clamping force |
TON |
220 |
220 |
220 |
220 |
||
Opening stroke |
MM |
350 |
350 |
350 |
350 |
||
Mould dimension |
MM |
300*400 |
300*400 |
300*400 |
300*400 |
||
Mould height |
MM |
100-200/150-250 |
100-200/150-250 |
100-200/150-250 |
100-200/150-250 |
||
Rotating head |
. |
0°-90° |
0°-90° |
0°-90° |
0°-90° |
||
Injection Unit | |||||||
Injector |
SET |
2/4 |
2 |
2 |
2 |
||
Screw diameter |
MM |
65 |
65 |
65 |
65 |
||
Screw L/D ratio |
L/D |
22 |
22 |
22 |
22 |
||
Max.injection volume |
cm3 |
650-1000 |
650-1000 |
650-1000 |
650-1000 |
||
Injection pressure |
Kg/cm² |
650 |
650 |
650 |
650 |
||
Screw rotation speed |
R.P.M |
0-185 |
0-185 |
0-185 |
0-185 |
||
Electricity Consumption | |||||||
Heating power of injector |
KW |
11*2/11*4 |
11*2 |
11*2 |
11*2 |
||
Hydraulic unit motor |
KW |
22.5 |
22.5 |
22.5 |
22.5 |
||
Total electric consumption |
KW |
46/68 |
46 |
46 |
46 |
||
Temperature control |
Section |
3+1 |
3+1 |
3+1 |
3+1 |
||
Dimension and Weight | |||||||
Machine dimension(L*W*H) |
M |
3.0*3.5*2.8 |
4.6*3.5*2.8 |
6.3*3.5*2.8 |
9.6*3.5*2.8 |
||
Machine weight |
TONS |
11/12 |
14.5 |
18 |
24 |
||
*Note:Above data only for reference. | |||||||
