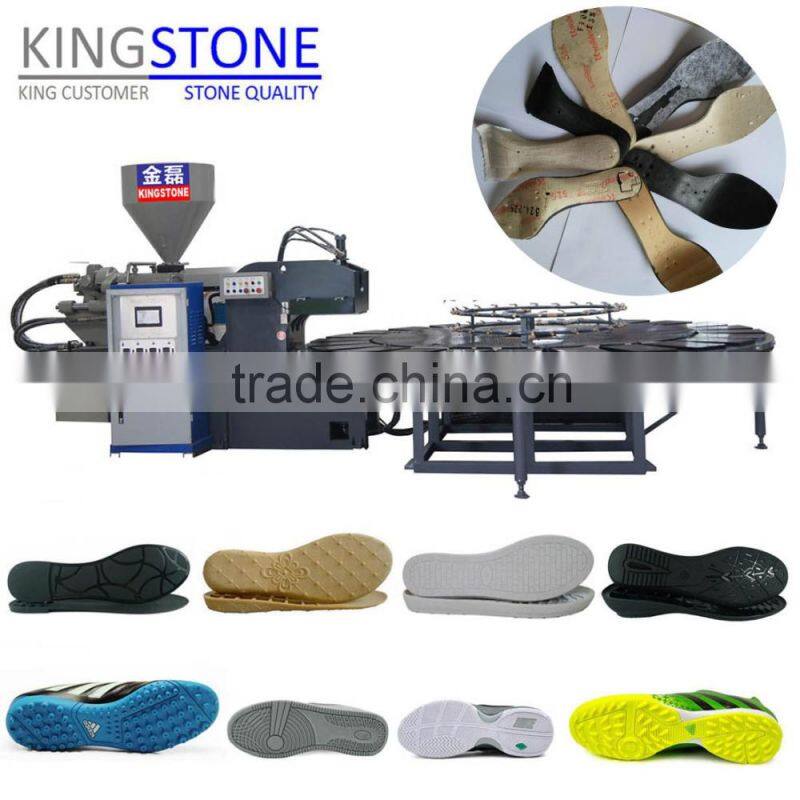

PP Insole Molding Machine JL-268-20S
- 1000 Set / Sets per Month
- Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- KKA630A High quality Cool press insole molding machine
- KKA80T High quality EVA Small foam molding machine
- KKA30T EVA Printing pressure automatic molding machine,shoe making machine
- KKA720 Good quality Cool and hot press molding,insole moulding machine
- KKA530B High quality insoles machine for shoe
- KKA550 Pressing time Shoes insole moulding machine
Product Details
Condition: | New | Production Capacity: | 100-200pairs/hour | Place of Origin: | Guangdong, China |
Brand Name: | Kingstone | Model Number: | JL-268 | Voltage: | 220v/380v/440v, 220v/380v/440v |
Power(W): | 18.5KW | Dimension(L*W*H): | 6000*3600*2300mm | Weight: | 6500KGS |
Certification: | CE SGS, CE Approved | Warranty: | 2 Years, 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
JL-268 SERIES
PP Insole Molding Machine
Special Feature |
Product: Specialized in producing various kinds of one color outsoles for sport shoes, leisure shoes, slippers,
sandals, man’s and lady’s shoes in general, etc. It is particularly effective to make PP setting inner sole.
Material: Suitable for all kinds of thermoplastic raw materials, foaming or non foaming, such as PP PVC TPR TPU.
1. Computerization in analysis and design, the machine is well in stability and easy for maintenance.
2. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and
promote productivity. Conformed to human engineering in design, it features easy and friendly operation.
3. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling
effect.
4. The multi station mechanism is suitable for numerous molds to work in production line. It saves the time for the
mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
5. Specially designed, the oil pressure circuit board is simple in structure. The function description of various
switches is clearly indicated.
Specifications | ||
Machine model | JL-268-20S | |
Mould-clamping Unit | ||
Work station |
| 20 |
Clamping force | TON | 120 |
Opening stroke | MM | 210 |
Mould dimension | MM | 600*280 |
Height of injection nozzle | MM | 280 |
Injection Unit | ||
Injector | SET | 1 |
Screw diameter | MM | 60 |
Screw L/D ratio | L/D | 20 |
Max.injection volume | cm3 | 600 |
Injection speed | Cm/s | 10 |
Screw rotation speed | R.P.M | 0-200 |
Electricity Consumption | ||
Heating power of injector | KW | 7 |
Hydraulic unit motor | KW | 18.5 |
Total electric consumption | KW | 25.5 |
Temperature control | Section | 4 |
Dimension and Weight | ||
Machine dimension | (L*W*H)MM | 6000*3600*2300 |
Machine weight | KGS | 6000 |
*Note:Above data only for reference. |
Finished Products |
Dongguan Kingstone Machinery Co., LTD. , headquarter located in Dongguan, has been researching and
developing from manufacturing footwear machines as well rubber machines for industrial application.
Kingstone is striving toward larger business scope to provide customers diversified machine designs, perfect
production quality with the best and fast service.
Dongguan Kingstone Machinery Co., LTD.,as one of the famous rotary plastic footwear injection molding machine
manufacturers in the industry, the industry first class rotary injection molding machine r&d and manufacturing base,
over the years with the product variety is complete, personalized type many, quality excellent, and is famous world
without time service in the industry, the product sells in distant markets the world nearly 30 countries and regions,
at the same time also in Turkey, Brazil, India and many other countries set up offices and agents.
