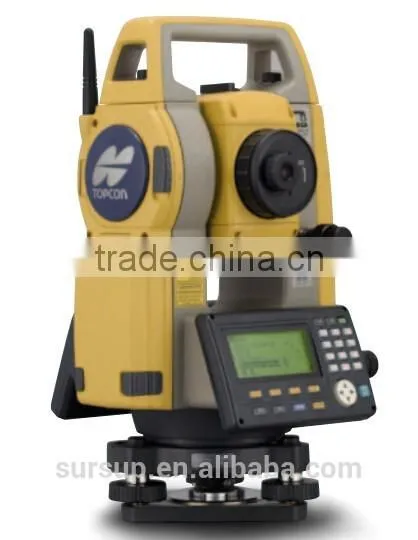

Help CenterTopon ES105 Estacion Total Topcon, With 500m Reflectorless
Related Products
-
Topcon ES Series Total Station ES101 ES102 ES103 ES105 ES107US$ 9,000 - 9,500MOQ: 1 Piece -
Japan Brand Gowin TKS302R Total Station Topcon Brand 2015 Hot SellUS$ 3,050 - 3,200MOQ: 1 Piece
-
Reflectorless Topcon GPT-102R Total StationUS$ 5,200 - 5,400MOQ: 1 Piece
-
SOUTH NTS-962R TOTAL STATIONUS$ 3,350 - 3,660MOQ: 1 Piece
-
SOUTH NTS-352L Total StationNegotiableMOQ: 1 Piece
Specifications
Topcon original ES100 series total station
Model | ES-105 |
Telescope | |
Magnification / Resolving power | 30x / 2.5" |
Others | Length: 171mm , Objective aperture: 45mm (48mm for EDM),Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m, Reticle illumination: 5 brightness levels |
Angle measurement | |
Display Resolution | 1" / 5" |
Accuracy (ISO 17123-3:2001) | 5" |
Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, working range: ±6' / Collimation compensation available |
Distance measurement | |
Laser output | Reflectorless mode: Class 3R / Prism / sheet mode: Class 1 |
Measuring range (under average conditions) | |
Reflectorless | 0.3 to 500m |
Reflective sheet | 1.3 to 500m |
Mini prisms | 2500m |
One AP prism | 1.3 to 5000m |
Three AP prisms | to 6000m |
Display resolution | 0.001m / 0.01ft |
Accuracy (ISO 17123-4:2001) (D=measuring distance in mm) | |
Reflectorless | (3 + 2ppm x D) mm |
Reflective sheet | (3 + 2ppm x D) mm |
AP/CP prism | (2 + 2ppm x D) mm |
Measuring time | Fine: 0.9s, Rapid: 0.7s, Tracking: 0.3s |
Interface and Data management | |
Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight |
Control panel location | On both faces |
Trigger key | On right instrument support |
Data storage | |
Internal memory | Approx. 10,000 points |
Plug-in memory device | USB flash memory (max. 8GB) |
Interface | Serial RS-232C, USB2.0 (Type A, for USB flash memory) |
Bluetooth modem(optional) | Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m |
General | |
Laser-pointer | Coaxial red laser using EDM beam |
Guide light | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m |
Levels | |
Graphic
| 6’ (inner circle) |
Circular level | 10' / 2mm |
Optical plummet | Magnification: 3x, Minimum focus: 0.3m from tribrach bottom |
Laser plummet (option) | 5 brightness level are ready for optimum visibility |
Dust and water protection | IP66 (IEC 60529:2001) |
Operating temperature | -20 to +50℃ |
Size with handle | W191 x D181 x H348mm |
Weight with handle and battery | Approx. 5.6kg (12.3 lb.) |
Power supply | |
Battery | BDC70 detachable battery |
Operating time (20℃) | Approx. 36 hours |
