Help CenterReflectorless Topcon GPT-102R Total Station
Related Products
Specifications

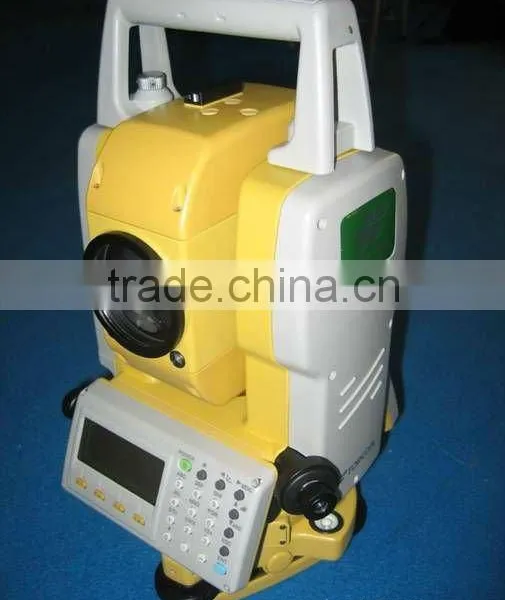

Original Topcon brand total station GPT-102RItem specifics
Place of Origin: Beijing China (Mainland)
Brand Name: TOPCON
Model Number: GPT102R
Color: yellow
Product Description
Specifications
Topcon GPT-102R total station 1.NO Prism 350 meters 2.24,000 point data 3.1 Prism 6500 ft, 2000 meters
Topcon GPT-102R total station
Function:
The new Topcon GPT-102R series total station combines the traditional rugged field-ready quality and accuracy with economical, compact design that is perfect for everyday measuring and positioning applications such as topo and construction layout.
Perfect when combined with FC field controller and software
Features:
1.Economical, value priced measuring solution
2.Rugged, durable, water resistant design
3.Two accuracies to choose from 2 & 5
4.Expanded, Full numeric keypad
5.On board programs & 24,000 point data storage
6.Ideal as a construction stakeout total station
7.Perfect when combined with FC field controller and software
Specifications
| Telescope | |
| Length | 150 Millimeters |
| Objective Lens Diameter | 45mm (EDM:50mm) |
| Magnification | 30x |
| Image | Erect |
| Field of View | 1°30 |
| Resolve Power | 3 " |
| Min. Focus Distance | 1.3 meters |
| Measurement Range | |
| no prism | 350 meters |
| 1 Prism 6500 ft, | 2000 meters |
| 3 Prism 8800 ft, | 2700 meters |
| Measuring Accuracy | |
| Prism Mode | +/-(2mm + 2ppm x D)m.s.e. fine, N/A |
| measurement time 1mm: | 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A |
| Angle Measurement | |
| Method | Absolute Reading |
| Detection | 2 horizontal, 1 vertical |
| Minimum reading | N/A, 1/5 mgon |
| Tilt Correction | |
| Type | Single Axis |
| Method | Liquid surface reflective profile sensor reading type |
| Compensating Range | +/-3' |
| Correction Unit | 1 arc sec, N/A |
