Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > SOUTH NTS-352L Total Station

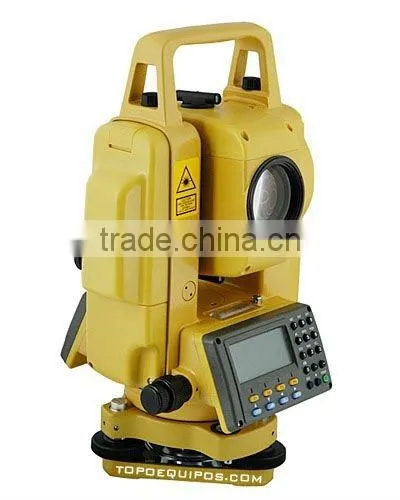

SOUTH NTS-352L Total Station
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
South
Model Number:
NTS-352L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sokkia Set 650RX Total StationUS$ 6,740 - 7,800MOQ: 1 Piece -
SOUTH NTS-342R Total StationUS$ 3,140 - 3,430MOQ: 1 Piece
-
Nikon DTM-322 Total StationUS$ 4,825 - 5,580MOQ: 1 Piece
-
SOUTH NTS-332R TOTAL STATIONUS$ 2,000 - 2,190MOQ: 1 Piece
-
SOUTH NTS-362R Total StationUS$ 2,445 - 2,660MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
South
Model Number
NTS-352L
Specifications
1.SOUTH NTS-352L TOTAL STATION2.Reflectorless Range 300m
3.Shipout in 5 working days
SOUTH NTS-352L total station
Item specifics
Place of Origin: Guangdong China (Mainland)
Brand Name:SOUTH
Model Number:NTS-352L
Accuracy:2"
Color:Yellow
Max. Range:
Reflectorless:300m
1p: 5000m
Measuring method: Absolute continuous
Measuring Time: 1s
tracking time: 0.5s
Magnification:30x
Image:Erect
Surveying Accuracy:1P: 2+2ppm No prism: 5+3ppm
| NTS-352L | NTS-355L | NTS-355S | ||
| Distance | ||||
| Max.distance | Single prism | 1.8KM | 1.6KM | 1.4KM |
| Triple prism | 2.6KM | 2.3KM | 2.0KM | |
| Display | Max.:999999.99 mini:1MM | |||
| Accuracy | 2+2PPM | |||
| Measuring time | Measure:3,tracking:1 | |||
| Meteorologic correction | Automatic correction | |||
| Prism parameter correction | Automatic correction | |||
| Angle measurement | ||||
| Measure method | Photoelectric increment | |||
| Diameter of circle | 79MM | |||
| Minimum reading | 1"/5" alternative | |||
| accuracy | NTS-352 | 2" | ||
| NTS-355/355S | 5" | |||
| Telescope | ||||
| image | erect | |||
| Lens length | 154MM | |||
| Effective diameter | 50MM | |||
| Magnification | 30X | |||
| Field of view | 1 30 | |||
| resolution | 3" | |||
| Mini focus | 1M | |||
| auto vertical compensator | ||||
| system | Liquid or bubble alternative | |||
| Compensate range | +/-3' | |||
| accuracy | 1" | |||
| Level | ||||
| Plate level | 30"/2MM | |||
| Circular level | 8'/2MM | |||
| plummet | ||||
| Laser Plummet | ||||
| display | ||||
| type | Dualdisplay, numeric keypad | Single displaynumeric keypad | ||
| Battery | ||||
| Power source | Rechareable Ni-MH battery | |||
| Voltage | DC 6V | |||
| Continuou working time | 6+8hours | |||
| Dimension and weight | ||||
| Dimension | 160*150*330MM | |||
| weight | 5.88KG | |||
