2016 Fashion Cheap Rain Boots for Children Factory Machinery JL-288
- 1000 Set / Sets per Month
- Guangzhou Shenzhen Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 High Quality Rotary Type Plastic Sole Injection Moulding Machine/Shoes Making Machine JL-288
-
Automatic Rotary 1/2 Color PVC Boots Injection Molding Machine JL-288
-
GumBoots Rain boot Machine Prices JL-288
-
GumBoots Making Machine PVC Rain Boot Injection Moulding Machine JL-288
-
PVC Boots Machine PVC Rain Boot Injection Moulding Machine JL-288
-
PVC Rain Boot Shoes Making Machine JL-288
Product Details
Condition | New | Production Capacity | 200-300pairs/hour | |
Place of Origin | Guangdong, China | Brand Name | Kingstone | |
Model Number | JL-288 | Voltage | 220v/380v/440v | |
Power(W) | 18.5KW | Dimension(L*W*H) | 4600*3600*2300mm | |
Weight | 6tons | Certification | CE SGS, CE Approved | |
Warranty | 2 Years, 2 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

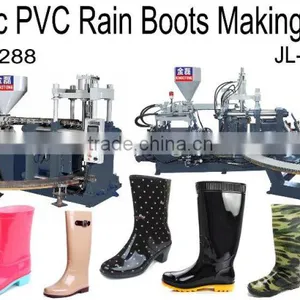

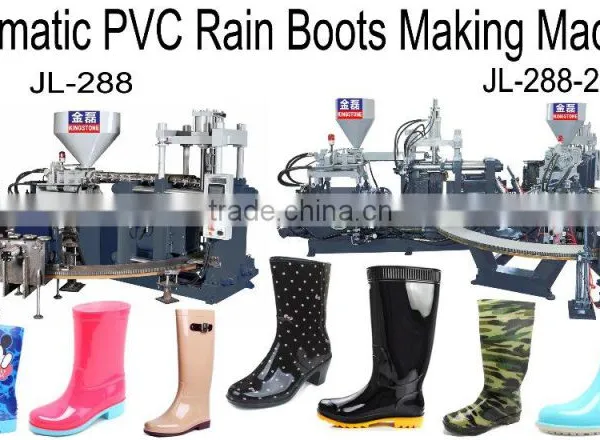

2016 Fashion Cheap Rain Boots for Children Factory Machinery JL-288
Main Features:
1. This rain boots machine is applied to product all kinds of different height of plastic PVC/TPR boots and rain boots. It is the most ideal and efficient injection moulding machine for rain boots industry at present.
2. The injection system is controlled by two-section pressure, screw temperature is controlled by four section PID.
3. This machine is operated by full automatic computer and PLC; the seals and hydraulic parts is imported from taiwan.
4. It use the strong pressure air to asist the workers to take out the products from the mould.
5. It use the strong and double clamping cylinder which special ordered for this machine.
6. Disk drives by full automatic two-section speed. It is more stable and fast.
7. It adopts the newest device of full-automatic open-close mould. This device will save labour and improve the production efficiency.
Machine model | JL-288-12S | JL-288-2C-12S | |
Mould-clamping Unit | |||
Work station |
| 12 | 12 |
Clamping force | TON | 220 | 220 |
Opening stroke | MM | 210 | 350 |
Mould dimension | MM | 420x320 | 650*260 |
Height of injection nozzle | MM | 280 | 650 |
Injection Unit | |||
Injector | SET | 1 | 2 |
Screw diameter | MM | 95 | 95,85 |
Screw L/D ratio | L/D | 19 | 19 |
Max.injection volume | cm3 | 1700 | 1700,950 |
Injection speed | Cm/s | 520 | 520 |
Screw rotation speed | R.P.M | 10 | 10 |
Electricity Consumption | |||
Heating power of injector | KW | 7 | 14 |
Hydraulic unit motor | KW | 22.5 | 22.5,18.75 |
Total electric consumption | KW | 29.5 | 55.25 |
Temperature control | Section | 4 | 4*2 |
Dimension and Weight | |||
Machine dimension | (L*W*H)MM | 5100*4900*2550 | 7600*4900*2550 |
Machine weight | KGS | 11000 | 18000 |
*Note:Above data only for reference. |
Products Show
The working show of machine while customer visiting!
Professional and special package for our Shoes Making Machine,it can protect our machine without broken during the ship trip.
Dongguan Kingstone Shoe-making Machinery Co. Ltd. is a professional manufacture of shoes machinery R&D, design, manufacturing and slaes, the company is located in Hengjiang Village Chashan Town Dongguan City, next to Chashan Government and Dongguan Railway Station and Eastern Expressway.
Jelly Shoe Molding Machines, PVC Boots Injection Modling Machine, Single, Double, Triple-color Botts (Water Shoes) Machines, Single, Double, Triple-color TPR, TPU, PVC, TR, Sole injection Molding Machines, Single, Double, Triple-color TR Soles, EVA Slippers Injection Shoes, Silicone, Rubber Injection Molding Machine, PVC Soles, Laces and other Series Shoe-making Equipment and the Corresponding Types of Shoes Machine is suitable for producing various kinds of shoes soles.
It widely used to produce plasctic shoe, TPU/TPR/PVC/TR shoe, Jelly shoes, Slipper, Net Shoes, Rain Boots, Water Shoes, etc.
1. Are you manuafacturer?
Yes, we are manufacturer, we located in Chashan Town, Dongguan City, welcome to visit our factory!
2. How to buy your machine?
Please send inquiry to our email, when we reach a agreement, we will sign a contract to confirm our order.
3. How to contact you?
You can click the "Contact Supplier" in the top of this page or contact me from the bottom contact info, we will reply to you via E-mail or phone call within 12 hours.
4. What about your warranty?
Our warranty is 2 years, all machine part can order from us, and we will provide the best service according to the condition.
5. How long we will get the machine?
After we reach a agreement, our factory will produce and finished within 15 working days. (in the normal condition)
6. Are we still need to install the machine after we got?
We will debug the machine before we deliver to you, also we will send you manual to teach you how to use the machine. If you could not install it success, we could send our engineer to your factory and help to install.
7. How can you guarantee we receive a good quality?
First, the machine parts is purchase from brand company, we have Q/C department to control the quality. When the machine is finished, we will make sure it's work well. Also, you can come to our factory to inspect the machine before you arrange shipment.
