Home > Products > 3.5-7"TouchScreen Module > Yunlea 320x480 dots 3.5 inch innolux tft lcd module touch screen

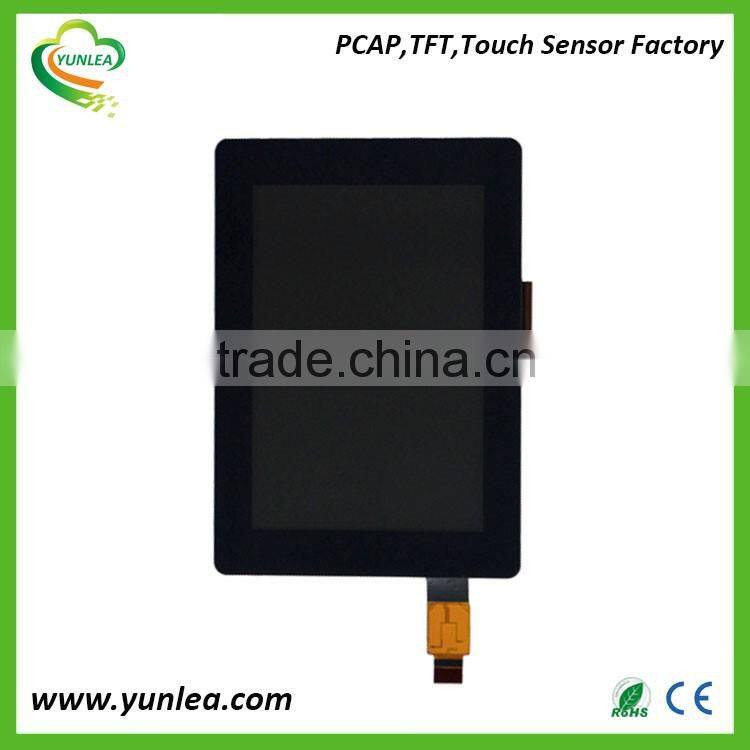

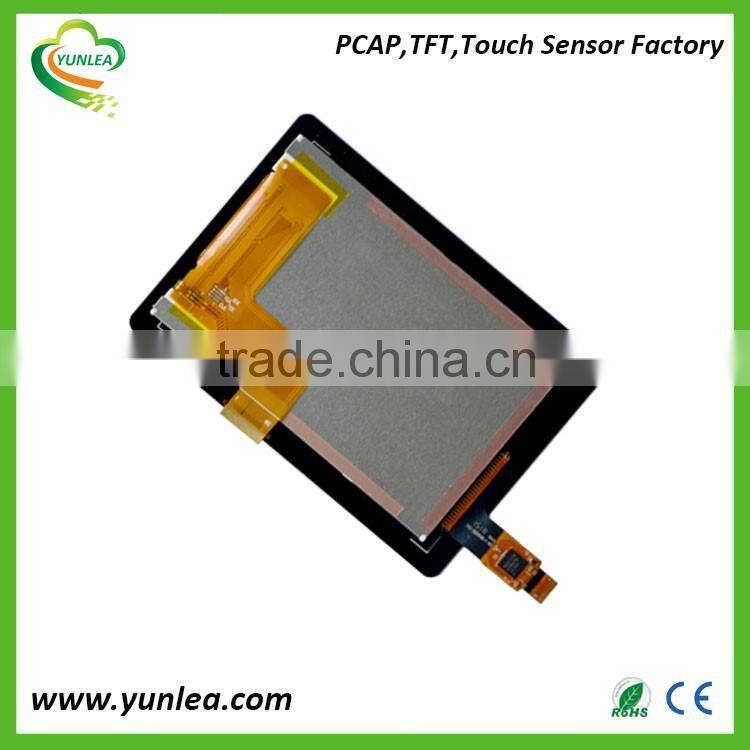

Yunlea 320x480 dots 3.5 inch innolux tft lcd module touch screen
USD $10 - $30
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- shenzhen Or HK
- T/T Credit Card
You May Like
-
negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
-
digital fire alarm installation module display, HTN segment display with blue led lcd panel
-
negative autoreclose circuit-breaker lcd display, segment module with blue led
-
charger negative character lcd display,white led ,battery segment small flexible display
-
character small charger lcd display ,custom battery display ,white led
-
segment positive temperature time clock lcd display,blue TN white backlight
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | YUNLEA | Model Number: | YL035MY01 |
| Type: | TFT |
Product Description
Yunlea 320x480 dots 3.5 inch innolux tft lcd module touch screen
Skype:yunlea.sales
Product Description
What's specification of 3.5 inch TFT touch panel?
---The specification of 3.5 inch touch screen--- | |
| Specification | |
| Size | 3.5 inch |
| Product name | 3.5 inch capacitive touch screen |
| Model number | YL035MY01 |
| Type | LCD + CTP |
| Struture | CTP(Glass+Glass)+LCD |
| Outline Dimension | 66.86x94.94 mm |
| Active area | 48.96x73.44 mm |
| Resolution | 320x480 dots |
| Brightness | 250 available cd/m2 |
| Touch controller | MStar 2133A |
| Interface Of tft | RGB 18 bit + SPI-3 |
| Interface of CTP | I2C |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | one point + motion |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
| ---The picture of 3.5 inch touch screen --- |
| |
| |
Product Catalog
| ---Product Catalog of touch screen --- | ||||
| Pls click on the items you like | ||||
capacitive touch screen | ||||
| ||||
3.5 inch touch screen | 4.3 inch touch screen | 5 inch touch screen | 7 inch touch screen | 10.1 inch touch screen |
| ||||
10.4 inch touch screen | 12.1 inch touch screen | 15 inch touch screen | 15.6 inch touch screen | 17 inch touch screen |
| ||||
18.5 inch toucch screen | 19 inch touch screen | 19.5 inch touch screen | 21.5 inch touch screen | 23 inch touch screen |
| ||||
23.6 inch touch screen | 24 inch touch screen | 27 inch touch screen | 32 inch touch screen | 42 inch touch screen |
touch screen module | ||||
| ||||
| 3.5 inch tft touch screen | 4.3 inch tft touch screen | 4.3 inch tft touch screen | 5 inch tft touch screen | 7 inch tft touch screen |
touch sensor | ||||
| ||||
1 inch-7 inchGlass touch foil | 1 inch-7 inch F+F touch foil | 7 inch-42 inch Glass touch foil | 7 inch-42 inch F+F touch foil | Customized touch foil |
tft | ||||
| ||||
3.5 inch TFT LCD | 4.3 inch TFT LCD | 5 inch TFT LCD | 7 inch TFT LCD | 7 inch IPS TFT LCD |
YUNLEA Company
Why Choose Yunlea?
(1)13000 Square meter factory,main for CTP and TFT ,larger productuion capacity ensure the fastest delivery.
(2)High quality Control with CE,ROHS and so on approved.
(3)Precise and advanced equipments
(4)More than 10 years of industry experience and involved main markets all over the world
(5)Dedicated and professional sales team will offer you 24 hours online and immediate service
(6)OEM and ODM welcome,12months warranty on our product
(7)Our mission is to help our customers achieve success, then fulfill our both dreams
---Touch screen manufacturer--- | |||
|
Our certificate
I
---Our certificate--- | |||
| |||
CE | ROHS | ISO9001 | |
Customized solution:
---Customized solution--- |
| |
Product application
---Product application --- |
|
Contact information
Skype:yunlea.sales
Tel:+86-75527722207
Fax:+86-75523088978
What's app:+8613580569301
Wechat:1027361297
Dear, pls scan de contact information as below
Contact Us
- Shenzhen Yunlea Electronics Co., Ltd.
- Contact nameCandice Tang
- Phone86-755-27722207
- Addressbao'an district Shenzhen,Guangdong
