Specifications

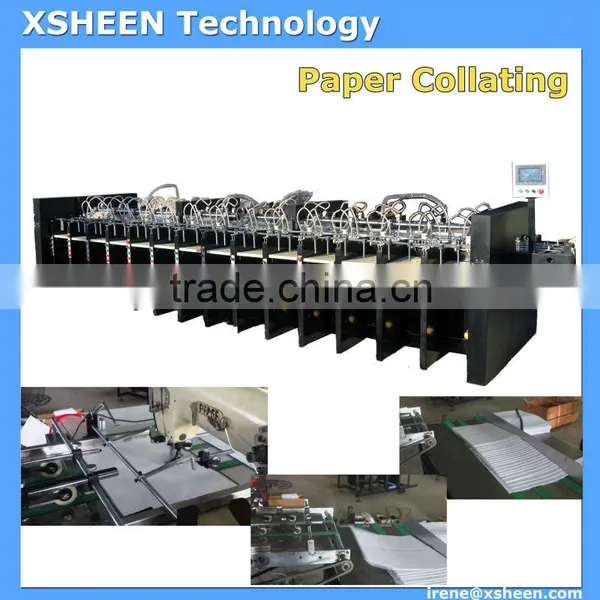

XH-P4-440 paper collatorCan collate up to 20 pages
Paper collating machine sewing part is optional
NEW Design up to 20 pages paper collator, heavy duty paper collator machine
1.The machine has compact structure, small footprint. It can be customized to more pages collating without affecting the collating speed.
2. Advanced PLC touch screen control
3. Paper feeding in vertical direction and paper carried in horizontal direction by accurate timing belt conveying device. Paper are collected by vibration to ensure the tidiness of final collated pages.
4. Equipped with highly advanced paper detection device such the missing page be automatically filled, double sheet alarm device etc
5. The book sewing part or book stitching part is optional.
Technical data of paper collator:
Model |
XH-XP4-440 |
XH-XP6-560 |
XH-XP14-650 |
Max. paper size |
440*300mm |
560*400mm |
650*450mm |
Min. paper size |
297*210mm |
||
Paper thickness |
30-1000GSM |
||
Max .loading height |
450mm |
||
Max. speed |
2000 sheets/hour |
||
Power |
380V 50Hz 5.5kw |
380V 50Hz 6.8kw |
380V 50Hz 10kw |
Dimensions |
3200x1700x1300mm |
3800x1400x1300mm |
8500x1900x1400mm |
Weight |
800kg |
1000kg |
1700kg |
Machine details:
Machine in working:
Sewing part or stitching part is optional:
Final book:
