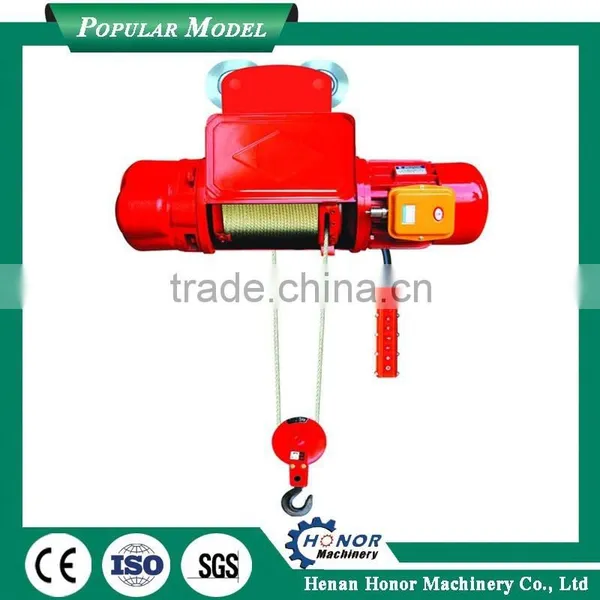

Double Speed Wire Rope Electric Hoist for workshop/warehouse/factory
Model CD1, MD1 wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification, it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only one normal speed, which can satisfy normal application, model MD1 electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. Thus, model MD1 hoist is more widely used than CD1 hoist.

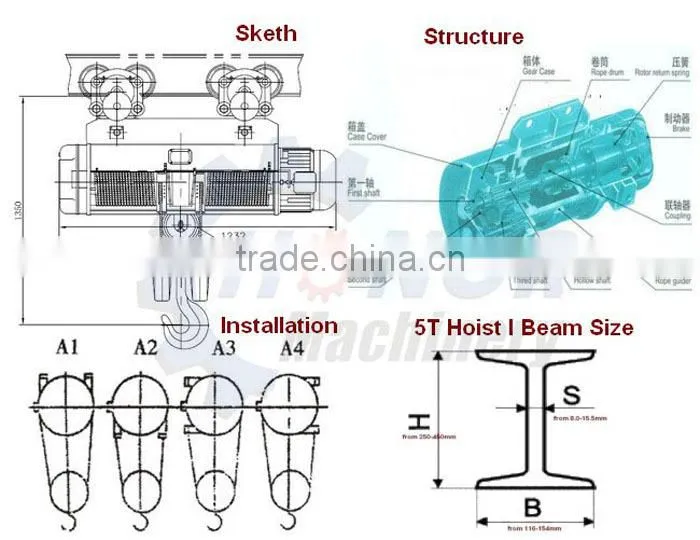

Sketch of Double Speed Wire Rope Electric Hoist
Parameters of Double Speed Wire Rope Electric Hoist
Model |
CD1 MD1 |
|||||||
Capacity |
Tons |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
Hoisting height |
M |
6,9,12 |
6,9,12,18,24,30 |
9,12,18,24,30 |
||||
Hoisting speed |
M/MIN |
8(0.8/8) |
8(0.8/8) |
7(0.7/7) |
3.5(0.35/3.5) |
|||
Travel speed |
M/MIN |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
18 |
Wire rope |
Dia.(mm) |
4.8 |
7.4 |
11 |
13 |
15 |
15 |
17.5 |
Spec. |
6x37+FC |
6x37+FC |
6x37+FC |
6x37+FC |
||||
Double Speed Wire Rope Electric Hoist Factory Views

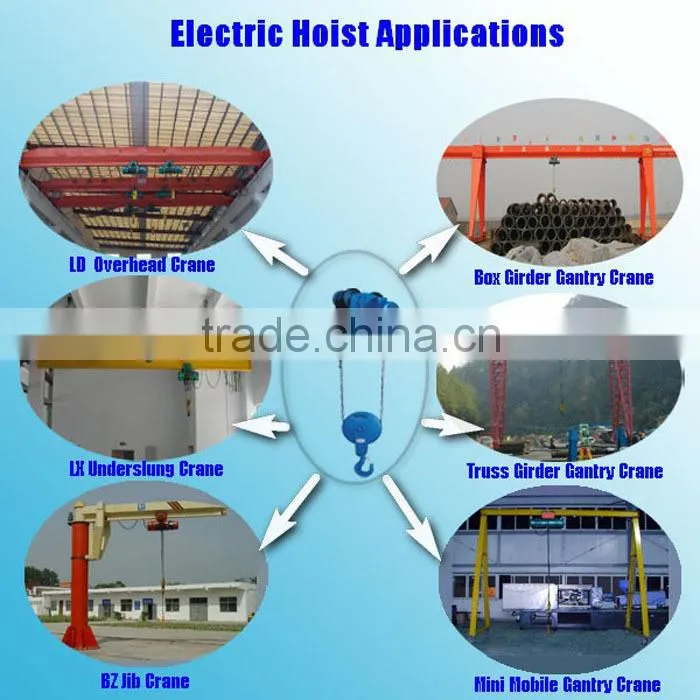

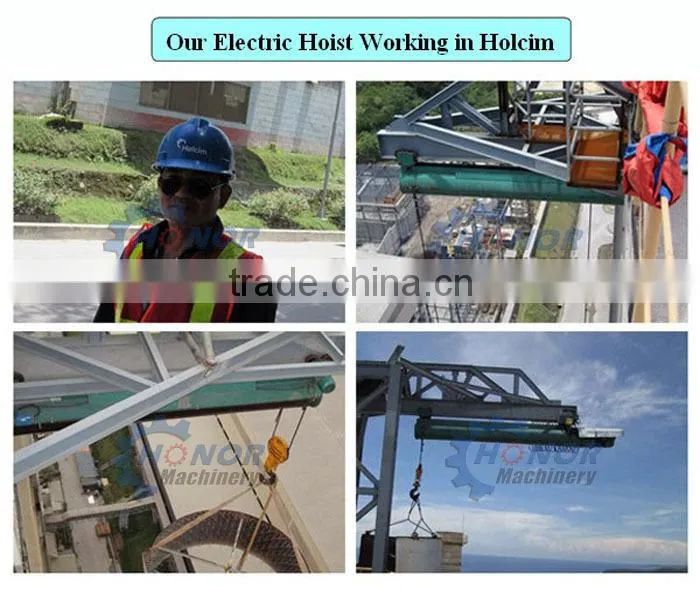

Double Speed Wire Rope Electric Hoist Applications

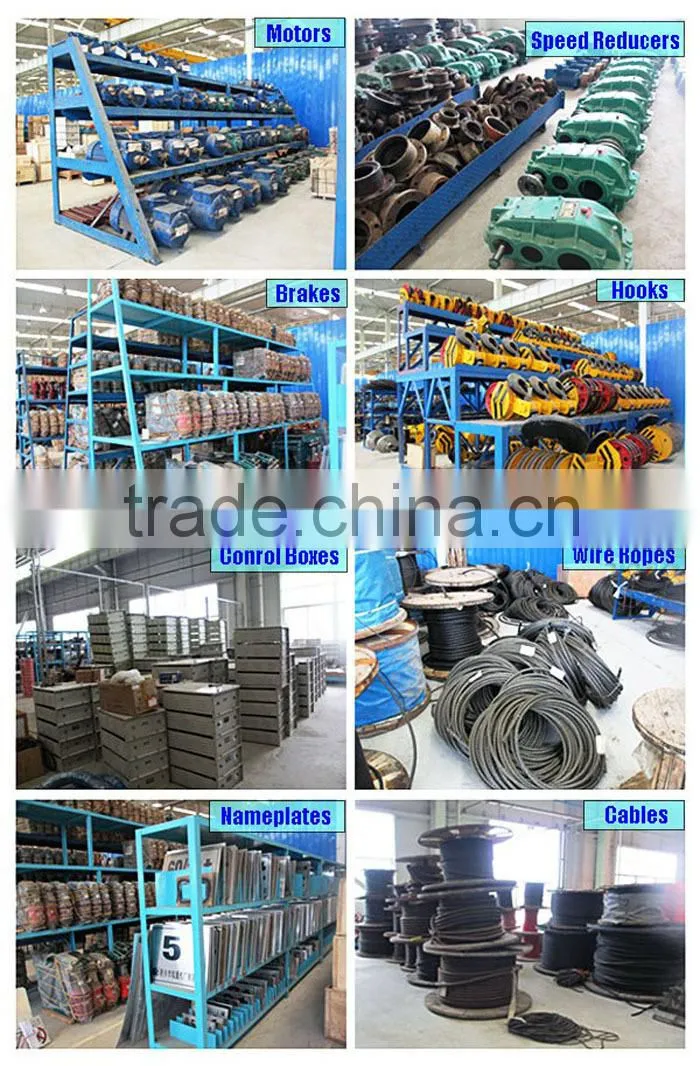

Double Speed Wire Rope Electric Hoist Spare Parts in Stock

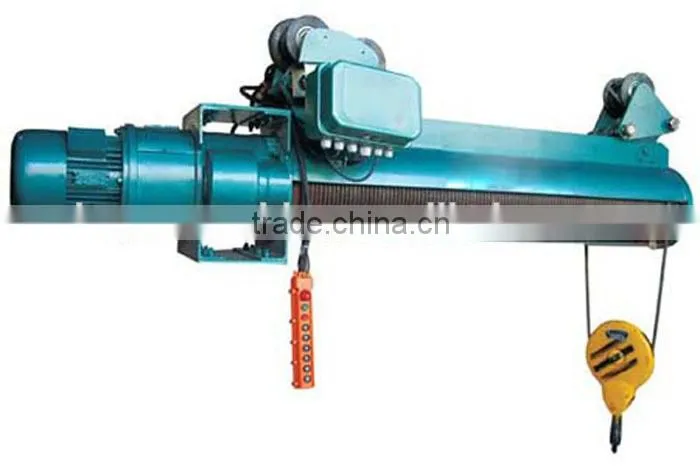

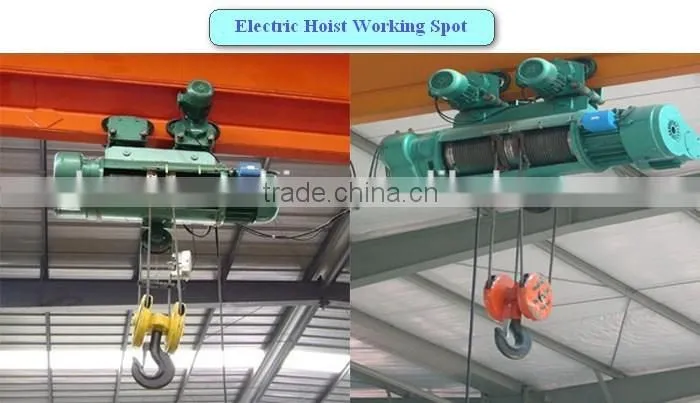

Double Speed Wire Rope Electric Hoist Photo Show

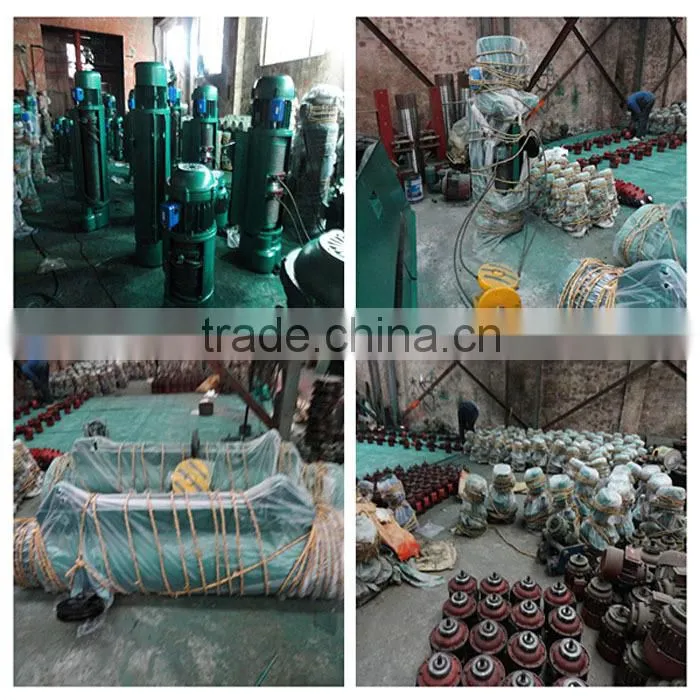

Double Speed Wire Rope Electric Hoist Package
Double Speed Wire Rope Electric Hoist Contacts
When you send us inquiry, pls kindly complete the following table and sent to us:
1. Lift capacity |
Question: How many tons? Answer: |
2. Lift height |
Question: How many meters? Answer: |
3. Lift speed |
Option A: single speed Option B: double speed Your choice: |
4. Traversing speed |
Option A: single speed Option B: double speed Your choice: |
5. What is the power supply in your country? |
Question: Is 380V 50HZ 3P ok? Answer: |
6. Work place |
Question: Where will you use this hoist? Answer: |
Looking forward to be your Double Speed Wire Rope Electric Hoist supplier!
