Factory Manufacturing Portable Wire Rope Electric Hoist
Brief Introduction of Factory Manufacturing Portable Wire Rope Electric Hoist

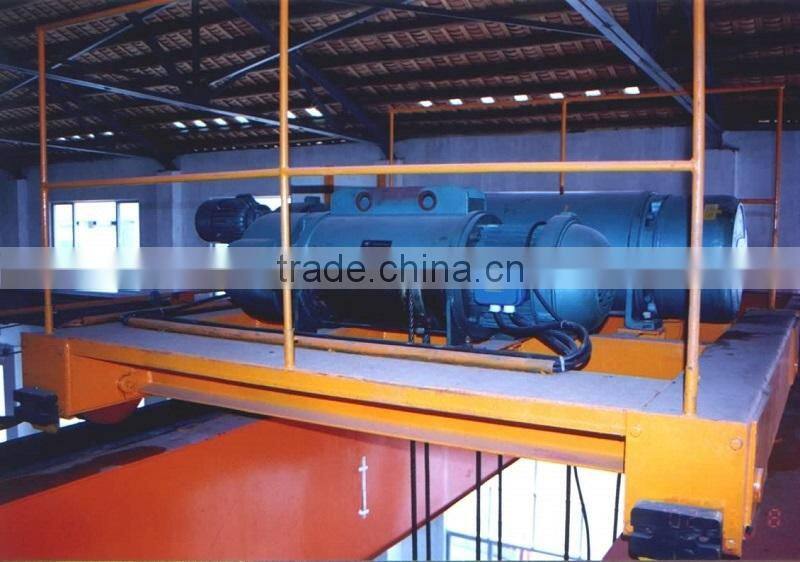

Model CD1, MD1 wire rope electric hoist is small-sized lifting equipment, with a compact, light weight, small size, parts versatility, easy operation, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification, it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
Characteristics of Factory Manufacturing Portable Wire Rope Electric Hoist

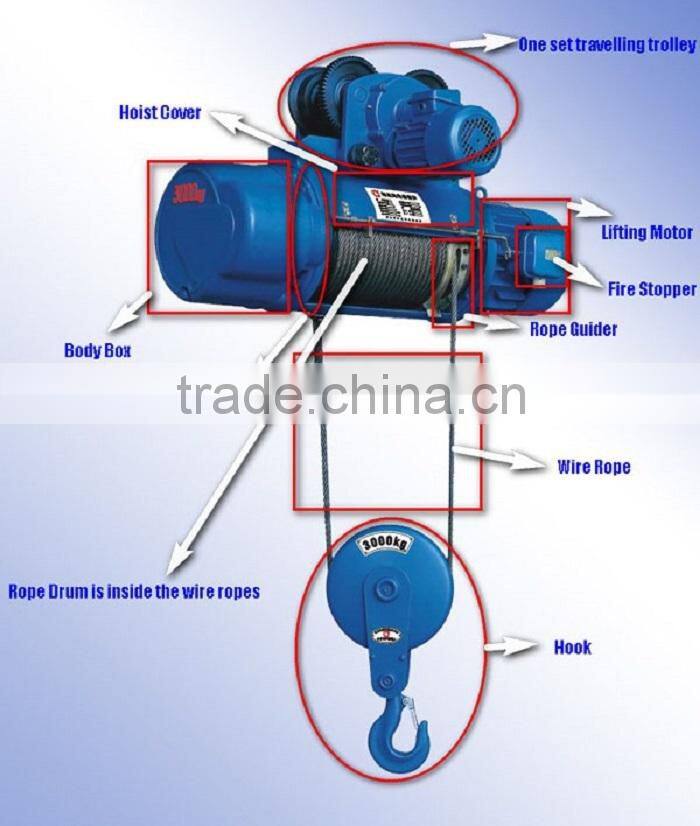

Compact electric hoist structure, the motor axis is perpendicular to the axis of the hoist drum using a worm gear.
Structure and characteristics: The machine adopts mechatronics design, changing different molds; it can suppress the different specifications of the rope, the dominant simple, safe.
Application of Factory Manufacturing Portable Wire Rope Electric Hoist
Applications: lifting, pull shift, handling heavy loads, tanks flip chip bonding, such as installation and removal of various medium-sized concrete, steel, and machinery and equipment for construction and installation companies, civil construction and bridge construction factories, mines, electricity, shipbuilding, automobile manufacturing, construction, highways, bridges, metallurgical, mining, slope tunnels, wells and other infrastructure construction management protection of machinery and equipment.
Parameters of Factory Manufacturing Portable Wire Rope Electric Hoist
Type | Capacity (t) | Work Duty | Lift height (m) | Lift Speed (m/min) | Travel Speed (m/min) | Rope Diameter (mm) | Lifting Motor (kw) | Travelling Motor | Protection class | I-beam Track (mm) | N.W (kg) |
CD1/ MD1 | 0.5 | M3 | 6 | 8 8/0.8 | 20 20/6.7 30 30/10 | 4.8 | ZDY11-4(0.8) ZDS1-0.2/0.8 (0.2/0.8) | ZDY11-4 (0.2) | IP44 IP54 | 88-124 | 135 |
9 | 140 | ||||||||||
12 | 155 | ||||||||||
18 | 175 | ||||||||||
24 | 185 | ||||||||||
30 | 195 | ||||||||||
1 | M3 | 6 | 8 8/0.8 | 20 20/6.7 30 30/10 | 7.4 | ZD22-4(1.5) ZDS1-0.2/1.5 (0.2/1.5) | ZDY11-4 (0.2) | IP44 IP54 | 88-124 | 180 | |
9 | 190 | ||||||||||
12 | 205 | ||||||||||
18 | 220 | ||||||||||
24 | 235 | ||||||||||
30 | 255 | ||||||||||
2 | M3 | 6 | 8 8/0.8 | 20 20/6.7 30 30/10 | 11 | ZD31-4(3) (0.4/3) | ZDY12-4 | IP44 IP54 | 100-152 | 250 | |
9 | 265 | ||||||||||
12 | 300 | ||||||||||
18 | 320 | ||||||||||
24 | 340 | ||||||||||
30 | 360 | ||||||||||
3 | M3 | 6 | 8 8/0.8 | 20 20/6.7 30 30/10 | 13 | ZD32-4(4.5) ZDS1-0.4/4.5 (0.4/4.5) | ZDY12-4 (0.4) | IP44 IP54 | 100-152 | 320 | |
9 | 340 | ||||||||||
12 | 350 | ||||||||||
18 | 380 | ||||||||||
24 | 410 | ||||||||||
30 | 440 |

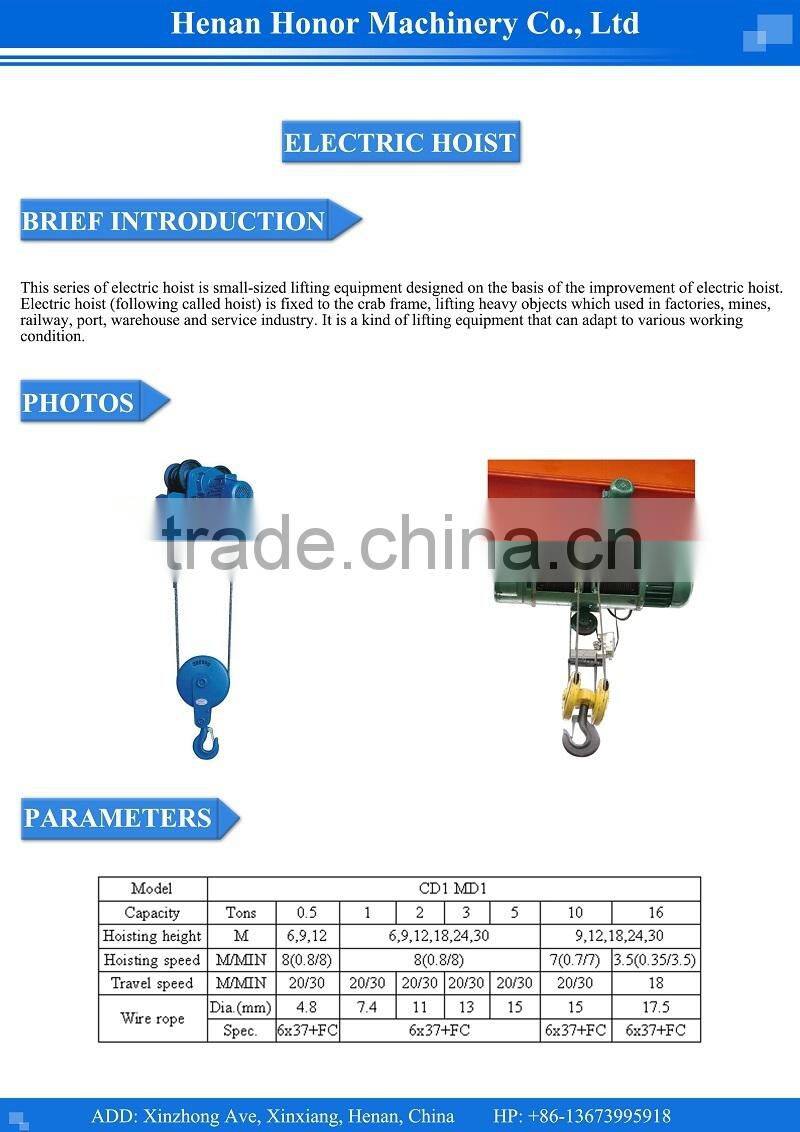

Catalog of Factory Manufacturing Portable Wire Rope Electric Hoist

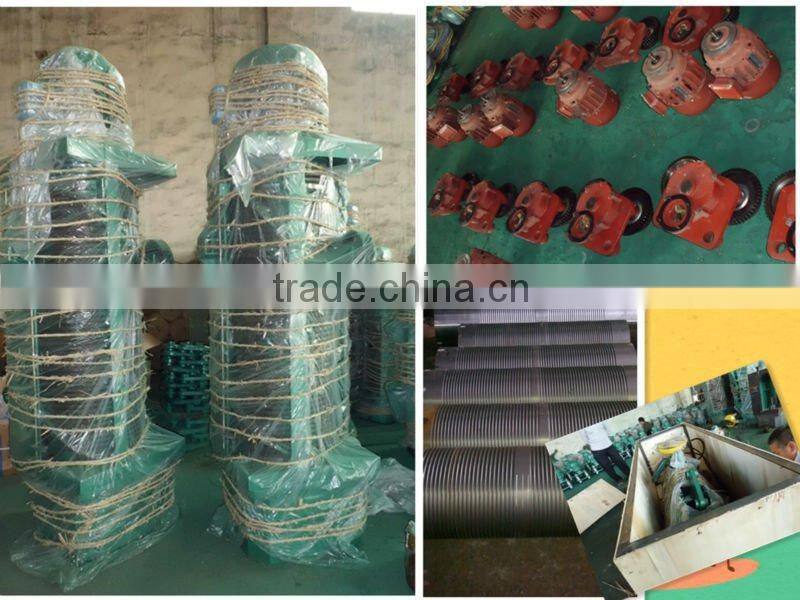

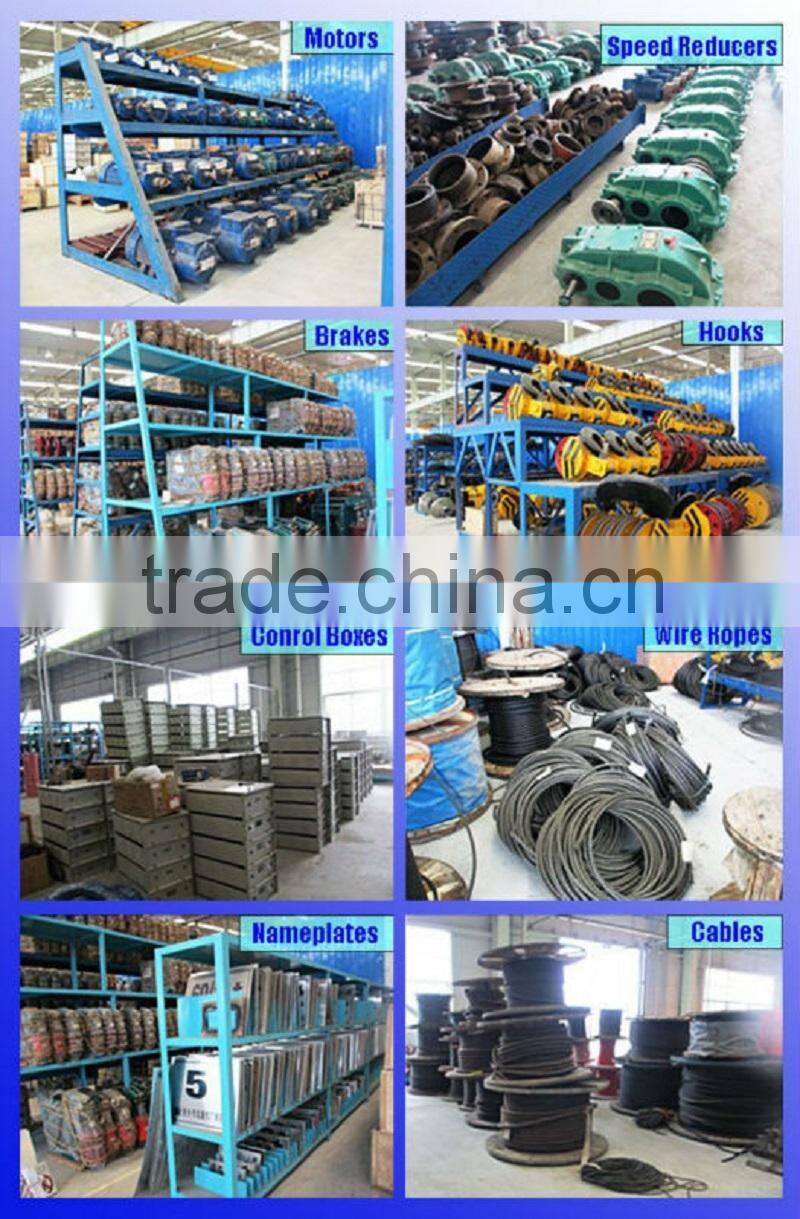

Spare Parts of Factory Manufacturing Portable Wire Rope Electric Hoist

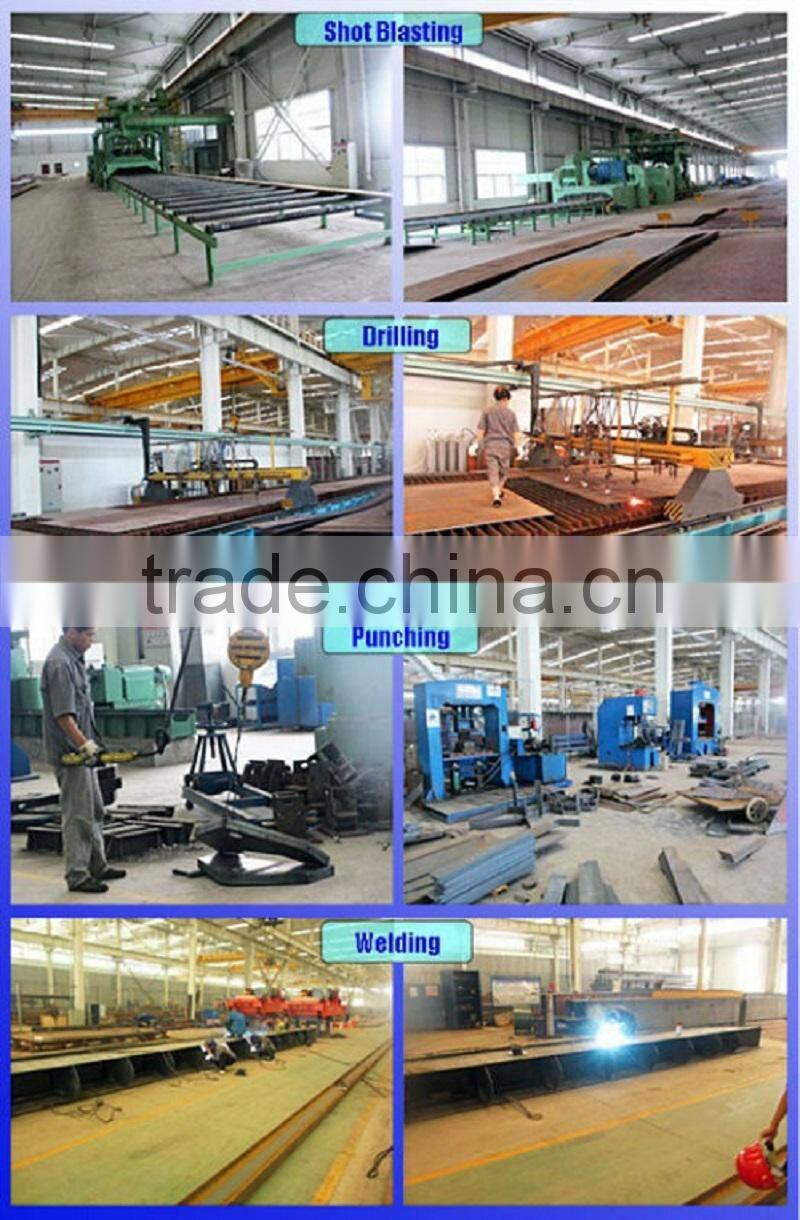

Manufacturing Process of Factory Manufacturing Portable Wire Rope Electric Hoist

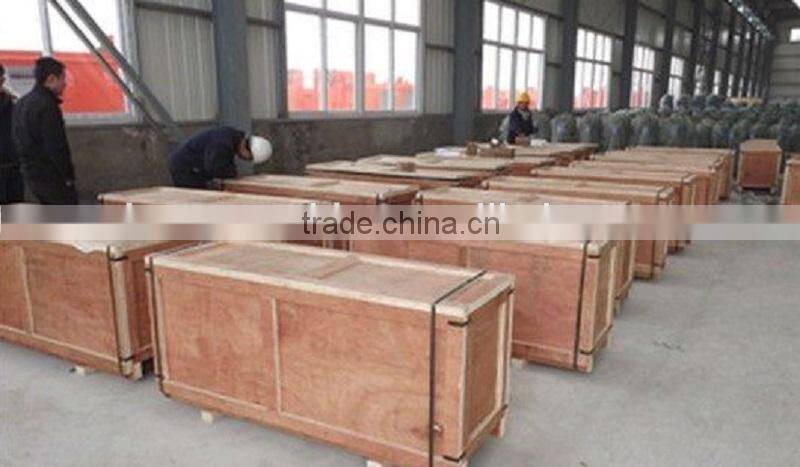

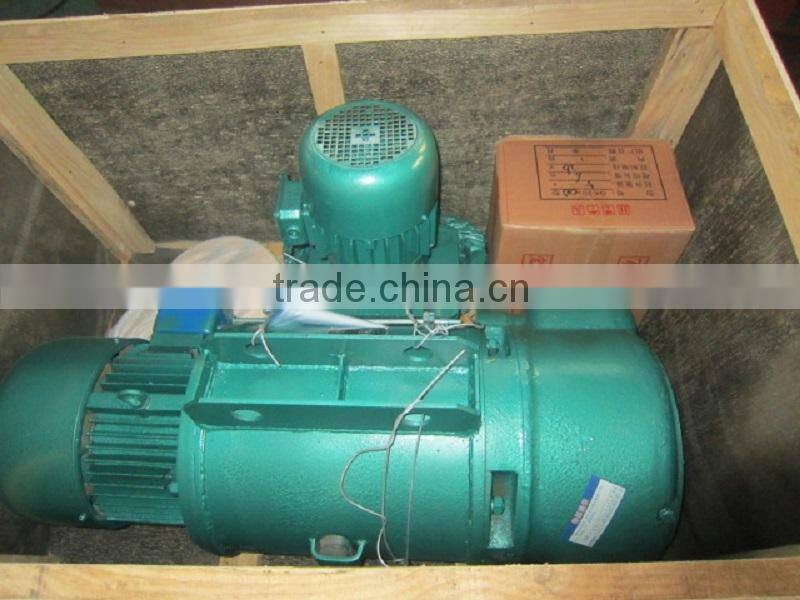

Packaging of Factory Manufacturing Portable Wire Rope Electric Hoist
Factory Manufacturing Portable Wire Rope Electric Hoist
1. 24 hours online services, Guide you how to using the machines.
2. Engineers available to service machinery overseas.
3. Free trading and teaching your workers to operate machines.
Factory Manufacturing Portable Wire Rope Electric Hoist
1. How to choose the most suitable for my machine?
2. If the machine some spare parts damaged, how to solve the problem?
3. Is your products customized?
