Specifications
XH-PS6 paper collator & stitching machinehigh quality and long use life
very easy to operate
NEW XH-PS6 digital collator, booklet maker machine, collator booklet maker
Features of digital collator:
1. Paper-feed stand of fully automatic lift
2. Presetting of number of copies available
3. Automatic shutdown display for paper double-feed, Paper jam, out-of-paper, paper tray full.
4. Drawer-type paper tray, Cross-type deliver tray
5. Provides two stacking modes
6. Crisscross stacking mode, Straight stacking mode.
Technical data of digital collator:
Model |
XH-II |
Station |
6 |
Speed |
3000shets/hour (A4 size paper), 2500sheets/hour (A3 size paper) |
Paper size |
A3-A5 |
Paper quality |
40-210g/m² (the first sheet and the last sheet ) 55 – 120 gsm ( the middle sheets ) |
Station capacity |
250sheets |
Stacking capacity |
600sheets |
Stacking device |
cross collating |
Error display |
Paper double-feed, paper jam, out-of paper, no paper, deliver tray Full, Paper miss-feed, back door open. |
Power |
AC220V 180W |
Net weight |
63kg |
Gross weight |
78kg |
Volume |
900*710*970mm(XH-II) |
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Features of Wire Stitching part:
1. Wire staple binding,good appearance,and saving material costs;
2. Binding time is adjustable,the machine equipped with removable transmission rack and lay down platform with casters which is moving easily when the machine nonuse,small value space saving;
3. Automatic control manually added:paper transport,binding text,folding,the whole process automatic control,manual/automatic control,easy side nails,a small amount of binding text work;
4. Binding fast:the side guide plate wider than the paper width 15mm,when a set is being folder,another set is being shot paper,binding,the highest speed can handle up to 1,500 per hour,thickness up to 22sheets(80gsm);
5. Adopt international standards double stitching head,the spacing adjustable,handle size up to A3+/A3-A4(after the binding size range A4-A5)
Model |
XH-ZY2S booklet making machine |
Binding thickness |
22 sheets/80gsm |
Max. paper size |
320×450mm |
Min. paper size |
148×210mm(special spec customized) |
Binding method |
Saddle stitching |
Stitching heads |
2pcs |
Stitching seat |
Random |
Binding speed |
1500 books/hour (max.) |
Counter |
0000~9999 count up (LCD display) |
Power supply |
220V-240V 50Hz 300W |
Wire binding qty |
Wire nails(60000 books) |
Machine size |
570×490×1200mm |
Weight |
105kgs |

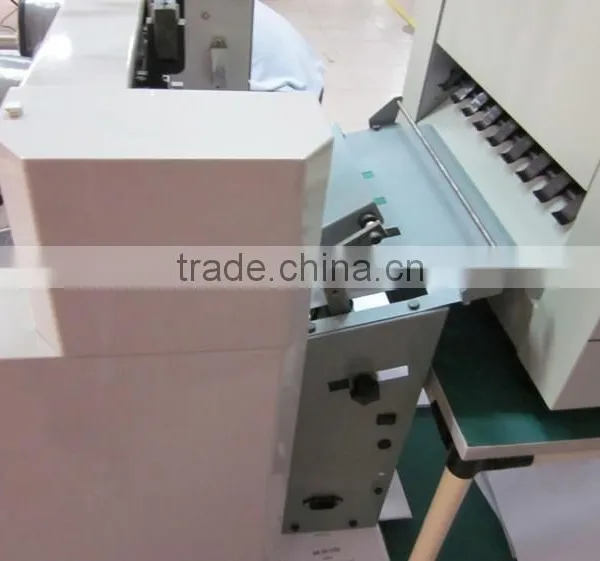

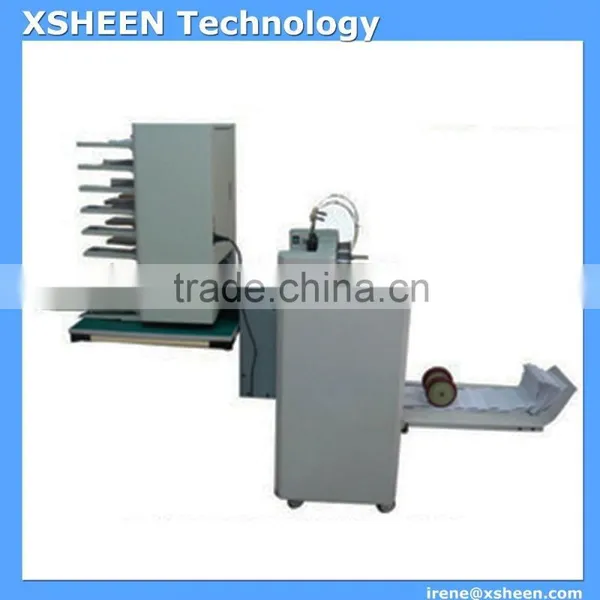

Machine details:
Any requirements can immediately contact me on or add Skype: xsheen2008
