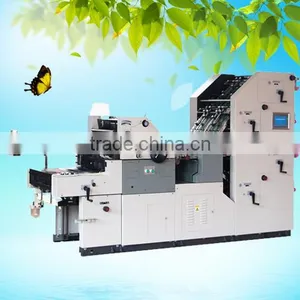

bill printing machine, automatic offset bill printing machine
Introduction of bill printing machine:
1. XH47-4PC each paper feeding section is with ultrasonic detector, which ensures accurate collating.
2. Special paper delivery structure ensure the paper more orderly and have large space for delivery paper, save working time and improve production efficiency.
3. Reasonable structure ensure to delivery paper stably, high collating speed.
Features of bill printing machine:
1. The high degree automation, adopt one “key” operation, effectively improve the work efficiency.
2. Reasonable structure design, low machine height, easy to operate, large amount could be loaded at one time.
3. Adopt microcomputer control, human-machine interface touch screen. Paper feed and number code dial controlled by pneumatic components, fully ensure a stable and reliable machine operation.
4. Precise detection by ultrasonic, to avoid double sheets, paper jam etc.
5. Automatic oil supply system.
6. The angle of every paper feeding unit is small, ensure the paper delivery smoothly.
Technical data of bill printing machine:
Model |
XH47ANP-4PC |
XH56ANP-4PC |
Maximum printing area |
450*345mm |
544*375mm |
Maximum sheet size |
460*365mm |
560*390mm |
Minimum sheet size |
210*210mm |
250*210mm |
Paper type |
28-157g/sqm |
28-157g/sqm |
Ink roller |
10 pcs rollers of host system (2 pcs form inking rollers) 6 pcs rollers of NP system (one set) (2 pcs form rollers) |
|
Water roller |
4 pcs(1 pcs form roller) |
|
Registration agencies |
Wheel roller type side pull |
|
Printing speed |
2000-6000sheets / hour |
|
Minimum space between the number codes |
Vertical Number : vertical:71mm , horizontal : 48mm , gripper :25mm Horizontal Number : vertical: 47mm , horizontal: 60mm, gripper: 25mm |
|
Power |
Main motor: 1.5KW/220V Pump motor: 0.55KW/220V *4 |
|
Dimension |
2600*935*1680mm |
2800*980*1780mm |
Weight |
1800kg |
1980kg |
Machine details:
Your best partner on on numbering, printing, perforating equipment.
About XSHEEN Technology:
Any requirements can immediately contact me on or add Skype: xsheen2008
