Specifications
numbering and perforating machine XHDM570 , printing numbering machine, numbering machine
numbering and perforating machine XHDM570, printing numbering machine, numbering machine
Features of numbering and perforating machine:
1. Lateral and Vertical Perforation can be done at the same time;
2. Perfect Numbering Position & Legible Print with resin plate printing;
3. Numbering Speed up to 8,000 sheets per hour;
4. LCD computer controlling system is optional
5. Brand Parts: France Components (Schneider) & Japanese Bearings (NHK);
6. Oil Free Vacuum Pump adopts Japanese Technology;
7. Positive Limitation Protection is adopted to make sure safe operation;
8. Automatic Powdering & Blower system;
9. High quality Feeding Rubber-tired & Double Sheets Detection Device;
10. Chrome plated Technology and Stainless Steel Material are used to protect the roller
Technical data of numbering and perforating machine:
Model |
XHDM480 |
XHDM570 |
XHDM630 |
|
Max. Paper Size |
470x360mm |
560x400mm |
620x440mm |
|
Min. Paper Size |
180x150mm |
|||
Paper Weight |
28-250gsm |
|||
Printing Speed |
2000-8000 sheets/hour |
|||
Ink Roller |
6 rollers(ink form rollers: 2pcs) |
|||
Number capacity: |
Lateral: 7 row x 7 column=49 Vertical: 5 row x 8 column=40 |
Lateral: 7 row x 8 column=56 Vertical: 5 row x 10 column=50 |
Lateral: 7 row x 9 column=63 Vertical: 5 row x 11 column=55 |
|
Perforation |
Min. space between lateral perforating knives: 10mm Min. space between vertical perforating knives: 30mm |
|||
Power for main motor |
0.75KW |
0.75KW |
1.5KW |
|
pump motor power |
0.75KW |
|||
Power Supply |
220V/50HZ |
|||
Dimensions |
1780x935x1120mm |
1900x1020x1120mm |
2060x1150x1120mm |
|
Net Weight |
280kg |
320kg |
370kg |
|
Model |
XHDM720 |
Max. Paper Size |
720x440mm |
Min. Paper Size |
180x150mm |
Paper Weight |
28-250g |
Printing Speed |
2000-8000 sheet/hour |
Ink Roller |
6 rollers(ink form rollers: 2pcs) |
Number capacity: |
Lateral: 7 row x 10 column=70 Vertical: 5 row x 12 column=60 |
Perforation |
Min. space between Lateral Perforating knives: 30mm Min. space between Vertical Perforating knives: 25mm |
Power for main motor |
1.5KW |
Power for pump motor |
1.5KW |
Power Supply |
220V 50HZ |
Dimensions |
2060x1170x1120mm |
Weight |
800kg |
Operation video link :

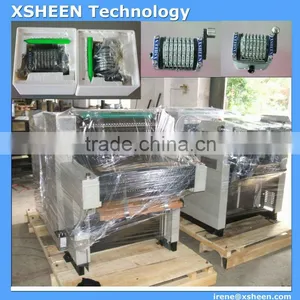

Machine details:
About XSHEEN Technology:
Any requirements can immediately contact me on or add Skype: xsheen2008
