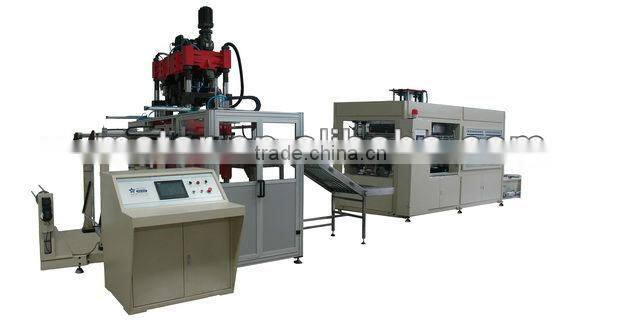

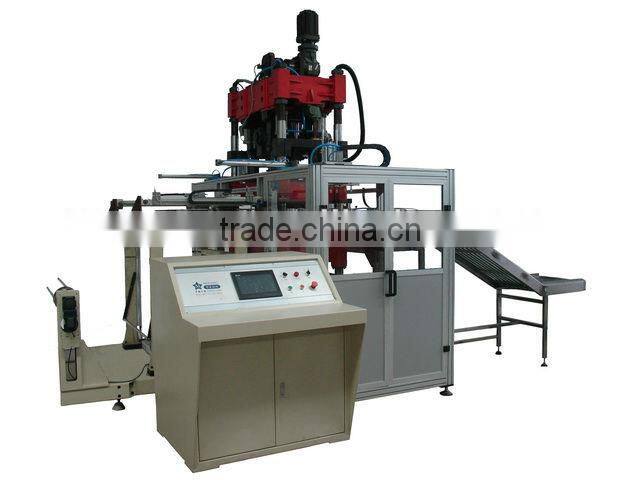

Help CenterAuto Stacking Machine
Related Products
-
Full Automatic Cutting and Stacking MachineNegotiableMOQ: 1 Set -
Automatic Plastic Cutting Machine With StackingNegotiableMOQ: 1 Set
-
MTC400 Full Automatic Cutting and Stacking MachineNegotiableMOQ: 1 Set
-
MTC400 New Design Full Automatic Cutting and Stacking MachineNegotiableMOQ: 1 Set
-
MTC400 Automatic High Speed Cutting MachineNegotiableMOQ: 1 Set
Specifications
To achieve a variety of blister packaging products automatic cutting in line.Usage:
This machine can meet many kinds of vacuum forming equipments in line working. To achieve a variety of blister packaging products automatic cutting in line. Not only improving the production efficient, but also reducing the labor costs in the production progress, to improve the competitiveness of the enterprise.
Sheets fit to the machine:
APET,PETG,CPET,PVC,HIPS,PS,PP, and PSP etc.
Structure Features:
1. Electromechanical integration control. All working action is controlled by PLC. Touch screen input, easy and convenient.
2. Servo motor driving, with large torque, low noise .The cutting depth precisely controlled.
3. Can cooperate in line working to upgrade equipment, for those adopts servo motor or inverter feeding vacuum forming machine, pressure/negative forming machine.
4. Servo motor pulling sheet, high speed, accurate, steady.
5. Using steel rule knife mold, low cost, reducing the production cost.
6. Cutting template adopt up/down double action method, suitable for all kinds of concave and convex molding products.
7. Modular design, equipment adjustment is convenient and fast.
8. The products from this cutting without any burr, to make up the present market which should stay join point on multi-station forming machine.
9. Products adopt manipulator to stacking, finished production accounting.
10. Edge automatic rewinder.
Technical Parameter:
Model |
MTC400 |
|
MAX. Cutting Area (mm2) |
400×680 |
|
Sheet Thickness(mm) |
0.2-1.5 |
|
MAX. Cutting Force(Ton) |
30 |
|
Upper mould Stroke(mm) |
75 |
|
Under mould Stroke(mm) |
130 |
|
MAX. Height of Product(mm) |
60 |
|
MAX. Depth of Product(mm) |
100 |
|
Working Capacity (Cycle/Min) |
30 |
|
Air Source |
Air(m3/min) |
≥0.3 |
Air Pressure(Mpa) |
0.8 |
|
Power Supply |
3 Phaser 4 line 380V 50Hz |
|
MAX. Power(Kw) |
20 |
|
MAX. Dimension(L×W×H)(mm) |
3500×3100×3300 |
|
Weight (kg) |
3950 |
|
