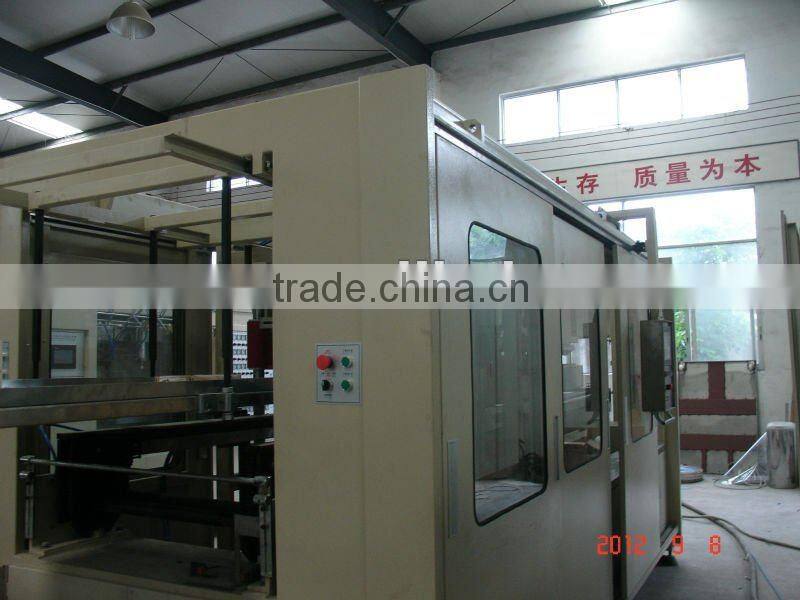

QZC50-76/36-CWF3 Automatic Thermoform Egg Box Making Machine
- 10 Set / Sets per Month
- FOB SHANTOU
- T/T
You May Like
-
QZC50-76/36-CWF3 Automatic Thermoform Lid Making Machine
-
QZC50-76/36-CWF3 Automatic Thermoform Plastic Lid Making Machine
-
QZC50-76/36-CWF3 Full Automatic Plastic Cover Making Machine
-
QZC50-76/36-CWF3 Automatic Plastic Egg Tray Making Machine
-
QZC50-76/36-CWF3 Automatic High Speed Thermoforming Machine
-
Automatice Cutting and Stacking Machine
Product Details
Condition | New | Place of Origin | Guangdong, China | |
Brand Name | MengXing | Model Number | QZC50-76/36-CWF |
Product Description
Specifications
1,fully automatic forming,2,fully computerize
3,cutting,stacking in line.

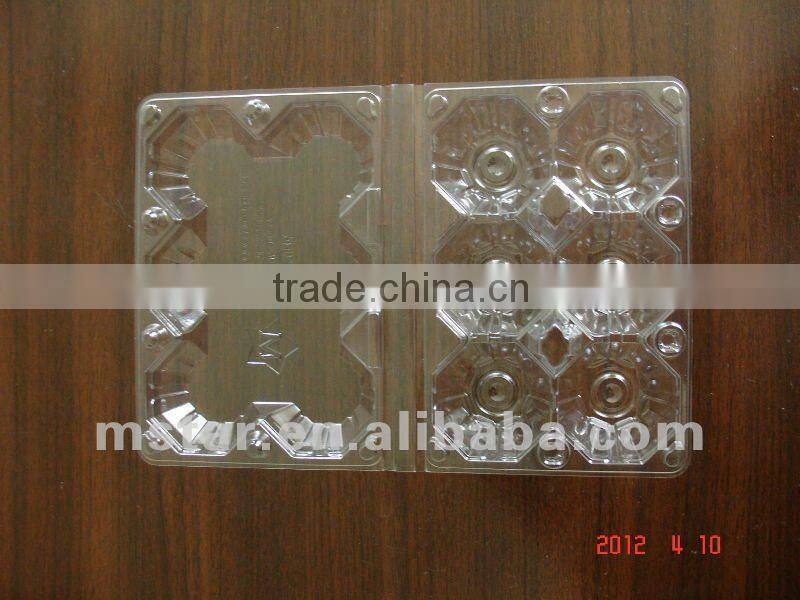

egg box making machine
Function :
The egg box making machine is designed to produce all kinds of plastic products , It’s fully automatic forming , cutting in line , stacking , edge rewindering .
Feature :
1. Mechancial , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stakcing .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper Heater , Four Section Heating .
7. Heater with Intellectual Temperature Control System , automatic supply the heating,
Individual Heater Control , Touch Screen Digitial Input , Mini-adjust & Precision and
Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .
It won’t effect by outter voltage , lower power consumption , longer life of far infrared
ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic Rewindering .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working Labout .
Technical parameters:
Sheet Width (mm) | 500-760 | |
Sheet Thickness (mm) | 0.2-1.5 | |
Max Roll Sheet (mm) | 600 | |
Forming Mold Stroke (mm) | 2×155 | |
Cutting Mold Stroke (mm) | 155 | |
Cutting Base Stroke (mm) | Max 100 | |
Max Forming Area (mm2) | 720×360 | |
Max Forming Depth / Height (mm) | 80/50 | |
Max Cutting Force(kgf) | 30000 | |
Working Capacity ( Cycle / min) | 4-18 ( Max Pacity is 18 Cycler / Per Min ) | |
Forming Cooling | Water Cooling | |
Air Source | Air (m3/ min) | ≥5 |
Aire Pressure (MPa) | 0.8 | |
Vacuum Pump | Busch R5 0040 | |
Power | 3 Phaser 4 Line 380V50Hz | |
Heater (kw) | 43.2 | |
Max Power (kw) | 49.4 | |
Max Dimension (L×W×H) (mm) | 7320×2100×2380 | |
Max Weight (kg) | ≈7500 |
Specification :
PLC | Taiwan Delta |
Touch Screen Monitor ( 10.4″inch /Color ) | Taiwan Delta |
Feeding Servo Motor(3.0kw) | Taiwan Delta |
Stacking Servo Motor (1.5kw) | Taiwan Delta |
Heater (72PCS ) Heater | GERMAN |
Solid State Relay (72 PCS ) | CHINA |
Contactor | Germany Siemens |
Thermo Relay | Germany Siemens |
Relay | JAPAN Omron |
Vacuum Pump | Busch R5 0040 |
Pneumatic | JAPAN SMC |
Cylinder | CHINA |
