Specifications
wifi booster signal amplifier1:Antenna Interface:RP-SMA Male
2: High receiving sensitivity and high transmitting power
wifi booster high frequency 2.5w indoor wifi booster for wireless device
1. 2 years warranty
2.Easy install, technical guide
Specification should care about
| Model No | KW34-WIFI | ||
| Operating frequency | 2400-2500MHz | ||
| Operating mode | TDD (Time-division duplex) | ||
| Signal standard | IEEE 802.11b/g/n | ||
| Minimum input power | 3~20dBm | ||
| Maximum output power | 9~13dBm | ||
| Uplink gain | 15±1dB | ||
| Downlink gain | 13dB - 17dB adjustable | ||
| (8dB attenuation range in 1dB steps) | |||
| Noise figure | ≤2.5dB | ||
| Delay | <1uS | ||
| Operating temperature | -25°C to + 60°C | ||
| Weight | 0.5kg | ||
| Size | 60 * 26* 18mm | ||
| AP/Router Interface | SMA Female | ||
| Antenna Interface | RP-SMA Male |

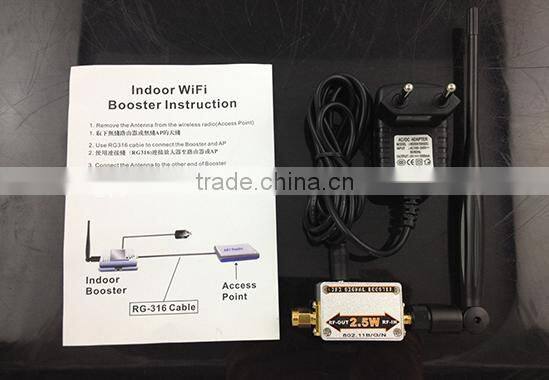

Instructions :
1: Connect Antenna to the Wi-Fi Booster.
Caution: The Booster antenna interface can only connect antenna, Don’t connect to any other wireless products in any case, otherwise it will result in equipment malfunction or damage.
2: Connect Wireless AP/Router or Wireless Network Card to the Wi-Fi Booster.
Tips: Users can also use other shielded cables to connect, but the cable length should be as short as possible, preferably not exceeding 3m.
3: Power up the Wi-Fi Booster.
At first, the Light of the LED is very dark. When the data is being transmitted, the light will become very bright. The more dense data transmission, the more bright light.
Caution: Before Power up the Wi-Fi Booster, you must Power up the AP/Router first.
4: Adjust the Antenna position and angle, make the Wi-Fi Booster achieve the best performance.
The adjustment method of the Downlink Gain :
Attention
1: The default Downlink gain is 13dB, It is not the higher the better, You must ensure that the final transmit power must not be larger than 36dBm (4w).
2: The Downlink gain is too high may cause the booster not work correctly, The wireless link cannot be successfully connected, or even lead to the booster damage.
3: You need to reduce the Downlink gain when it's combined with a high-power AP/Router.
4: You need to increase the Downlink gain when it's combined with a low-power AP/Router.
