Specifications
long distance coverage High power wifi amplifier1:Antenna Interface:RP-SMA Male
2.2.4-2.49ghz.
3.full sets.

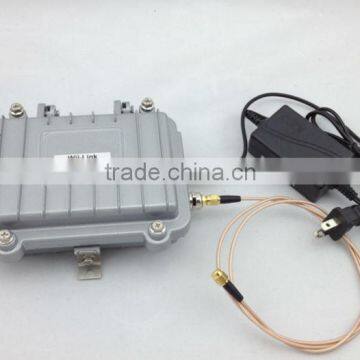

4W wifi amplifier,outdoor wifi amplifier cover 3 kilometer wifi amplifier
| Operating frequency | 2400-2483.5MHz |
| Operating mode | TDD (Time-division duplex) |
| Signal standard | IEEE 802.11b/g/n |
| Minimum input power | 3dBm |
| Maximum output power | 36 dBm(4w) |
| Uplink gain | 15±1dB |
| Downlink gain | 10dB - 17dB adjustable |
| (8dB attenuation range in 1dB steps) | |
| Noise figure | ≤ 2.5dB |
| Delay | <1uS |
| Operating temperature | 25°C to + 60°C |
| Weight | 0.6kg |
| AP/Router Interface | SMA Female |
| Antenna Interface | RP-SMA Male |
Instructions :
1: Connect Antenna to the Wi-Fi Booster.
Caution: The Booster antenna interface can only connect antenna, Don’t connect to any other wireless products in any case, otherwise it will result in equipment malfunction or damage.
2: Connect Wireless AP/Router or Wireless Network Card to the Wi-Fi Booster.
Tips: Users can also use other shielded cables to connect, but the cable length should be as short as possible, preferably not exceeding 3m.
3: Power up the Wi-Fi Booster.
At first, the Light of the LED is very dark. When the data is being transmitted, the light will become very bright. The more dense data transmission, the more bright light.
Caution: Before Power up the Wi-Fi Booster, you must Power up the AP/Router first.
4: Adjust the Antenna position and angle, make the Wi-Fi Booster achieve the best performance.
Attention
1: The default Downlink gain is 13dB, It is not the higher the better, You must ensure that the final transmit power must not be larger than 36dBm (4w).
2: The Downlink gain is too high may cause the booster not work correctly, The wireless link cannot be successfully connected, or even lead to the booster damage.
3: You need to reduce the Downlink gain when it's combined with a high-power AP/Router.
4: You need to increase the Downlink gain when it's combined with a low-power AP/Router.
