Features:
1. ALC ensure output level stable and adjustable continuously.
2. Low power consumption and avoid to interference to BTS.
3. LED indicate and judge to signal level of uplink and downlink.
4. AGC and MAC function.
5. Customized band selective.
6. Compact design, to easy or and convenient installation.
2g/3g/4g signal booster/repeater,signal booster for 900+1800+2100mhz ,tri-band gsm repeater
LINTRATEK
WHY CHOOSE LINTRATEK?
· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Specification for Signal Repeater
| Specifications | |||
| Model No | KW23F-GDW | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range |
890~915/1710~1785/ 1920~1980MHz |
935~960/1805~1880/ 2110~2170mhz |
|
| Output Power | 23±2dBm | 23±2dBm | |
| Gain | 70±2dB | 70 ±2dB | |
| Bandwidth | Wide Band | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | ||
| Power Comsumption | < 5W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 270*350*60 | ||
| Weight | < 6.5Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
Signal Booster Full Sets
- · 1 - Outdoor antenna linke LPDA antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7 - 10 meters outdoor cable and 2 meter indoor cable

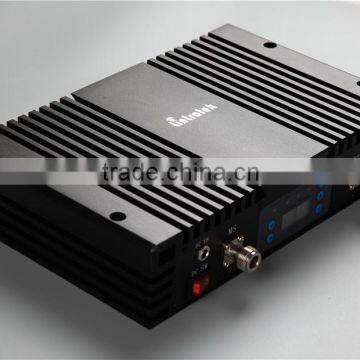

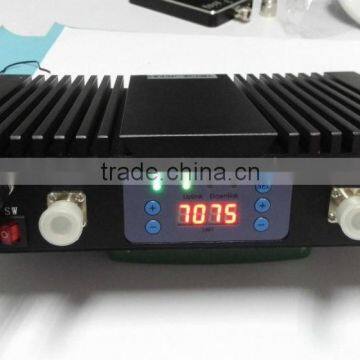

Product Show
2g/3g/4g signal booster/repeater,signal booster for 900+1800+2100mhz ,tri-band gsm repeater
Signal Repeater Installation
2g/3g/4g signal booster/repeater,signal booster for 900+1800+2100mhz ,tri-band gsm repeater
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
2g/3g/4g signal booster/repeater,signal booster for 900+1800+2100mhz ,tri-band gsm repeater
