triple band repeater with ALC function gsm/dcs/wcdma 2g/3g/4g signal booster/repeater
LINTRATEK
WHY CHOOSE LINTRATEK?
· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Specification for Signal Repeater
| Specifications | |||
| Model No | KW23F-GDW triple band repeater | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range |
890~915/1710~1785/ 1920~1980MHz |
935~960/1805~1880/ 2110~2170mhz |
|
| Output Power | 23±2dBm | 23±2dBm | |
| Gain | 70±2dB | 70 ±2dB | |
| Bandwidth | Wide Band | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | ||
| Power Comsumption | < 5W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 270*350*60 | ||
| Weight | < 6.5Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
Signal Booster Full Sets
- · 1 - Outdoor antenna like panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7 - 10 meters outdoor cable and 2 meter indoor cable

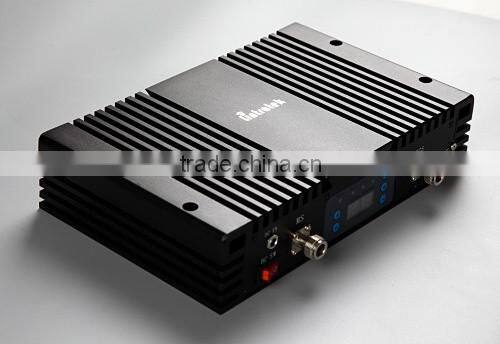

Product Show
triple band repeater with ALC function gsm/dcs/wcdma 2g/3g/4g signal booster/repeater
Signal Repeater Installation
triple band repeater with ALC function gsm/dcs/wcdma 2g/3g/4g signal booster/repeater
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
triple band repeater with ALC function gsm/dcs/wcdma 2g/3g/4g signal booster/repeater
