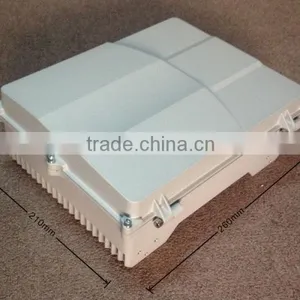

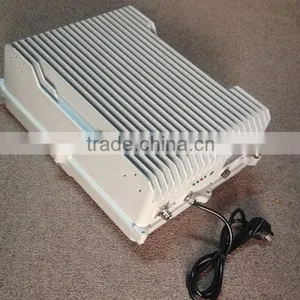

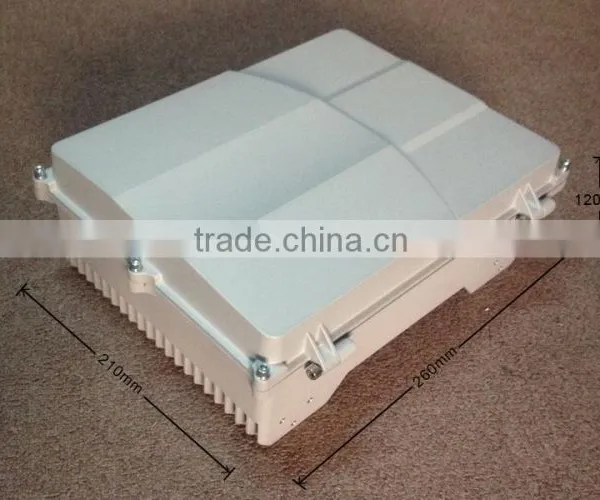

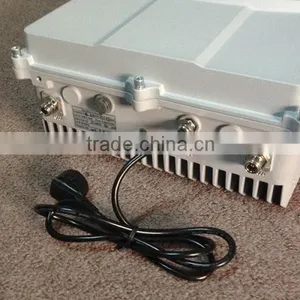

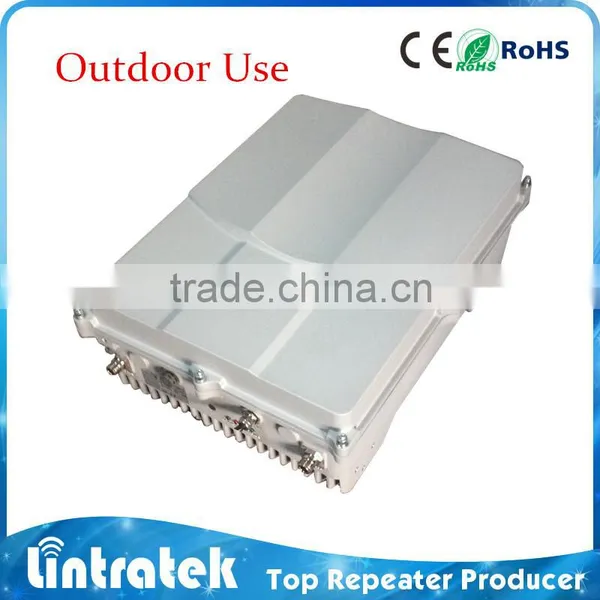

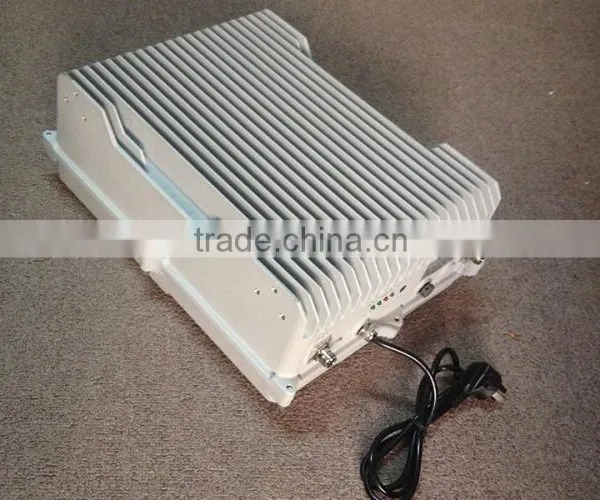

1900mhz pcs 90dB 40dBm repeater large coverage mobile signal amplifier for outdoor use
| Repeater Feature: |
| 1) Provide quick coverage solution for small signal weak & block zones,reduce drop/off calls. |
| 2) Compact size, low consumption, easy installation, great cover. |
| 3) Cover more than 2000 m² without block or obstruct. |
| 4) Reduce cellphone transmit pow |
LINTRATEK
WHY CHOOSE LINTRATEK?
· Excellent Quality
· Exquisite Appearance
· High Technology
· Considerate Service
Specification for Signal Repeater
| Specification | |||
| From: Vita Wong Tel/Whatsapp: +8613229223812 | |||
| Model No | KW40A - WCDMA | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | WCDMA | 1920~1980 MHz | 2110 ~ 2170 MHz |
| GSM | 890~915 MHz | 935 ~ 960 MHz | |
| CDMA | 824~849 MHz | 869 ~ 894 MHz | |
| PCS | 1850~1910 MHz | 1930~1990 MHz | |
| Output Power | 37 ±2dBm | 40 ±2dBm | |
| Gain | 85 ±3 dB | 90 ±3 dB | |
| Automatic Gain Control | >20dB | ||
| Manual Gain Control | ≤31dB | ||
| Bandwidth | Wide Band | ||
| Ripple in Band | ≤3dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤ 1.5 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC 165–265V , 50Hz | ||
| Power Comsumption | ≤ 20 W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 700*452*313 (mm) | ||
| Weight | 13.5 Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP55 | ||
| Humidity | < 90% | ||
| Operating Temperature | -30℃ ~ 55℃ | ||
Signal Booster Full Sets
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 - Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7 - 10 meters outdoor cable and 2 meter indoor cable

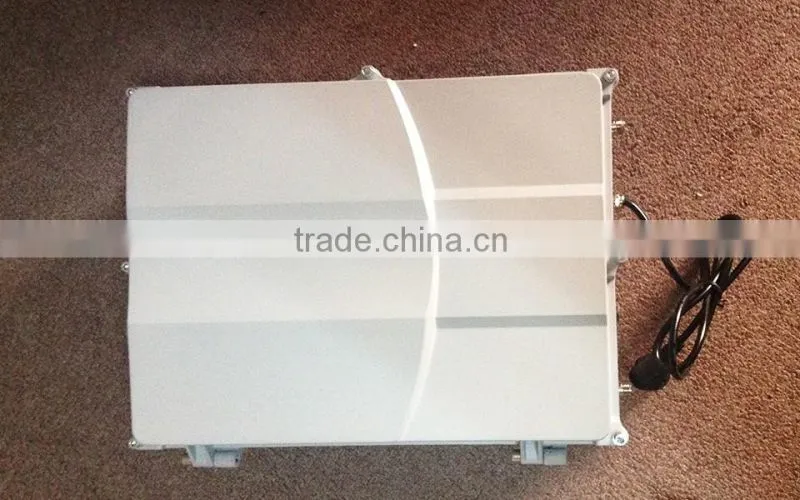

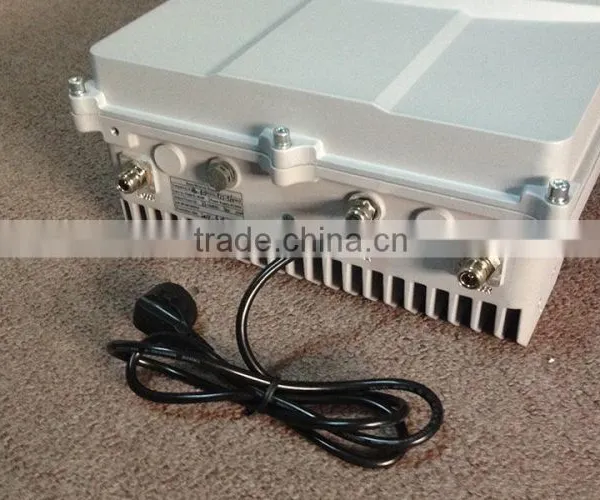

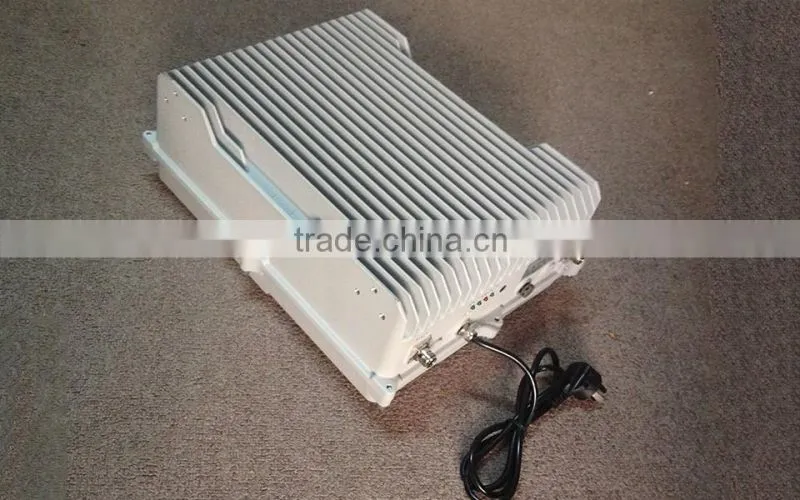

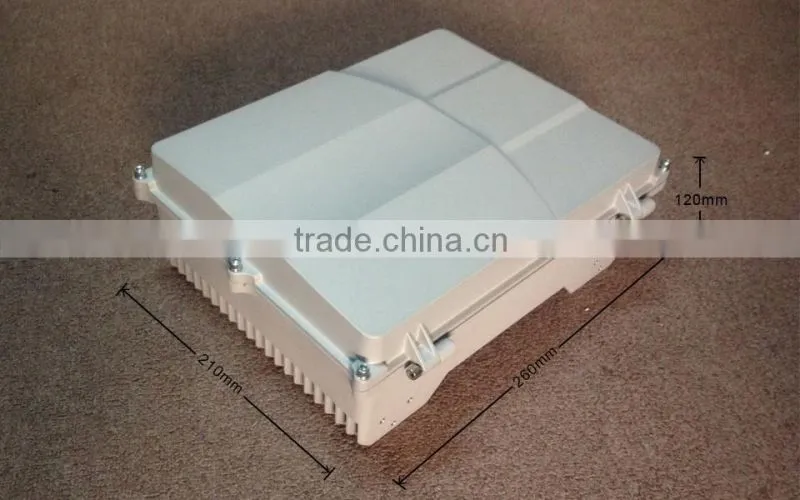

Product Show
Trade process:
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
