Mobile Signal Booster Single Band 1900mhz Pcs Network Solution Repeater

Name: Mobile Signal Booster Single Band 1900mhz Pcs Network Solution Repeater
Brand: Lintratek
SKU: 109533753

Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Lintratek

Model Number:

KW17A-PCS

Foshan Lintratek Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGDONG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Lintratek

Model Number KW17A-PCS

Specifications

high quality repeater with CE,ISO
ver 200sqm
2.mini size.1900mhz
3.home use.east install.

Product Description

mobile signal booster single band 1900mhz pcs network solution repeater

Why do you need to buy repeater/booster?

Specification should care about :

Model No		KW17E-PCS
Parameter data		Uplink	Downlink
Frequency Range		UL:1850-1910mhz	DL:1930-1990mhz
Output Power		17 ±2dBm	17 ±2dBm
Gain		65 dB	65 dB
Bandwidth		Wide Band
Automatic Gain Control		>20dB
Ripple in Band		≤5dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤3
MTBF		>50000 hours
Power Supply		AC:90~265V, 50/ 60Hz;DC:12V 3A
Power Consumption		< 20W
Impedance		50 ohm
Mechanical Specification

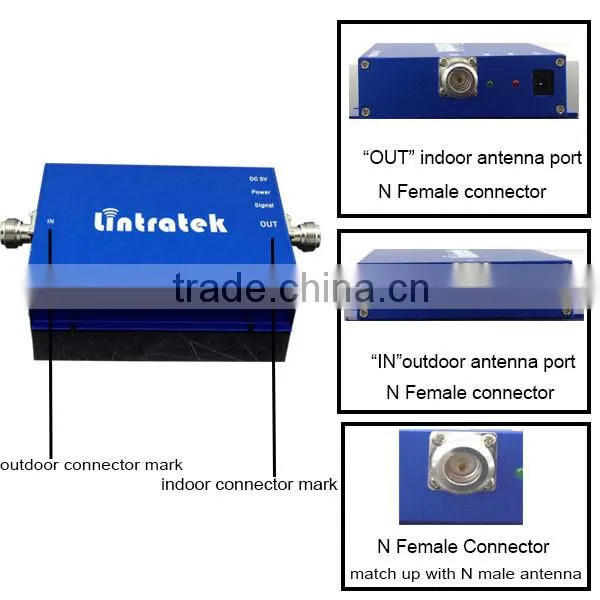

RF Connector		N-Female
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		17610044mm
Weight		0.7Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10°C ~ 55°C
