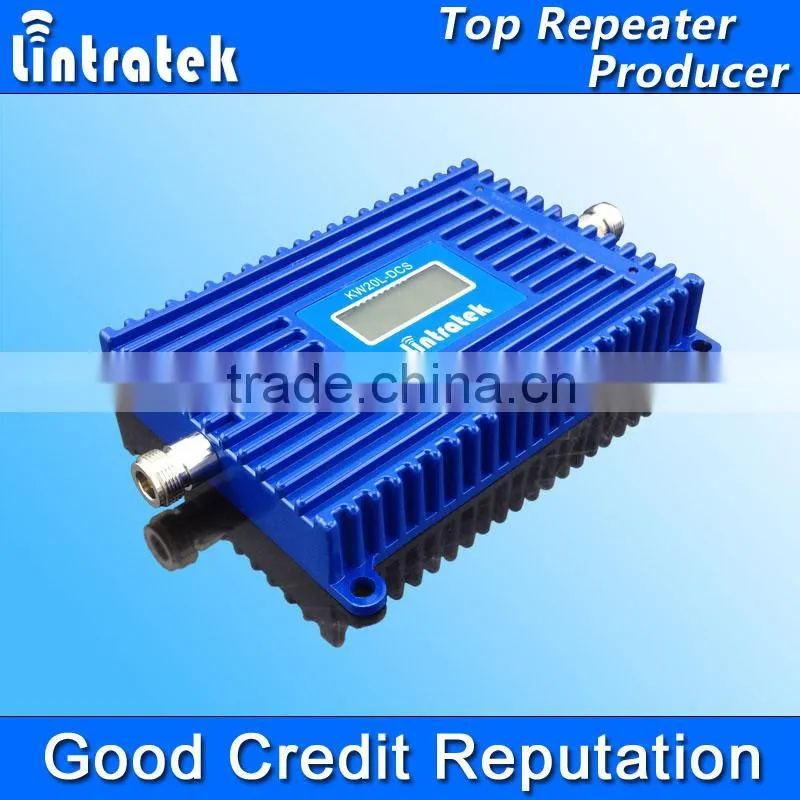

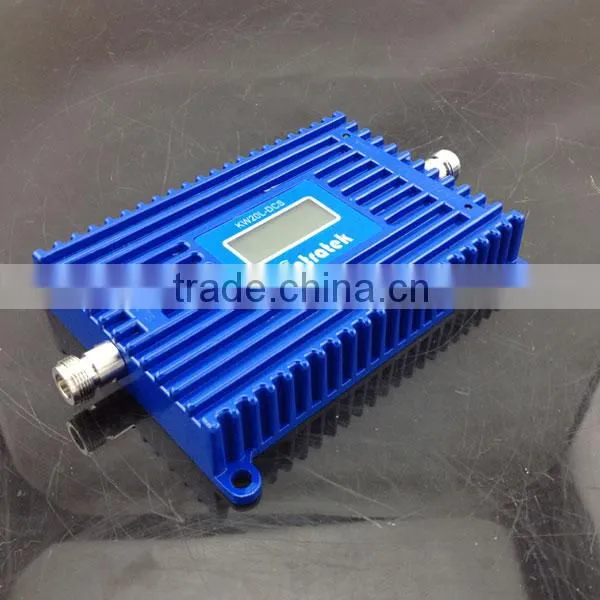

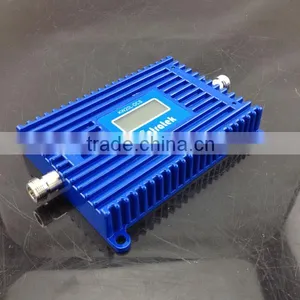

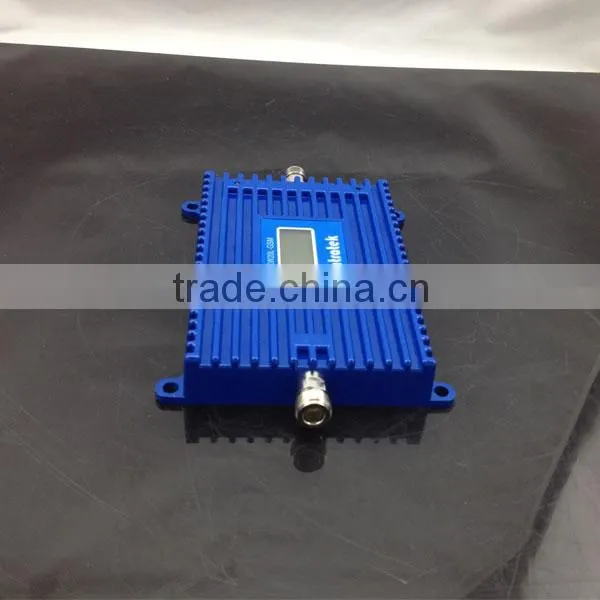

factory supply OEM/ODM PCS signal Repeater 1900 Mhz Cell Phone Mobile Signal Booster

Specifications

booster with CE,ISO
1. Cover 300-1000sqm
2. lcd screen AGC funtion
3. high quality,2 years warranty.

factory supply OEM/ODM PCS signal Repeater 1900 Mhz Cell Phone Mobile Signal Booster

Why do you need to buy repeater/booster?



Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody's life.



Unfortunately, there are still some places where they can find themselves "out of coverage" ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:



• · Parking lots, tunnels
• · Big stores, office buildings
• · Cars, boats etc.
• · House in remote areas



How can repeater bring your mobile phone better signal?



•The outside antenna catches low signal from operator servicer's base station and delivers it to cell phone repeater through the connection cable (coax).



•After the signal is accepted by the mobile repeater, this device amplifies it.



•Then this amplified signal goes through the connection cable (coax) to the inside antenna.



•And after that, the amplified signal transmits to your cell phone.



• Finally, your cell phone will get good signal, never on and off







A regular cell phone repeater consists of: (full kit)



• · 1 - Outdoor antenna like YAGI antenna or panel antenna
• · 2 - Indoor Omni ceiling antenna
• · 3 – Power adapter
• · 5 - User manual
• · 6 - Cell phone repeater
• · 7. 10 meters outdoor cable and 1 meter indoor cable



Model No		KW20L-GSM             KW20L-CDMA                                                     KW20L-DCS           KW20L-WCDMA
Parameter data		Uplink	Downlink
Frequency Range	CDMA & GSM850	824~849 MHz	869 ~ 894 MHz
	GSM	890~915 MHz	935 ~ 960 MHz
	DCS	1710~1785 MHz	1805 ~ 1880 MHz
	PCS	1850~1910 MHz	1930 ~ 1990 MHz
	AWS	1710~1755 MHz	2110 ~ 2155 MHz
	WCDMA	1920~1980 MHz	2110 ~ 2170 MHz
Output Power		15 ±2dBm	20±2dBm
Gain		65 ±2 dB	70±2dB
Bandwidth		25M/25M/75M/60M/45/60M
Automatic Gain Control		≥20dB
Ripple in Band		GSM≤5dB,DCS≤6dB,WCDMA≤5dB,PCS≤6dB
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
VSWR		≤3
MTBF		>50000 hours
Power Supply		AC:100~240V, 50/ 60Hz;DC:5V 1A
Power Comsumption		< 3W
Impedance		50 ohm
Mechanical Specification

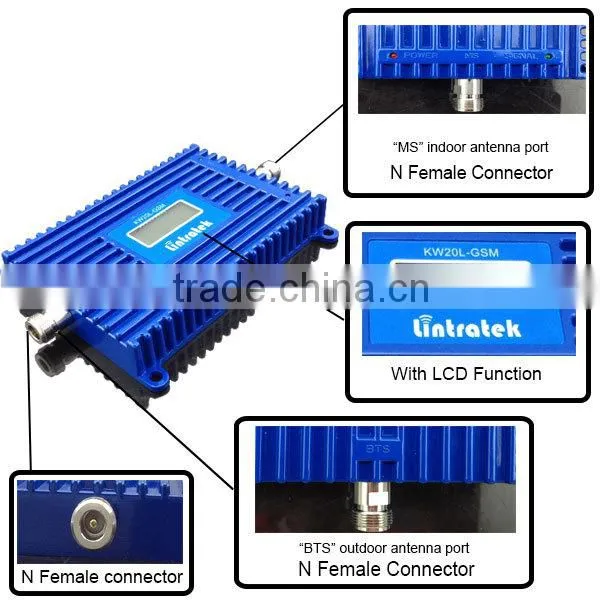

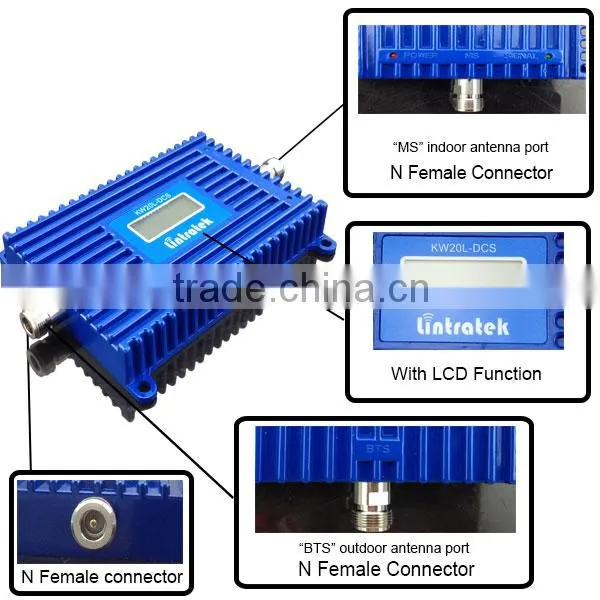

RF Connector		N-Female N
Dimensions (D*W*H )		200*110*25(mm)
Cooling		Heatsink Convection cooling
Net weight		< 1Kg
Packing size (D*W*H )		250*240*65(mm)
Gross weight		< 1.2Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10℃ ~ 55℃



Mobile repeater packing photo:







Trade Info:

MOQ:5pcs, sample order is welcome

Trade terms: EXW, FOB, CIF

Payment terms: T/T, L/C, western union, paypal, escrow etc.

Payment condition: 30% deposit to confirm production, balance clear before delivery.



Delivery time: 2-5 working days for sample order, 10-30 working days for bulk order

Packing: Neutral carton

Shipping: by sea, by air and by express delivery



Trading process:







After- Sales Service



We have 24 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.









Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
