Specifications
signal Extender with CE,ISO1. Cover 300-1000sqm
2. lcd screen AGC funtion
3. high quality,2 years warranty.

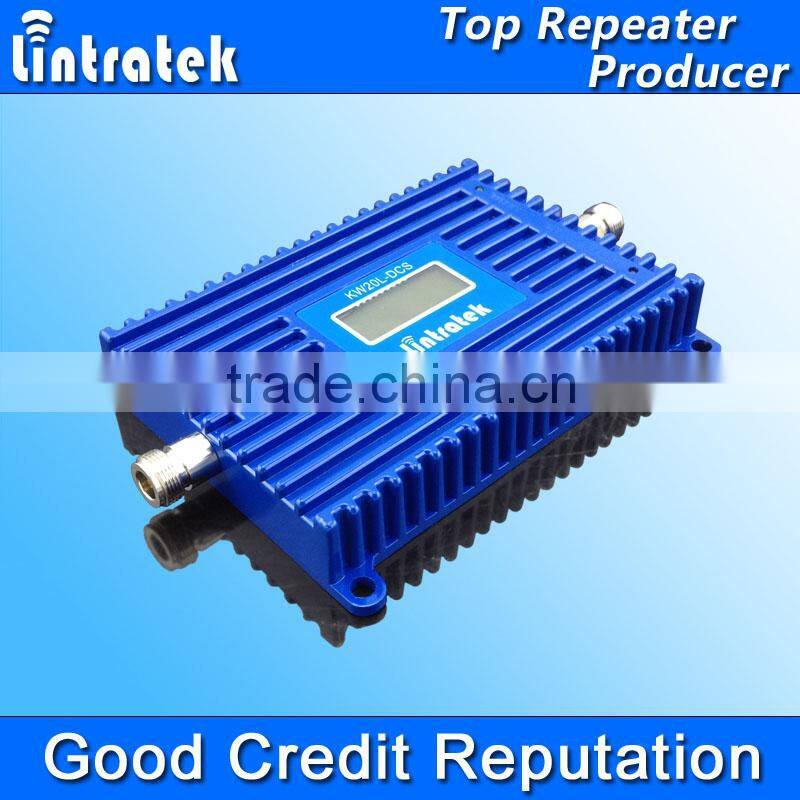

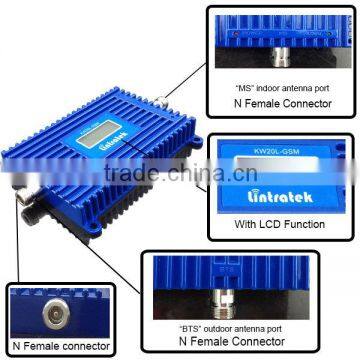

Mobile signal Extender 1900mhz signal transmitter Mobile signal booster PCS 1900 Repeater mobile signal amplifier
Why do you need to buy repeater/booster?
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody's life.
Unfortunately, there are still some places where they can find themselves "out of coverage" ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- · Parking lots, tunnels
- · Big stores, office buildings
- · Cars, boats etc.
- · House in remote areas
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer's base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off
A regular cell phone repeater consists of: (full kit)
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7. 10 meters outdoor cable and 1 meter indoor cable
| Model No | KW20L-GSM KW20L-CDMA KW20L-DCS KW20L-WCDMA | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | CDMA & GSM850 | 824~849 MHz | 869 ~ 894 MHz |
| GSM | 890~915 MHz | 935 ~ 960 MHz | |
| DCS | 1710~1785 MHz | 1805 ~ 1880 MHz | |
| PCS | 1850~1910 MHz | 1930 ~ 1990 MHz | |
| AWS | 1710~1755 MHz | 2110 ~ 2155 MHz | |
| WCDMA | 1920~1980 MHz | 2110 ~ 2170 MHz | |
| Output Power | 15 ±2dBm | 20±2dBm | |
| Gain | 65 ±2 dB | 70±2dB | |
| Bandwidth | 25M/25M/75M/60M/45/60M | ||
| Automatic Gain Control | ≥20dB | ||
| Ripple in Band | GSM≤5dB,DCS≤6dB,WCDMA≤5dB,PCS≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Dimensions (D*W*H ) | 200*110*25(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 1Kg | ||
| Packing size (D*W*H ) | 250*240*65(mm) | ||
| Gross weight | < 1.2Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||

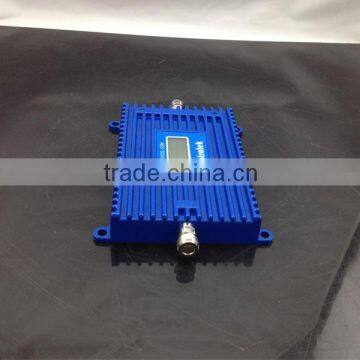

Mobile repeater packing photo:
Trade Info:
MOQ:5pcs, sample order is welcome
Trade terms: EXW, FOB, CIF
Payment terms: T/T, L/C, western union, paypal, escrow etc.
Payment condition: 30% deposit to confirm production, balance clear before delivery.
Delivery time: 2-5 working days for sample order, 10-30 working days for bulk order
Packing: Neutral carton
Shipping: by sea, by air and by express delivery
Trading process:
After- Sales Service
We have 24 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
