Product Show
| Specifications | |||

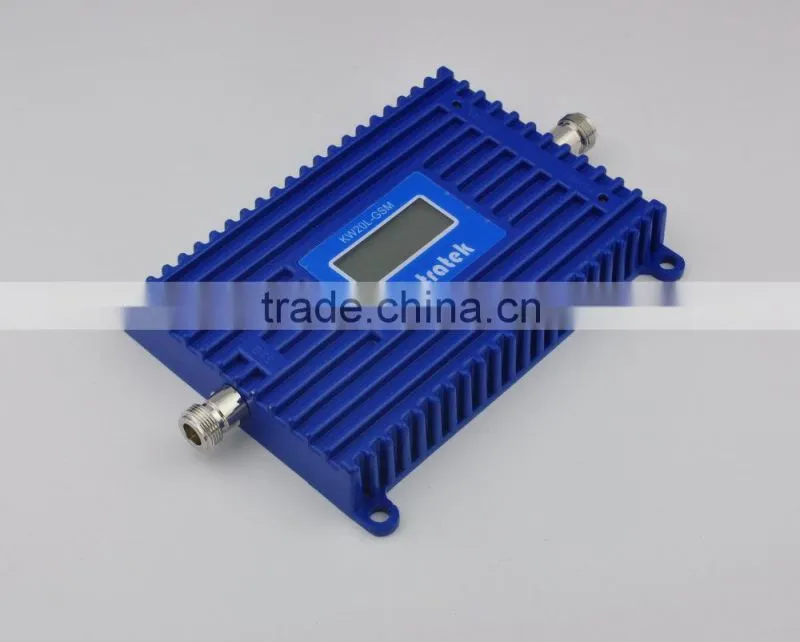

| Model No | KW20L-GSM mobile signal receiver | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 1710~1785MHz | 1805~1880MHz |
|
| Output Power | 20±2dBm | 20±2dBm | |
| Gain | 70±2dB | 70±2dB | |
| Bandwidth | 25M+75M/25M+60M | ||
| Ripple in Band | ≤5dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | ||
| Power Comsumption | <8W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D x W xH ) | 200*110*25 mm | ||
| Weight | < 0.85Kg | ||
| Installation Type | Wall Installation mobile signal receiver | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
mobile signal receiver
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- · Parking lots, tunnels
- · Big stores, office buildings
- · Cars, boats etc.
- · House in remote areas
Mobile phone booster Full Sets
-
· 1 - Mobile signal receiver
- · 2 - Indoor Omni ceiling antenna
-
· 3 - Outdoor antenna like YAGI antenna or panel antenn
- · 5 - User manual
-
· 6 - Power adapter
- · 7 - 10 meters outdoor cable and 2 meter indoor cable
Signal Repeater Installation (Take KW20L-GD repeater as an example)
Trade process:
Shipping
- 1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
- 2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
- 3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
- 4. Normally, it will take around 3~7days from China to destination country. Please note that some remote place will need 1-3 days more.
- Delivery:
- 1. Sample within 1-2 days
- 2. Wholesales Orders : 3-5days according various quantities
- 3. OEM 5-10 days after receiving your sample confirmation and payment
- Warranty:
- 1. 2 years warranty for the mobile signal receiver products.
- 2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free
- 3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new mobile signal receiver instead.
WHY CHOOSE LINTRATEK?
· Excellent Quality
· Exquisite Appearance
· High Technology
· Considerate Service
After - Sales Service
We have 24 months quality guarantee for all customers and all mobile signal receiver, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
FAQ and Sollution
F:After installed booster signal not be very good, indoor signal coverage very small. |
|
1. Adjust outdoor antenna’s location and direction. 2. Check whether cable connected well. 3. Put more higher receiving antenna’s position, which can received more good signal. 4. Change another bigger power booster. 5. Change another high gain receiving antenna. |
F: Cellphone signal full bar, but communication quality bad. |
|
Too closer distance of indoor and outdoor antenna, need more separation far distance away between antennas. |
F: After installed booster not only signal be good, but also more bad. |
|
Too closer distance of indoor and outdoor antenna, need more separation far distance away between antennas. |
F: Works good for long time, suddenly signal bad. |
|
1. Check outdoor cable connectors whether flooding water. 2. Check power lights whether working normal. 3. If cable not flooding water and power light working normal then the booster could be problem need send back factory repair. |
mobile signal receiver
